Seco DNMU110404-MF2 TK0501 Turning Insert
The price shown is for the pack.
Available

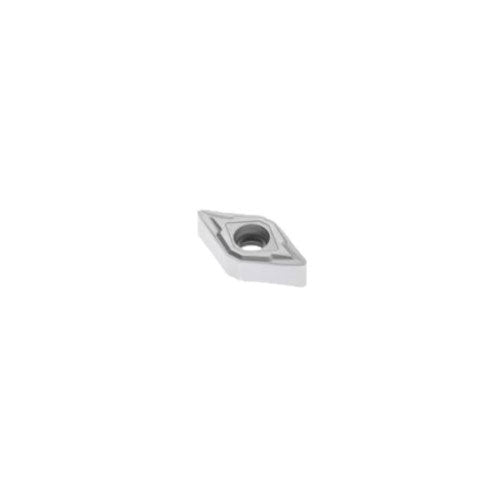

Genuine Seco 55° rhombic (diamond) turning insert, Grade TK0501 with MF2 chipbreaker.
Key Specifications
| Grade | TK0501 |
|---|---|
| Insert Shape | 55° rhombic (diamond) (ISO shape code D) |
| Chipbreaker | MF2 |
| Insert Details | D shape code. U insert type, negative insert with hole and chip-breaker on both faces for tool holders with pin lock only. TK0501 insert grade. |
About Grade TK0501
Duratomic® grade. An extremely wear-resistant optimized grade choice for machining of grey cast iron and easier ductile cast irons. Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).
About the MF2 Chipbreaker
First choice for finishing with negative inserts. Suitable for chip control at depths of cut down to 0,25 mm, provided that the feed rate is in excess of 0,25 mm/rev. Good capacity for medium rough machining. Indicative machining range: f = 0,10–0,40 mm/rev, ap = 0,2–3,0 mm.
About Seco Turning Inserts
Anything is possible when it comes to our broad selection of general turning grades and chipbreakers. Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications. Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Turning Insert DNMU Insert Style - MF2 Grade TK0501: DNMU110404-MF2 TK0501
SKU: A0116931 | Model: 03062527
Seco Turning Insert D Shape Code 4.76 x 0.4 x 9.53mm U Insert Type - MF2 Grade TK0501 ± 0.13/± 0.05mm Tolerance DNMU110404-MF2,TK0501 10pcs
Turning Insert DNMU Insert Style - MF2 Grade TK0501
D shape code.
U insert type, negative insert with hole and chip-breaker on both faces for tool holders with pin lock only.
TK0501 insert grade.
TK0501 Insert Grade
Duratomic® grade.
An extremely wear-resistant optimized grade choice for machining of grey cast iron and easier ductile cast irons.
Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).
MF2 Chipbreaker Programme
First choice for finishing with negative inserts.
Suitable for chip control at depths of cut down to 0,25 mm, provided that the feed rate is in excess of 0,25 mm/rev.
Good capacity for medium rough machining.
Indicative machining range: f = 0,10–0,40 mm/rev, ap = 0,2–3,0 mm.
About Seco Turning Insert
Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
to boost the productivity and tool life in your turning applications.
Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
