Seco DNMU110404-MF5 TP2501 Turning Insert
The price shown is for the pack.
Available
Genuine Seco 55° rhombic (diamond) turning insert, Grade TP2501 with MF5 chipbreaker. This is the DNMU insert style in grade TP2501 (Carbide CVD), with the MF5 chipbreaker. It is used on CNC and manual lathes for turning. This page lists 2 options.
Key Specifications
| Grade | TP2501 |
|---|---|
| Substrate / Coating | Carbide CVD |
| Insert Shape | 55° rhombic (diamond) (ISO shape code D) |
| Chipbreaker | MF5 |
| Insert Details | D shape code. U insert type, negative insert with hole and chip-breaker on both faces for tool holders with pin lock only. TP2501 insert grade. |
About Grade TP2501
Carbide CVD. Duratomic® grade. Designed with high wear resistance and edge strength applicable in a wide range of turning applications in steels as well as many stainless steels and cast irons. Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).
About the MF5 Chipbreaker
Chipbreaker intended for medium finishing of steel and stainless steel at high feeds. Very easy cutting and open geometry. Indicative machining range: f = 0,2–0,8 mm/rev, ap = 0,2–2,7 mm.
About Seco Turning Inserts
Anything is possible when it comes to our broad selection of general turning grades and chipbreakers. Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications. Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Turning Insert DNMU Insert Style - MF5 Grade TP2501: DNMU110404-MF5 TP2501
SKU: A0117830 | Model: 02960724

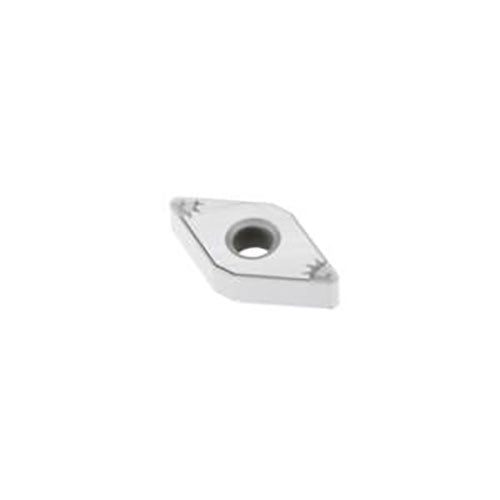

Seco Turning Insert D Shape Code 4.76 x 0.4 x 9.53mm U Insert Type - MF5 Grade TP2501 ± 0.13/± 0.05mm Tolerance DNMU110404-MF5,TP2501 10pcs
Turning Insert DNMU Insert Style - MF5 Grade TP2501
D shape code.
U insert type, negative insert with hole and chip-breaker on both faces for tool holders with pin lock only.
TP2501 insert grade.
TP2501 Insert Grade
Duratomic® grade.
Designed with high wear resistance and edge strength applicable in a wide range of turning applications in steels as well as many stainless steels and cast irons.
Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).
MF5 Chipbreaker Programme
Chipbreaker intended for medium finishing of steel and stainless steel at high feeds.
Very easy cutting and open geometry.
Indicative machining range: f = 0,2–0,8 mm/rev, ap = 0,2–2,7 mm.
About Seco Turning Insert
Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
to boost the productivity and tool life in your turning applications.
Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
