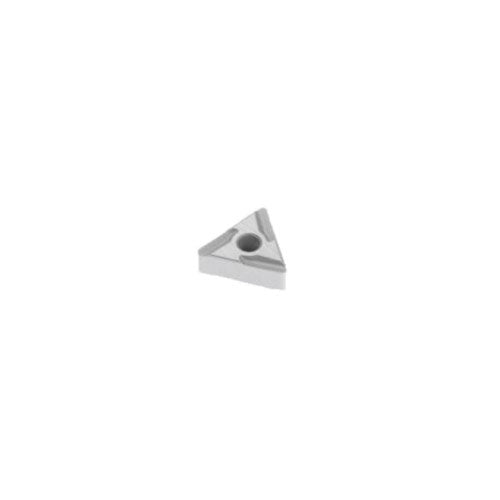

Seco Turning Insert T Shape Code 4.76 x 0.4 x 9.53mm G Insert Type - UX Left Grade TP2501 ± 0.13/± 0.05mm Tolerance TNMG160404L-UX,TP2501 10pcs

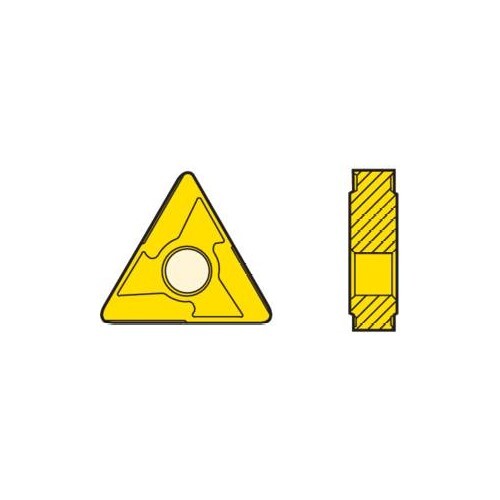

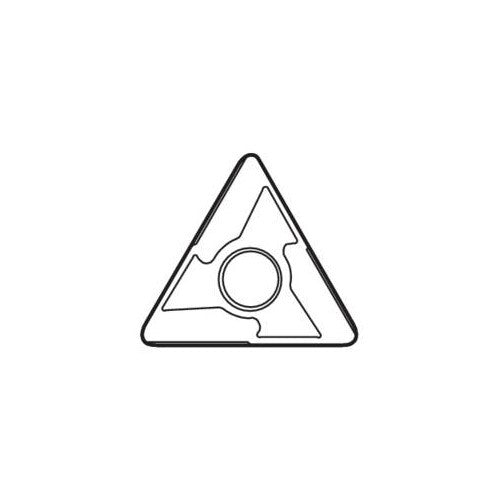

Turning Insert TNMG Insert Style - UX Grade TP2501

• T shape code.
• G insert type, with hole and chipbreaker on both faces
• TP2501 insert grade.

TP2501 Insert Grade

• Duratomic® grade.
• Designed with high wear resistance and edge strength applicable in a wide range of turning applications in steels as well as many stainless steels and cast irons.
• Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

UX Chipbreaker Programme

• Chipbreaker for negative inserts. Positive cutting rake with a sharp edge.
• Low cutting force. Suitable for slim components.
• Indicative machining range: f = 0,2–0,4 mm/rev, ap =1,0–6,0 mm.

About Seco Turning Insert

• Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
• Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
• To boost the productivity and tool life in your turning applications.
• Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
