Seco TNMG160404L-UX TS2500 Turning Insert
The price shown is for the pack.
Available

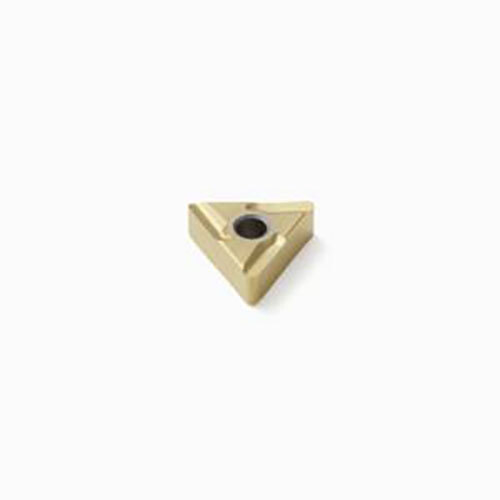

Genuine Seco triangular turning insert, Grade TS2500 with UX chipbreaker.
Key Specifications
| Grade | TS2500 |
|---|---|
| Insert Shape | triangular (ISO shape code T) |
| Chipbreaker | UX |
| Insert Details | T shape code. TS2500 insert grade. |
About Grade TS2500
Relatively hard micrograin grade for machining of superalloys and titanium in roughing applications and due to its design also applicable in a wide range of materials such as stainless steel. (Ti, Al)N + TiN.
About the UX Chipbreaker
Chipbreaker for negative inserts. Positive cutting rake with a sharp edge. Low cutting force. Suitable for slim components. Indicative machining range: f = 0,2–0,4 mm/rev, ap =1,0–6,0 mm.
About Seco Turning Inserts
Anything is possible when it comes to our broad selection of general turning grades and chipbreakers. Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications. Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Turning Insert TNMG Insert Style - UX Grade TS2500: TNMG160404L-UX TS2500
SKU: A0118348 | Model: 02615975

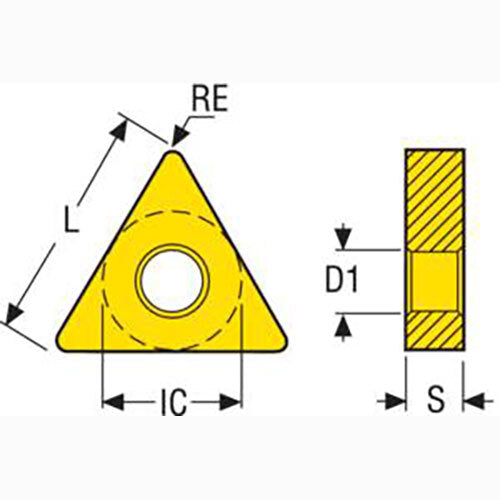

Seco Turning Insert T Shape Code 4.76 x 0.4 x 9.53mm G Insert Type - UX Left Grade TS2500 ± 0.13/± 0.05mm Tolerance TNMG160404L-UX,TS2500 10pcs
Turning Insert TNMG Insert Style - UX Grade TS2500
T shape code.
G insert type, with hole and chipbreaker on both faces
TS2500 insert grade.
TS2500 Insert Grade
Relatively hard micrograin grade for machining of superalloys and titanium in roughing applications and due to its design also applicable in a wide range of materials such as stainless steel.
(Ti, Al)N + TiN.
UX Chipbreaker Programme
Chipbreaker for negative inserts. Positive cutting rake with a sharp edge.
Low cutting force. Suitable for slim components.
Indicative machining range: f = 0,2–0,4 mm/rev, ap =1,0–6,0 mm.
About Seco Turning Insert
Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
To boost the productivity and tool life in your turning applications.
Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
