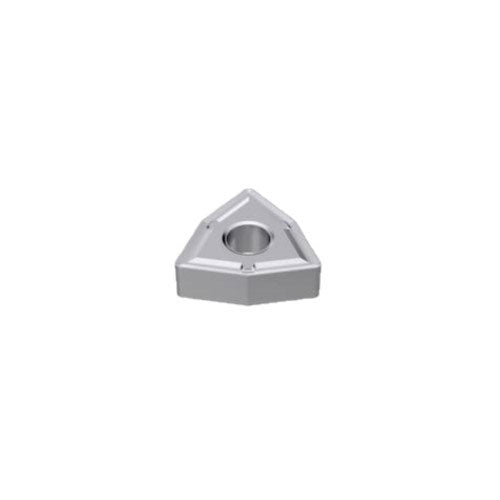

Seco Turning Insert W Shape Code 4.76 x 0.8 x 12.7mm G Insert Type - M4 Grade TK1501 ± 0.13/± 0.05mm Tolerance WNMG080408-M4,TK1501 10pcs

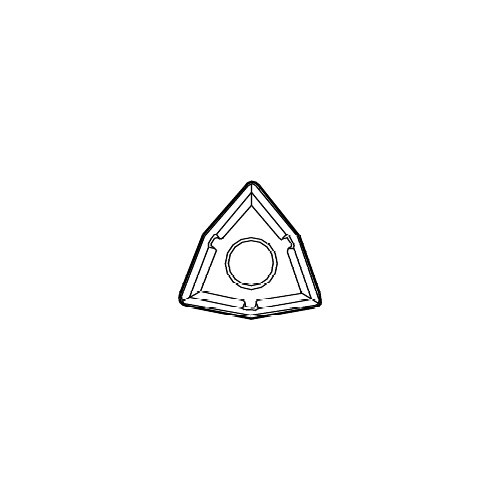

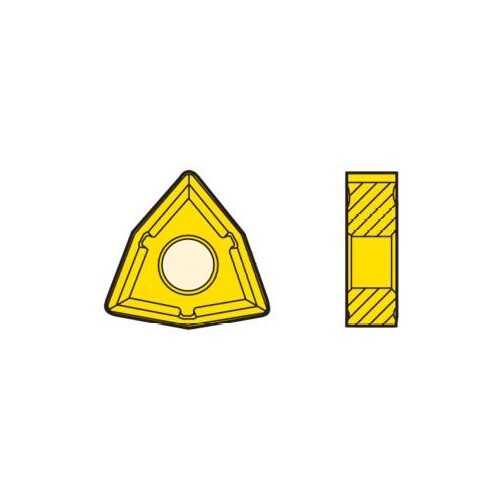

Turning Insert WNMG Insert Style - M4 Grade TK1501

• W shape code.
• G insert type, with hole and chip breaker on both faces.
• TK1501 insert grade.

TK1501 Insert Grade

• Duratomic® grade.
• A highly wear-resistant grade for cast irons in general as well as in steels.
• The grade is particularly capable in the machining of ductile (nodular) cast irons also in more demanding setups and interrupted cuts.
• Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

M4 Chipbreaker Programme

• Chipbreaker intended for cast iron.
• A positive rake angle with a narrow T-land gives low cutting forces.
• First choice for cast iron machining at high speeds.
• Indicative machining range: f = 0,1-0,7 mm/rev, ap = 0,2-0,7 mm.

About Seco Turning Insert

• Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
• Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
• to boost the productivity and tool life in your turning applications.
• Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
