Seco WNMG080412-M4 TK1501 Turning Insert
The price shown is for the pack.
Available

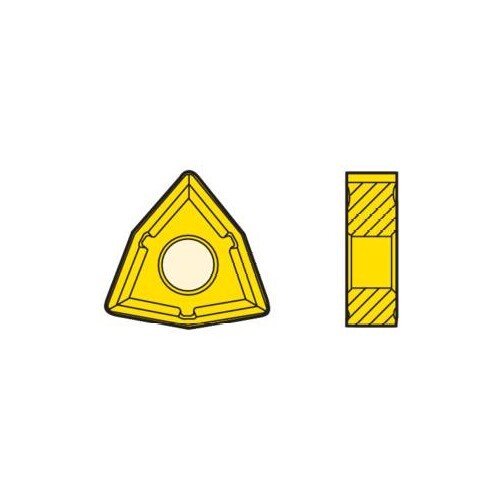

Genuine Seco 80° trigon turning insert, Grade TK1501 with M4 chipbreaker.
Key Specifications
| Grade | TK1501 |
|---|---|
| Substrate / Coating | Carbide CVD |
| Insert Shape | 80° trigon (ISO shape code W) |
| Chipbreaker | M4 |
| Insert Details | W shape code. G insert type, with hole and chip breaker on both faces. TK1501 insert grade. |
About Grade TK1501
Carbide CVD. Duratomic® grade. A highly wear-resistant grade for cast irons in general as well as in steels. The grade is particularly capable in the machining of ductile (nodular) cast irons also in more demanding setups and interrupted cuts. Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).
About the M4 Chipbreaker
Chipbreaker intended for cast iron. A positive rake angle with a narrow T-land gives low cutting forces. First choice for cast iron machining at high speeds. Indicative machining range: f = 0,1-0,7 mm/rev, ap = 0,2-0,7 mm.
About Seco Turning Inserts
Anything is possible when it comes to our broad selection of general turning grades and chipbreakers. Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications. Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Turning Insert WNMG Insert Style - M4 Grade TK1501: WNMG080412-M4 TK1501
SKU: A0117069 | Model: 03062814

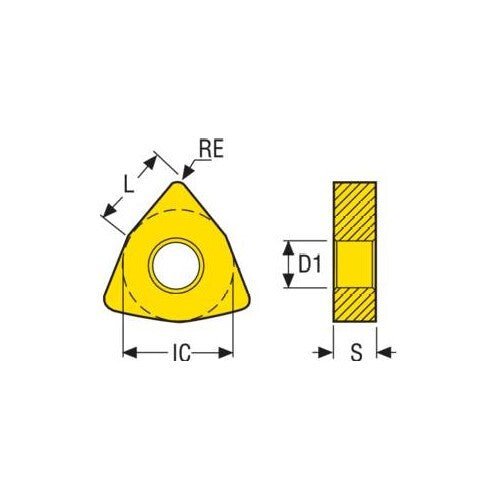

Seco Turning Insert W Shape Code 4.76 x 1.2 x 12.7mm G Insert Type - M4 Grade TK1501 ± 0.13/± 0.05mm Tolerance WNMG080412-M4,TK1501 10pcs
Turning Insert WNMG Insert Style - M4 Grade TK1501
W shape code.
G insert type, with hole and chip breaker on both faces.
TK1501 insert grade.
TK1501 Insert Grade
Duratomic® grade.
A highly wear-resistant grade for cast irons in general as well as in steels.
The grade is particularly capable in the machining of ductile (nodular) cast irons also in more demanding setups and interrupted cuts.
Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).
M4 Chipbreaker Programme
Chipbreaker intended for cast iron.
A positive rake angle with a narrow T-land gives low cutting forces.
First choice for cast iron machining at high speeds.
Indicative machining range: f = 0,1-0,7 mm/rev, ap = 0,2-0,7 mm.
About Seco Turning Insert
Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
to boost the productivity and tool life in your turning applications.
Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
