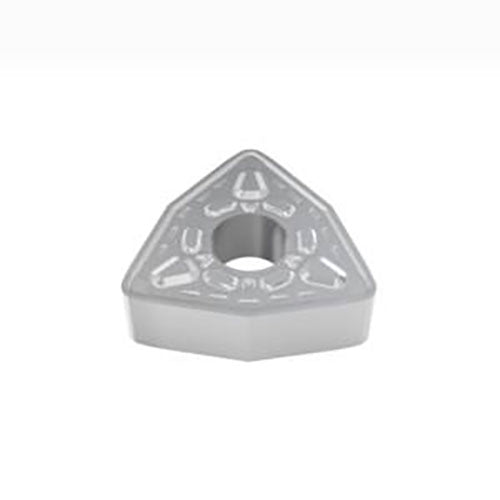

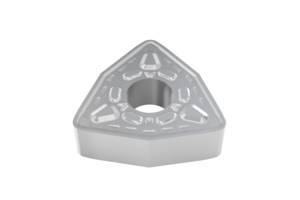

Seco WNMG080408W-M6 TP1501 Turning Insert
Available
Genuine Seco 80° trigon turning insert, Grade TP1501 with M6 chipbreaker.
Key Specifications
| Grade | TP1501 |
|---|---|
| Substrate / Coating | Carbide CVD |
| Insert Shape | 80° trigon (ISO shape code W) |
| Chipbreaker | M6 |
| Insert Details | W shape code. G insert type, with hole and chipbreaker on both faces. TP1501 insert grade. |
About Grade TP1501
Carbide CVD. Duratomic® grade. Highly heat and wear-resistant grade extremely well suited for productive general turning of steels and a useful backup in other material groups. Ti(C,N) + Al2O3 + Used Edge Detection (Chrome). W-
About the M6 Chipbreaker
Strong double-sided chipbreaker, intended for high-feed semi-roughing and roughing of steel. A well-balanced design combining excellent chip control and relatively low cutting forces which provides reliable cutting action in both continuous as well as interrupted cuts. Indicative machining range: f = 0,3-1,0 mm/rev, ap = 1,0-7,0 mm.
About Seco Turning Inserts
Anything is possible when it comes to our broad selection of general turning grades and chipbreakers. Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications. Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
-
WNMG080408W-M6 TP1501
Model Number: 02959872
-
WNMG080412W-M6 TP1501
Model Number: 02959877
