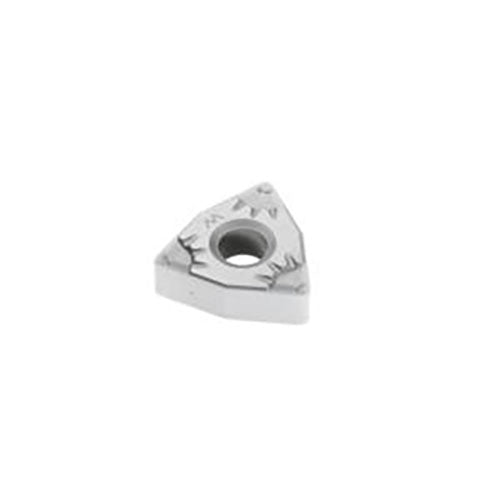

Seco Turning Insert W Shape Code 4.76 x 0.8 x 9.53mm G Insert Type - W-MF5 Grade TP1501 ± 0.13/± 0.05mm Tolerance WNMG060408W-MF5,TP1501 10pcs

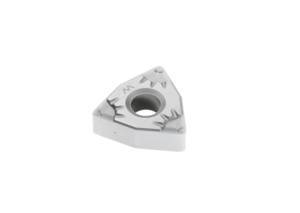

Turning Insert WNMG Insert Style - W-MF5 Grade TP1501

• W shape code.
• G insert type, with hole and chipbreaker on both faces.
• TP1501 insert grade.

TP1501 Insert Grade

• Duratomic® grade.
• Highly heat and wear-resistant grade extremely well suited for productive general turning of steels and a useful backup in other material groups.
• Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

W-MF5 Chipbreaker Prog.ramme

• Chipbreaker intended for medium finishing of steel at high feed.
• The geometry is very open and highly positive and equipped with wiper radius.
• Indicative machining range: f = 0,2-0,8 mm/rev, ap = 0,2-2,7 mm.

About Seco Turning Insert

• Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
• Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
• To boost the productivity and tool life in your turning applications.
• Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
