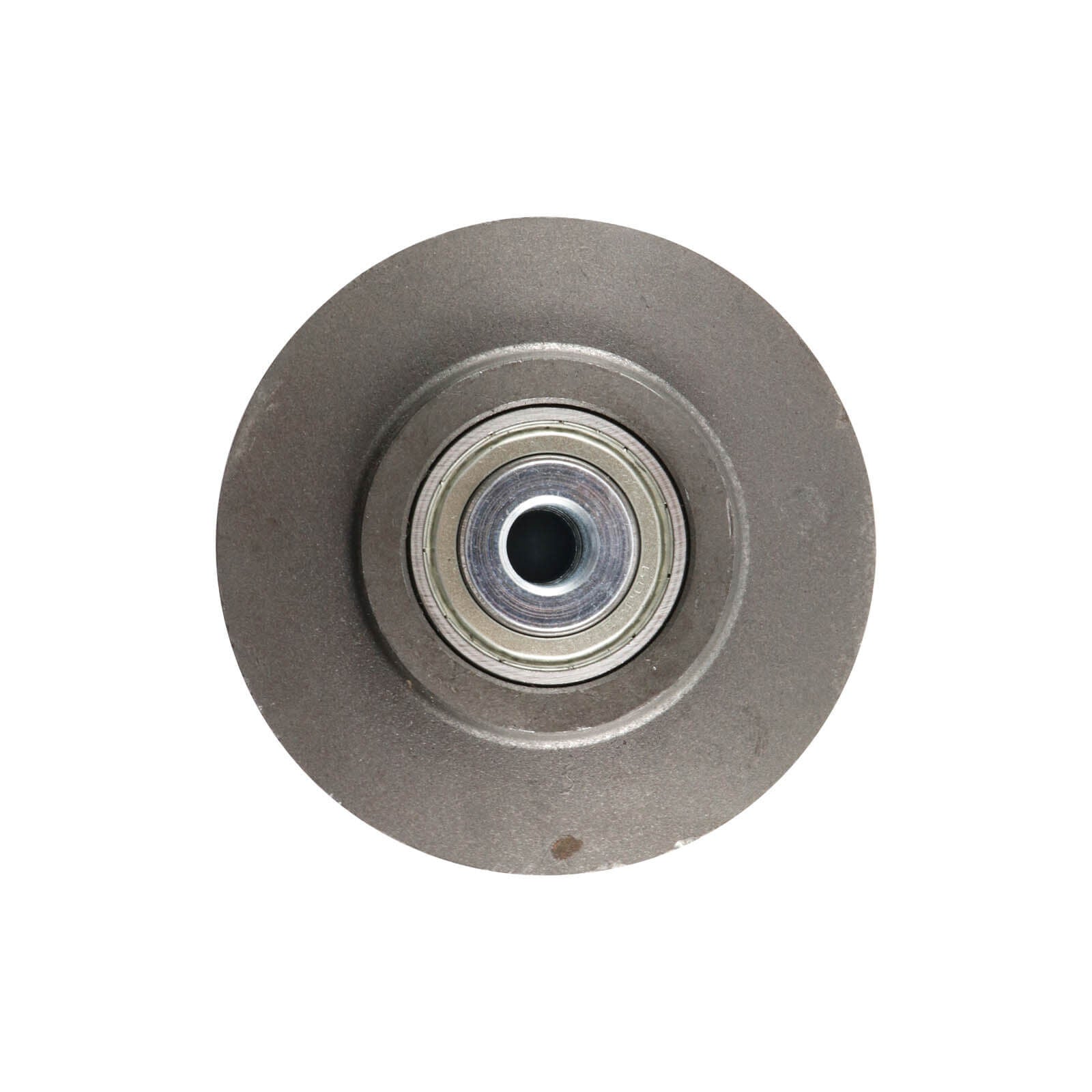

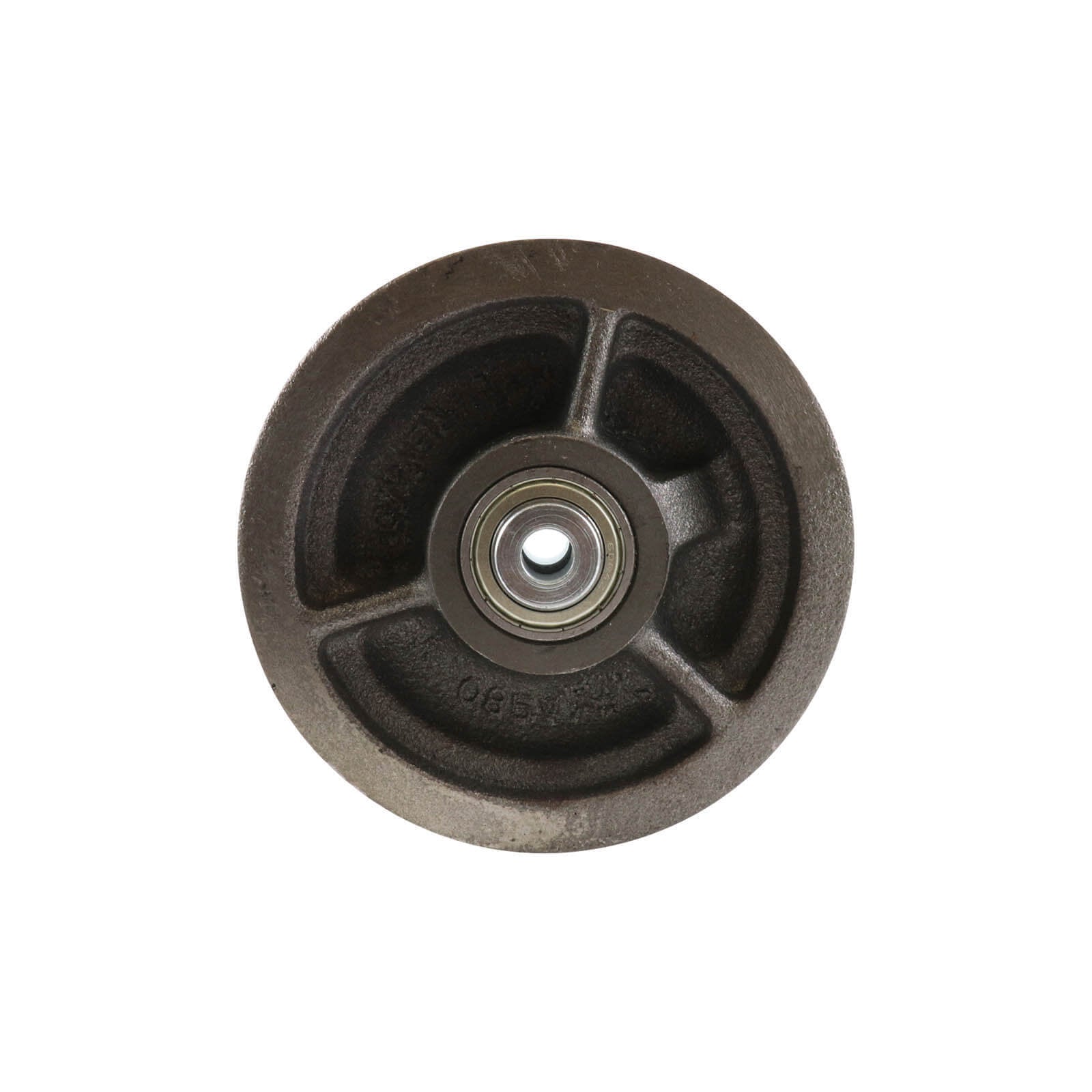

EasyRoll V Groove Cast Iron Wheel, Precision Bearing, Grey, 150 mm | W82K150X60V

The EasyRoll grey v groove cast iron wheel is available in 100 to 150 mm diameters, with precision bearings. The load capacity is 360 to 600 kg per wheel, depending on the size (manufacturer-stated).

EHI rates cast iron wheels as follows: poor shock absorbency and floor protection, excellent load capacity, push effort and durability. It suits oven floors, outdoor or unsealed surfaces and broken glass, is the best choice for high temperature and may damage flooring. Ratings are EHI general guidance for the wheel material (manufacturer-stated).

Where this product is used

• Oven floors and high temperature areas (confirm the operating temperature with AIMS)
• Outdoor or unsealed surfaces
• Heavy loads on floors that will not be damaged by a hard wheel
• Replacing wheels on trolleys and carts

Features

• 100 to 150 mm diameter, 46 mm tread
• Load capacity 360 to 600 kg per wheel (manufacturer-stated)
• Precision bearings
• Cast iron wheel material, rated by EHI for shock absorbency, load capacity and floor protection (manufacturer-stated)

Key specifications

Options and part numbers

Selecting the right option

Check the bore ID against your axle, the hub length against the space in your fork or frame, and the load capacity per wheel against the total load shared across all the wheels. The bore ID and bush ID are as listed by EHI, so confirm the axle size you need with AIMS before ordering. Choose the wheel material for your floor type first, using the EHI ratings above, then check the load. Precision ball bearings have balls running between a tempered inner and outer ring. EHI states that they are sealed for lifelong lubrication and give very good operating properties under heavy loads and at high speeds (manufacturer-stated). Load capacity is shown per wheel (manufacturer-stated). For castors on a four wheel trolley EHI recommends each castor is rated for at least 35 percent of the total load, which is the weight of the trolley plus what it carries (manufacturer-stated). If you are unsure which wheel suits your application, contact AIMS with the load, the floor type and how the equipment is used.
