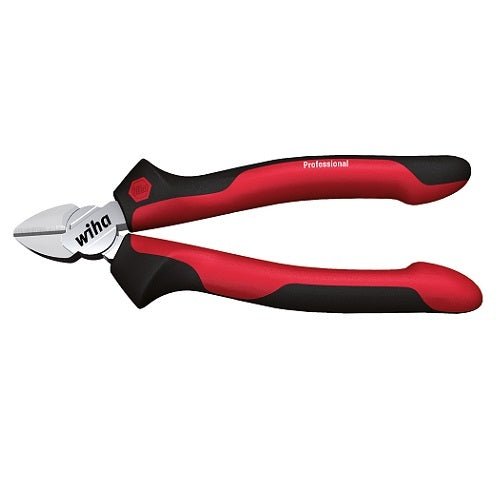

Wiha 160mm Diagonal Cutter Plier
Out of stock
Wiha 26740(Z12005) is a Professional diagonal cutter, Swedish style with a semi-circular head, 160mm long, to DIN ISO 5749.
Cutting capacities of 4.0mm soft wire, 2.8mm medium hard wire, 2.0mm hard wire and 1.6mm piano wire. The cutting edges are induction hardened to approx. 64 HRC and the joint is a riveted lap joint.
Where this product is used
- Cutting soft and hard wires
Features
- Semi-circular head, Swedish style
- Low wear lap joint, riveted, able to withstand high loads
- Specially milled cutting edges, induction hardened to approx. 64 HRC
- Wiha DynamicJoint for transmitting hand strength to the cutting edges
- C 70 tool steel, tempered
Key specifications
| Specification | Detail |
|---|---|
| Brand | Wiha |
| Series | Z12005 |
| Overall length | 160mm |
| Standard | DIN ISO 5749 |
| Cutting capacity, soft wire | 4.0mm |
| Cutting capacity, medium hard wire | 2.8mm |
| Cutting capacity, hard wire | 2.0mm |
| Cutting capacity, piano wire | 1.6mm |
| Cutting edges | Induction hardened to approx. 64 HRC |
| Material | C 70 tool steel, tempered |
Choosing the right option
Choose this cutter when you need a side cutter with the full range of wire types, from soft wire (4.0mm) to piano wire (1.6mm). For a cutter with two switchable cutting strengths see the Wiha 200mm Professional Diagonal BiCut Cutter, and for combined gripping and cutting the Wiha 200mm High-Leverage Combination Pliers.
See also: Wiha 200mm Professional Diagonal BiCut Cutter, Wiha 200mm High-Leverage Combination Pliers, Wiha 118mm Micro Oblique Plier Cutting Nipper.
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Wiha 160mm Diagonal Cutter Plier
SKU: A0109234 | Model: 26740(Z12005)
Wiha 26740(Z12005) is a diagonal cutter plier. Overall length: 160mm. Cutting capacity, soft wire: 4.0mm.
