Wiha T10 ESD Torx MagicSpring screwdriver
Available

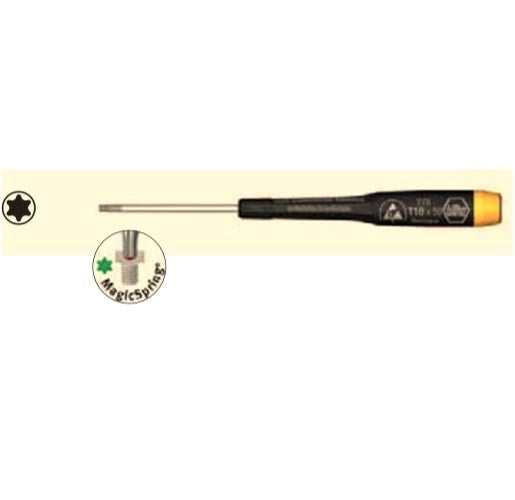

Wiha 27751(278R) is a Precision ESD Torx MagicSpring screwdriver in size T10, with a 50mm visible blade, 145mm overall length and a 13.0mm handle diameter.
The round blade is 3.0mm in diameter.
Where this product is used
- Working on electrostatically sensitive components
Features
- Retaining spring holds Torx screws in place
- Dissipative handle, ESD-safe, with rotating cap
- Handle surface resistance 10⁶ to 10⁹ ohms
- To IEC 61340-5-1
- Blade in chrome-vanadium-molybdenum steel, through hardened and chrome-plated, with Wiha ChromTop finish on the tip
Key specifications
| Specification | Detail |
|---|---|
| Brand | Wiha |
| Series | 278R |
| Torx size | T10 |
| Visible blade length | 50mm |
| Round blade diameter | 3.0mm |
| Overall length | 145mm |
| Handle diameter | 13.0mm |
| Handle | Dissipative, ESD-safe precision handle with rotating cap |
| Handle surface resistance | 10⁶ to 10⁹ ohms |
| Standard | IEC 61340-5-1 |
| Blade steel | Chrome-vanadium-molybdenum, through hardened, chrome-plated |
| Tip finish | Wiha ChromTop |
Choosing the right option
Choose this screwdriver for T10 Torx screws where the screw should stay on the tip and the work is on electrostatically sensitive components. For a Torx Plus screw see the Wiha Precision ESD Torx Plus Screwdriver 9IP x 145mm - 27765(278IP); for a non-ESD PicoFinish Torx screwdriver see the Wiha Screwdriver PicoFinish Torx.
See also: Wiha Precision ESD Torx Plus Screwdriver 9IP x 145mm - 27765(278IP), Wiha Screwdriver PicoFinish Torx, Wiha PicoFinish Torx Screwdriver.
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Wiha Precision Screwdriver ESD MagicSpring T10 x 145mm
SKU: A0107517 | Model: 27751(278R)
Wiha 27751(278R) is a T10 ESD Torx MagicSpring screwdriver. Torx size: T10. Visible blade length: 50mm.
