Wiha Screwdriver Variable Torque ESD 0.8 - 5.0Nm

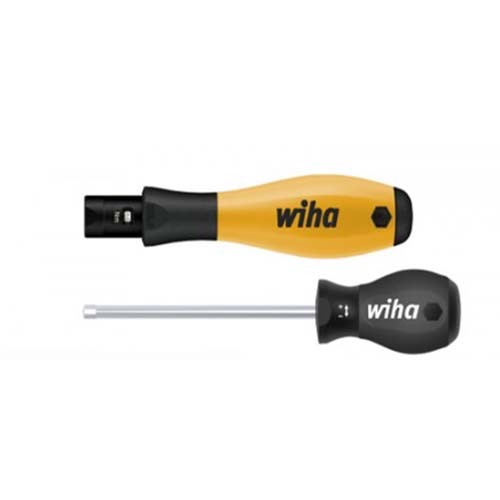

Wiha 2882(30495) is a TorqueVario-S ESD torque screwdriver with a variably adjustable torque limit of 0.8 to 5Nm, a 4.0mm hexagon head, a 138mm handle and a 36mm handle diameter.

The tool is made to IEC 61340-5-1 with a dissipative handle surface resistance of 10⁶ to 10⁹ ohm, and that the release accuracy is 6% to DIN EN ISO 6789. A bit holder, a works inspection protocol and a storage box are included.

Where this product is used

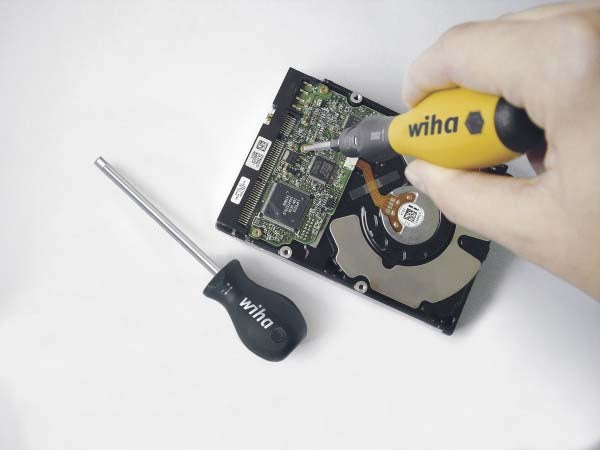

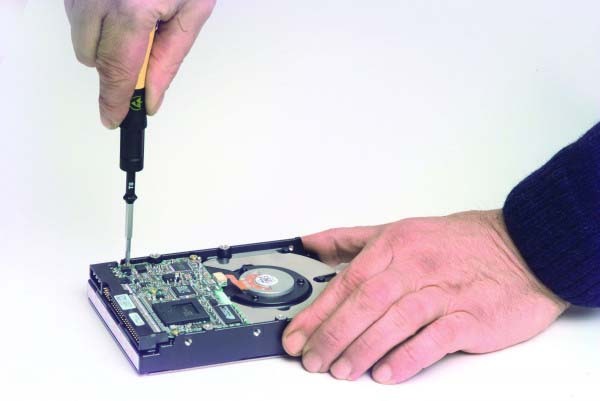

• Controlled fastening at a specific torque on components susceptible to electrostatic discharge

Features

• ESD handle made to IEC 61340-5-1, surface resistance 10⁶ to 10⁹ ohm
• Torque infinitely adjustable with the supplied Torque-Setter tool
• Clear audible and tactile signal at the set torque
• Compatible with Wiha Torque interchangeable blades with a 4mm hexagon head

Key specifications

Choosing the right option

This is the 0.8 to 5Nm handle of the ESD range. For lower torques see the Wiha Torque Screwdriver TorqueVario-S ESD (0.4 to 1.0Nm, and 0.04 to 0.46Nm). Wiha ESD screwdrivers are not insulated, so they are not for live parts; for insulated work see the Wiha Screwdriver Variable Torque 0.5 - 2.0Nm VDE Insulated - 26625(2872).

Safety notice that its ESD screwdrivers are non-insulated and so not suitable for working on live parts.

See also: Wiha Torque Screwdriver TorqueVario-S ESD, Wiha Torque Screwdriver Adjusting Tool, Wiha 1/4" Hex Bit Holder Suits Torque ESD Screwdriver.
