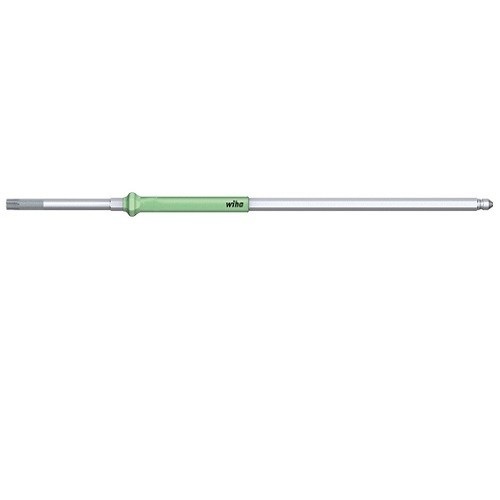

Wiha torque Torx Plus blades 6IP, 6IP
Out of stock
Each blade has a 4mm hex blade diameter, is 175mm long overall and shows 42mm of blade. The maximum torque is 0.8Nm for the 6IP, 1.3Nm for the 7IP and 6.6Nm for the 15IP.
Where this product is used
- Controlled fastening of Torx Plus screws with a pre-set torque
- Applications where recommended torque settings are important
Features
- Blade in chrome-vanadium-molybdenum steel, through hardened and chrome-plated
- Wiha ChromTop finish on the tip
- Colour-coded light green
- Maximum torque is set for each size: 0.8Nm (6IP), 1.3Nm (7IP), 6.6Nm (15IP)
- Very slim blade diameter for hard-to-reach screws
Key specifications
| Specification | Detail |
|---|---|
| Brand | Wiha |
| Series | 2859 |
| Hex blade diameter | 4mm |
| Overall length | 175mm |
| Visible blade length | 42mm |
| Blade steel | Chrome-vanadium-molybdenum, through hardened, chrome-plated |
| Tip finish | Wiha ChromTop |
| Colour coding | Light green |
| Torx Plus size | 6IP, 7IP, 15IP |
| Maximum torque | 0.8Nm, 1.3Nm, 6.6Nm |
Choosing the right option
Torx Plus (IP) blades are for Torx Plus screws; choose the size that matches the screw head: 6IP, 7IP or 15IP here. The maximum torque rises with the size. For standard Torx screws use the Torx blade.
Same series 2859: Wiha Torque Torx Interchangeable Blade, Wiha Torque Hex Interchangeable Blade, Wiha Torque Phillips Interchangeable Blade.
For T-handle torque tools see the: Wiha Torque-Tplus Torx Interchangeable Blade.
| Option | Part number | SKU |
|---|---|---|
| 6IP | 26071(2859) | A0109003 |
| 7IP | 26152(2859) | A0109005 |
| 15IP | 26073(2859) | A0109004 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Wiha Torque Torx Plus Interchangeable Blade: 6IP
SKU: A0109003 | Model: 26071(2859)
Wiha 26071(2859): Torx Plus 6IP torque blade, 4mm hex blade diameter, 175mm long, 42mm visible, maximum torque 0.8Nm.
