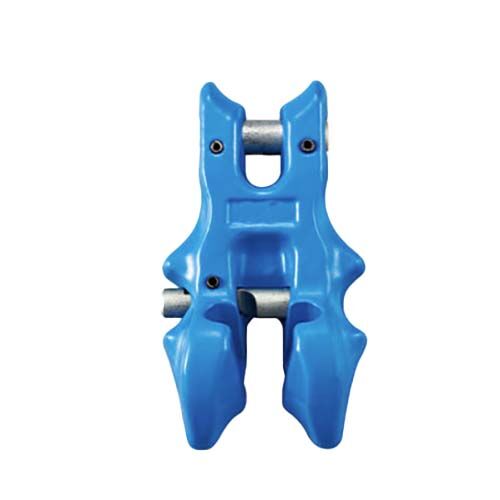

Yoke G100 Clevis Shortening Clutch Clevis W/ Safety Pin
- Quenched and Tempered Alloy Steel.
- At least 25% greater WLL than traditional G80 products.
- Manufactured in accordance with EN 1677- 1 and ASME 830.26.
- Proof Load tested at 2.5 times the WLL with certification for each batch manufactured.
- Design Factor 4:1.
- Fatigue rated to 20,000 cycles at 1.5 times the WLL.
- Tempering temperature minimum 400°C.
- he use of Clevis Clutch still allows 100% of the chain sling capacity.

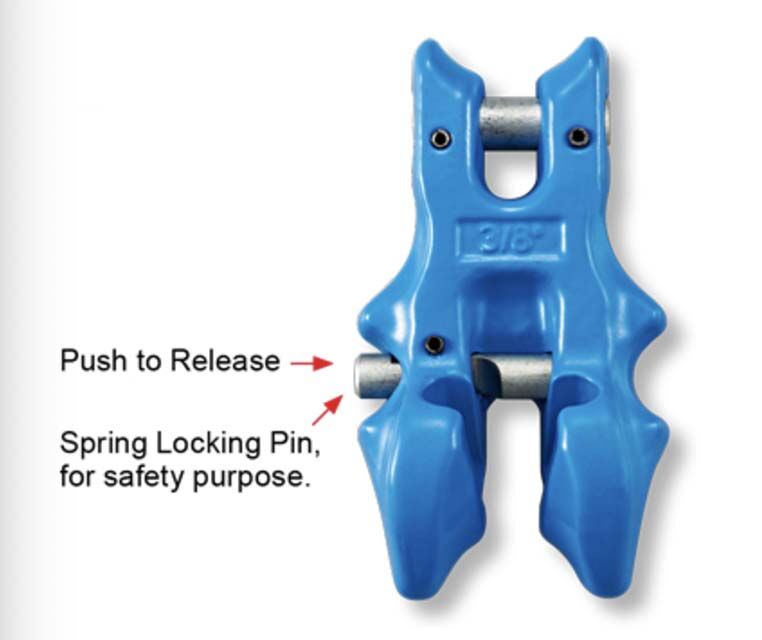

- With the locking system and spring locking pin design to enhance security and prevent the chains from disengaging.
Specifications
Specifications
Applications
Applications
Features & Benefits
Features & Benefits
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Yoke G100 Shortening Clutch Clevis Type Safety Pin 7/8mm - 181208
Yoke G100 Shortening Clutch Clevis Type Safety Pin 7/8mm - 181208
SKU: A0208460
Type: Clevis Shortening Clutch
- Wide Range
- Reliable Services
- Proven Trust
Available
The Yoke G100 Shortening Clutch Clevis Type Safety Pin 7/8mm by Yoke is a Clevis Shortening Clutch made of Quenched and Tempered Alloy Steel. It offers at least 25% greater WLL than traditional G80 products and is suitable for Material Handling & Storage.
