Belt Length Acronyms Made Easy

Ever looked at belt measurements like La, Le, or Ld and felt like you were deciphering a secret code? You’re not alone! But don’t worry—we’ve got your back. Let’s break down these belt length acronyms in a way that’s simple, clear, and even a little fun.

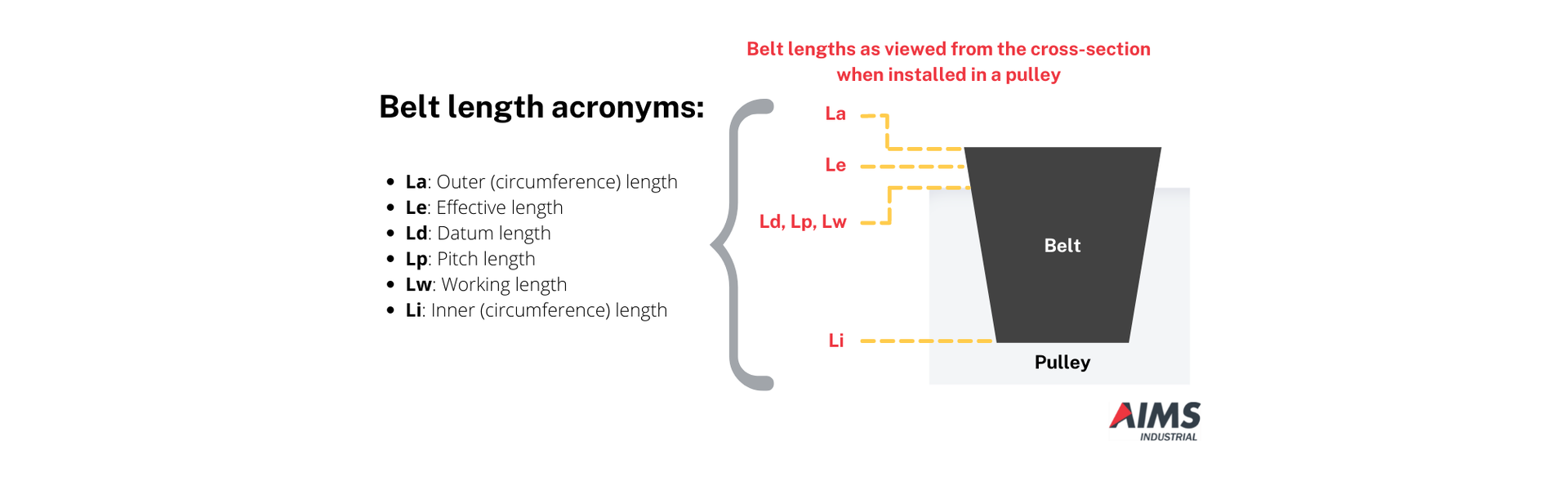

  • La (Outer Length):
    Think of it as the belt’s full external length, like measuring the outside of a track.

  • Le (Effective Length):
    This one’s measured at the point where the belt hugs the sheave (the grooved pulley) under tension.

  • Ld (Datum Length):
    A standardized term close to the effective length, often used with V-belts.

  • Lp (Pitch Length):
    For belts with teeth (like timing belts), this measures the centerline of the teeth.

  • Lw (Working Length):
    Imagine the belt hard at work—it’s the length measured at the pitch diameter of the sheave under tension.

  • Li (Inner Length):
    The length of the belt when measured along its inner edge.

For a more detailed explanation, you can refer to this detailed guide.

Why Do These Acronyms Matter?

Choosing the right belt isn’t just about length—it’s about the right fit and performance. Understanding these measurements ensures your machinery runs smoothly, saves you time, and avoids unnecessary wear and tear.
