JUUKO makes industrial radio remote control systems for overhead cranes, hoists and material handling equipment. Each set is a handheld transmitter and a matched receiver that connects to the hoist or crane's electrical control circuit, so the operator can control the lift from a safe position instead of standing at a wired pendant. AIMS Industrial lists four JUUKO sets: single-speed and dual-speed systems with 2, 4 and 6 buttons. See our electric hoist guide if you are choosing the hoist as well.
What's in the range
| JUUKO remote control set | What it is |
|---|---|
| Single speed, 2 button | Basic start and stop control of one motion, such as hoist up and down. Listed with a choice of 1 or 2 transmitters. |

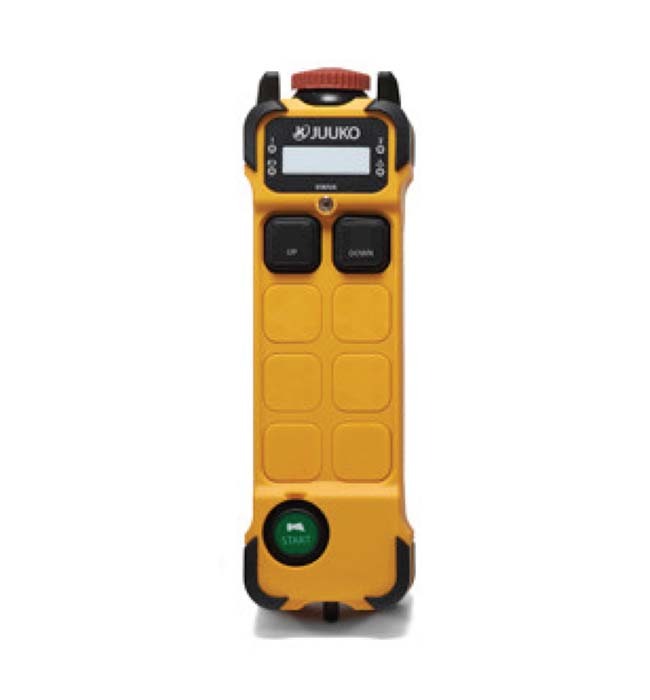

| Dual speed, 2 button | Two-speed control of one motion, so the operator can run fast and then inch the load into position. Listed with a choice of 1 or 2 transmitters. |

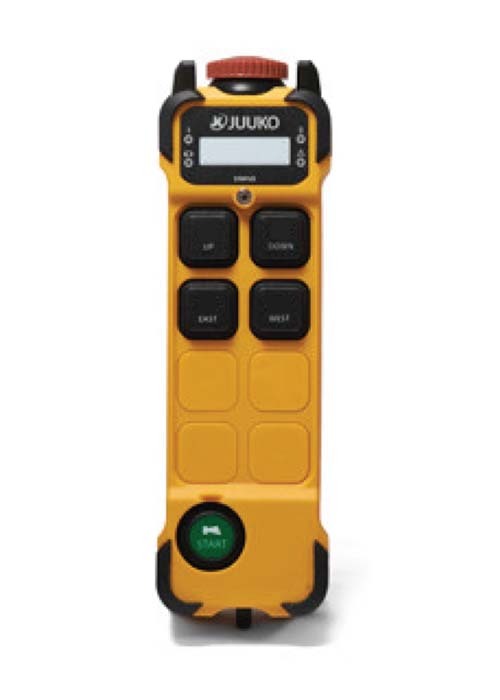

| Dual speed, 4 button, 1R2T | Two-speed control of two motions, such as hoist plus trolley or bridge travel. Listed as a 1R2T set. |
| Dual speed, 6 button | Two-speed control of three motions, for cranes with several independent movements. Listed with a choice of 1 or 2 transmitters. |
Choosing a JUUKO remote control
Start with the number of motions you need to control. JUUKO's guidance is that 2-button systems suit single-motion hoists with up and down only, 4-button systems add a second axis such as bridge or trolley travel, and 6-button systems suit cranes with multiple independent motions.
Then choose the speed control. Single-speed systems give basic up, down and directional control. Dual-speed systems add a second, lower speed, which suits work where you need to place a load precisely without overshooting.
Before you order, confirm the receiver voltage and that it is compatible with your hoist or crane control circuit. The wiring should be done by a qualified electrician.
Always check the data sheet. Crane and hoist controls are safety-critical. Confirm the stop functions, receiver voltage and installation requirements for your equipment before you buy, and call us if you are not sure.
Related ranges
See remote control, hoists, winches, rigging and lifting slings, lifting equipment and material handling and storage.
Order from AIMS Industrial
Not sure which remote suits your hoist or crane? Call us on (02) 9773 0122, contact our team or request a quote. We have supplied Australian industry since 1988 and can help you match a remote to your equipment.
JUUKO remote control FAQs
What does a JUUKO crane remote control set include?
A handheld transmitter and a matched receiver. The receiver connects to the hoist or crane's electrical control circuit, and the transmitter lets the operator control the lift wirelessly from a safe distance from the load.
What do 2, 4 and 6 button remotes control?
A 2-button set suits a single motion, usually hoist up and down. A 4-button set adds a second motion such as trolley or bridge travel. A 6-button set suits cranes with multiple independent motions. Choose by the number of movements your crane has.
Should I choose single speed or dual speed?
Single speed gives basic control at one speed. Dual speed adds a second, lower speed, which makes it easier to place a load precisely. Dual speed is the better choice where accurate load placement matters.
How many transmitters do I need?
The single-speed 2-button, dual-speed 2-button and dual-speed 6-button sets are each listed with a choice of one or two transmitters. The 4-button set is listed as a 1R2T set. Check the product page for what is supplied, or call us.
What receiver voltage do I need?
The receiver must suit your hoist or crane control circuit. Check the voltage of your existing pendant or contactor circuit before ordering, and send us the hoist or crane model if you need help.
Can I replace a pendant control with a JUUKO remote?
These sets are designed to replace wired pendant controls. The receiver connects to the hoist or crane control circuit, and a qualified electrician should do the wiring.
