1/2 in (15 mm) Galvanised Oval Flange | LFO15
Available

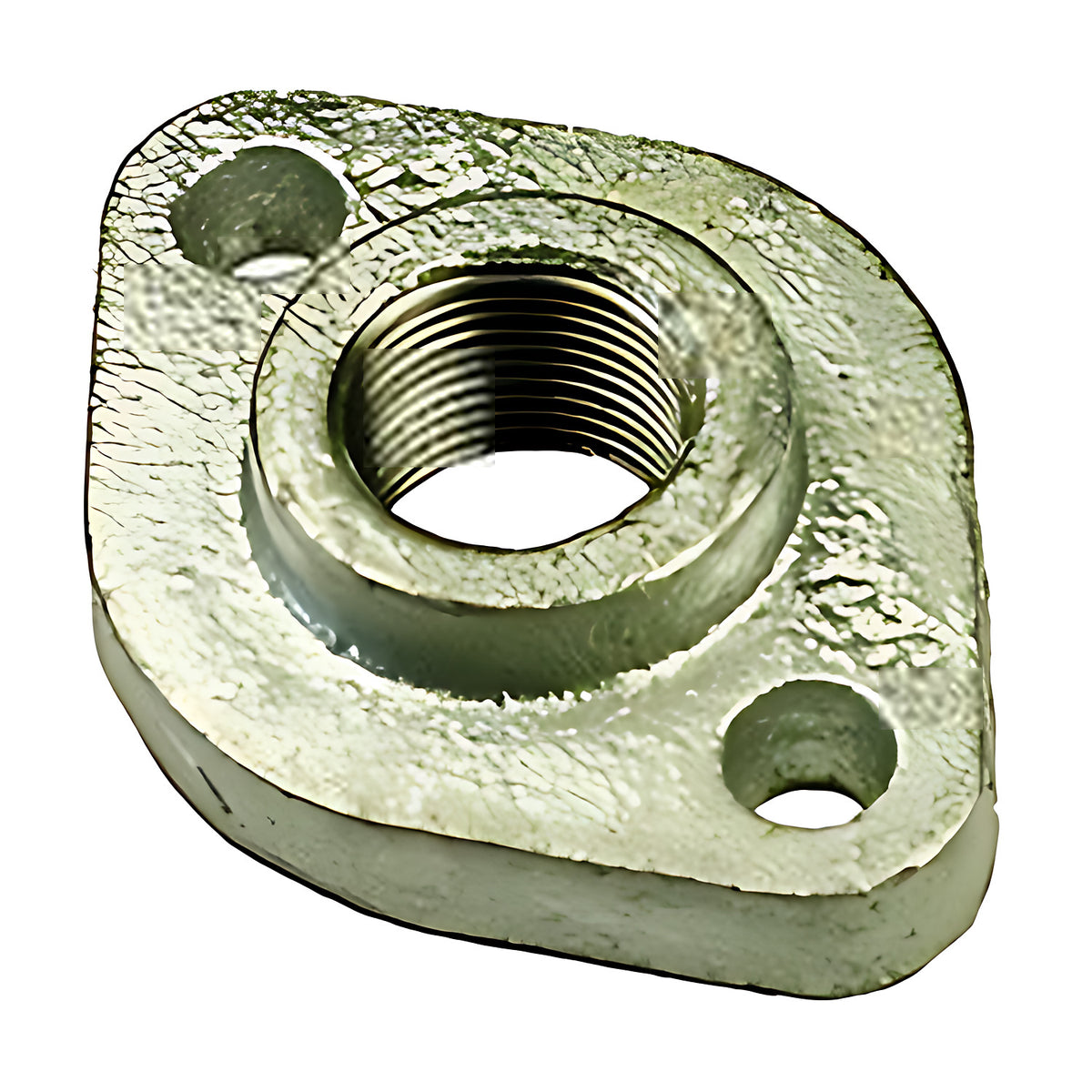

This AAP galvanised malleable iron oval flange is a hot dip galvanised fitting with BSP threads. It is supplied in 6 sizes, 1/2 in (15 mm) to 2 in (50 mm).
An oval flange is a threaded flange plate with an oval outline and two bolt holes, as drawn. It screws onto a male threaded pipe to give a flat mounting face. AAP does not state the hole size or hole spacing, so confirm these with AIMS before you order if they must match your fixing.
AAP states that these fittings are made to EN 10242:1994 (manufacturer-stated), in blackheart malleable cast iron and delivered hot dip galvanised (manufacturer-stated). AAP states that each fitting is pressure tested to EN 10242 at a minimum hydrostatic pressure of 2068 kPa (equivalent to a minimum pneumatic pressure of 500 kPa) without leakage (manufacturer-stated). AAP recommends a maximum working pressure of 1379 kPa for water and 1034 kPa for gas, steam and compressed air (manufacturer-stated). Working pressures may also be limited by pressure piping codes or industry regulations, so confirm the pressure and temperature for your application with AIMS before you order.
Where this product is used
- Fixing a threaded pipe to a wall, floor or frame with two bolts
- Mounting a pipe end or fitting on a flat surface
- General galvanised threaded pipework
Features
- 6 sizes, 1/2 in (15 mm) to 2 in (50 mm)
- Malleable iron, hot dip galvanised, EN 10242:1994 (manufacturer-stated)
- BSP threads
- Test pressure 2068 kPa (manufacturer-stated)
Key specifications
| Specification | Detail |
|---|---|
| Brand | AAP |
| Product | Galvanised malleable iron oval flange |
| Finish | Hot dip galvanised, as prescribed by EN 10242 (manufacturer-stated) |
| Material | Blackheart malleable cast iron to ASTM A197 and ASTM A47, hot dip galvanised (manufacturer-stated) |
| Thread | BSP (British Standard Pipe) thread: parallel internal (Rp) and taper external (R), cut to AS 1722.1 and ISO 7-1 (manufacturer-stated) |
| Ends | Female (internal) thread, oval plate |
| Applicable standard (manufacturer-stated) | EN 10242:1994, threaded pipe fittings in malleable cast iron (manufacturer-stated) |
| Dimensions (manufacturer-stated) | AAP lists its dimensions to BS EN 10242, BS 143 and BS 1256 (manufacturer-stated) |
| Recommended working pressure (manufacturer-stated) | 1379 kPa water; 1034 kPa gas, steam and compressed air |
| Test pressure (manufacturer-stated) | 2068 kPa hydrostatic (equivalent to 500 kPa pneumatic minimum) |
| Sizes | 1/2 in (15 mm) to 2 in (50 mm) (6 sizes) |
Options and part numbers
| Size | Part number | Length A (mm) | Thickness B (mm) | Dimension C (mm) | Weight (kg) |
|---|---|---|---|---|---|
| 1/2 in (15 mm) | LFO15 | 80 | 17 | 55 | 0.18 |
| 3/4 in (20 mm) | LFO20 | 90 | 19 | 66 | 0.27 |
| 1 in (25 mm) | LFO25 | 100 | 21.8 | 75 | 0.38 |
| 1-1/4 in (32 mm) | LFO32 | 120 | 22 | 90 | 0.59 |
| 1-1/2 in (40 mm) | LFO40 | 132 | 24 | 100 | 0.72 |
| 2 in (50 mm) | LFO50 | 140 | 24 | 110 | 0.77 |

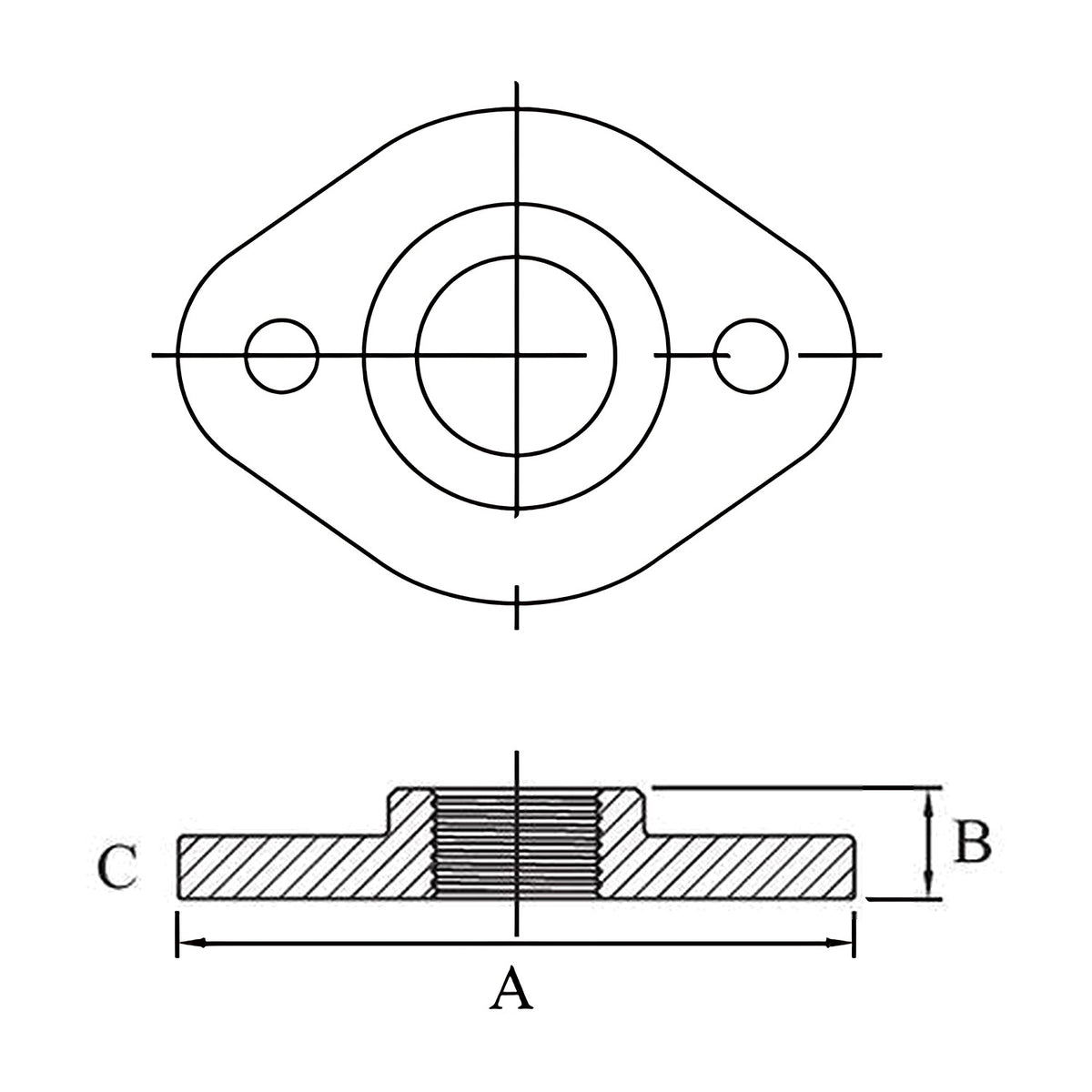

A is the length and B the thickness, as lettered on the AAP drawing, in millimetres. AAP letters C beside a thickness on its drawing, but the table values (55 to 110 mm) are too large for a thickness, so C is shown as printed and AIMS is confirming it with AAP. Weights are approximate, in kilograms per piece.
Selecting the right option
Choose the size to match your pipework. These fittings are BSP threaded, so check that your pipe or fitting is BSP and not NPT before you order.
Related products
See also AAP Galvanised Malleable Iron Flange, BS 10 Table D, Drilled and Undrilled, AAP Galvanised Malleable Iron Socket, AAP Galvanised Malleable Iron Cap and AAP Galvanised Malleable Iron Square Head Plug.
