1/4 in (8 mm) 316 Stainless Hose Nipple | SSHN08
Available

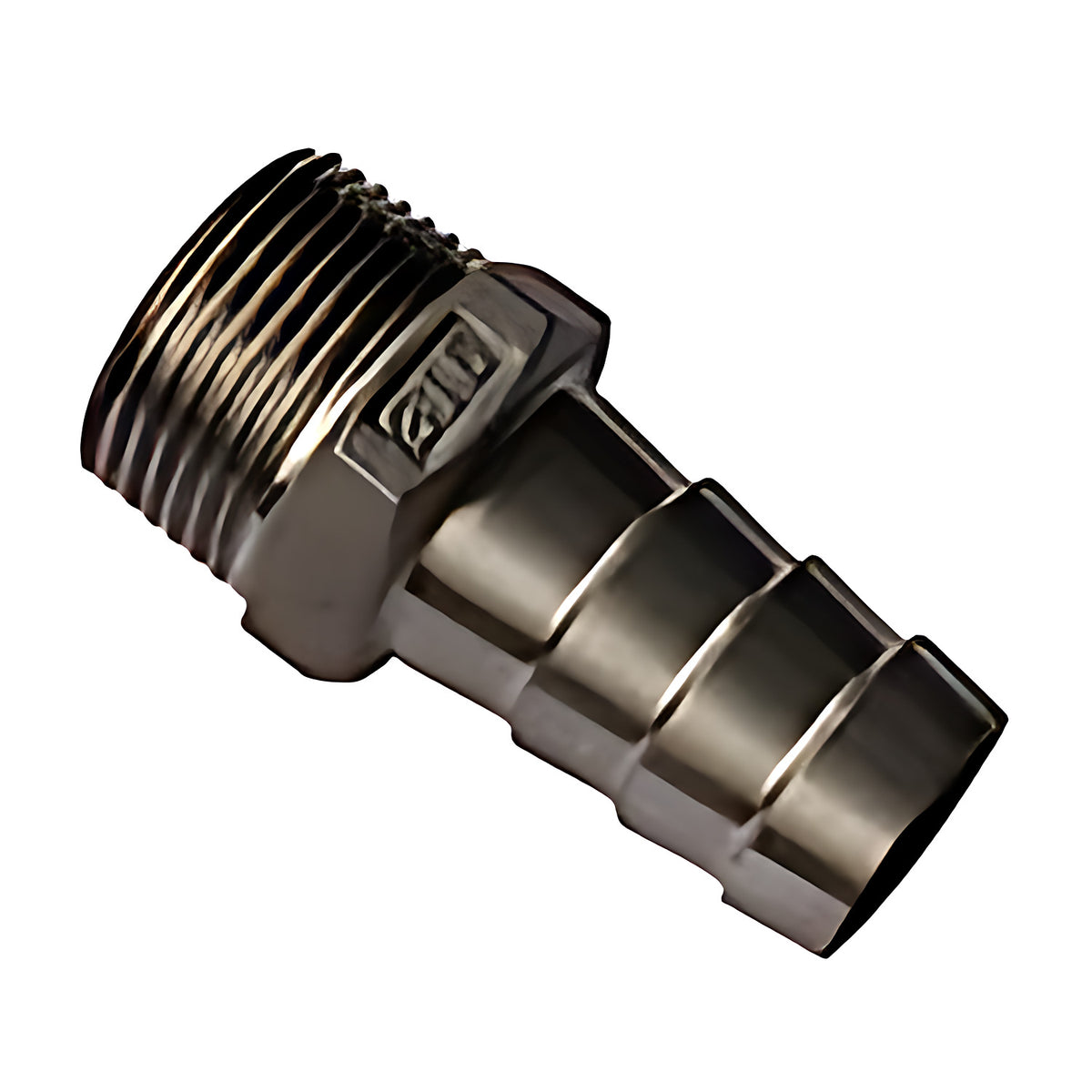

This AAP hose nipple is grade 316 stainless steel with BSP threads. It is supplied in 17 sizes, 1/4 in (8 mm) to 4 in (100 mm).
A hose nipple has a threaded end and a barbed tail so a hose can be clamped to a threaded port. AAP lists some sizes as two sizes (for example 1/2 x 3/8) and does not say which is the thread and which is the hose tail, so confirm this with AIMS before you order. A is the overall length and B is the width of the body.
AAP makes its 150 lb stainless steel fittings from grade 316 stainless steel and says 150 lb refers to a maximum working pressure and temperature of 150 psi saturated steam, about 1,034 kPa (manufacturer-stated). AAP gives the grade as 316/316L in its chemical composition table and lists marine, pumping, commercial, chemical and irrigation applications for the range.
Where this product is used
- Marine, pumping, commercial, chemical and irrigation pipework in stainless steel, as listed by AAP for the range
- Connecting a hose to a threaded stainless steel port
- Transfer and wash down lines where a hose tail is needed
Features
- 17 sizes, 1/4 in (8 mm) to 4 in (100 mm)
- Grade 316 stainless steel, 150 lb class (manufacturer-stated)
- Applicable standards listed by AAP include AS 1722.2 and ISO 4144 (manufacturer-stated)
Key specifications
| Specification | Detail |
|---|---|
| Brand | AAP |
| Product | Hose nipple, grade 316 stainless steel |
| Type | Hose nipple, thread and hose tail |
| Material | Grade 316 stainless steel (316/316L composition listed by AAP) |
| Class (manufacturer-stated) | 150 lb (150 psi saturated steam) |
| Applicable standards (manufacturer-stated) | AS 1722.2, ISO 4144, ASTM A351, ASTM A182 |
| Mechanical properties (manufacturer-stated) | Tensile strength min 70,000 psi (483 MPa), yield strength min 25,000 psi (172 MPa), elongation min 35 per cent |
| Sizes | 1/4 in (8 mm) to 4 in (100 mm) (17 sizes) |
Options and part numbers
| Size | Part number | Length A (mm) | Width B (mm) | Weight (kg) |
|---|---|---|---|---|
| 1/4 in (8 mm) | SSHN08 | 43 | 16 | 0.02 |
| 3/8 in (10 mm) | SSHN10 | 48 | 19 | 0.04 |
| 3/8 x 1/2 in (10 x 15 mm) | SSHN1015 | 60 | 19 | 0.04 |
| 1/2 in (15 mm) | SSHN15 | 58 | 22 | 0.05 |
| 1/2 x 3/8 in (15 x 10 mm) | SSHN1510 | 60 | 24 | 0.05 |
| 1/2 x 3/4 in (15 x 20 mm) | SSHN1520 | 60 | 25 | 0.07 |
| 3/4 in (20 mm) | SSHN20 | 64.6 | 27 | 0.09 |
| 3/4 x 1/2 in (20 x 15 mm) | SSHN2015 | 64 | 28 | 0.09 |
| 3/4 x 1 in (20 x 25 mm) | SSHN2025 | 79 | 30 | 0.14 |
| 1 in (25 mm) | SSHN25 | 72.5 | 35 | 0.14 |
| 1 x 3/4 in (25 x 20 mm) | SSHN2520 | 67 | 36 | 0.14 |
| 1-1/4 in (32 mm) | SSHN32 | 82 | 47 | 0.21 |
| 1-1/2 in (40 mm) | SSHN40 | 88 | 52 | 0.27 |
| 2 in (50 mm) | SSHN50 | 97.5 | 61 | 0.42 |
| 2-1/2 in (65 mm) | SSHN65 | 106 | 79 | 0.83 |
| 3 in (80 mm) | SSHN80 | 111 | 92 | 0.87 |
| 4 in (100 mm) | SSHN100 | 151 | 117 | 2.32 |
A is the overall length and B is the width of the body across the hexagon, in millimetres, as lettered on the AAP drawing.
Selecting the right option
Choose the size to match your pipe thread and hose. Where a size has two figures, ask AIMS which is the thread and which is the hose tail.
Related products
See also AAP 316 Stainless Steel Hex Nipple, BSP Threaded, AAP 316 Stainless Steel Barrel Nipple, BSP Threaded, AAP 316 Stainless Steel Coupling, BSP Threaded and AAP 316 Stainless Steel 90 Degree Elbow, Male x Female, BSP Threaded.
