3/8 in (10 mm) Black Pap | SSH10/15
Available

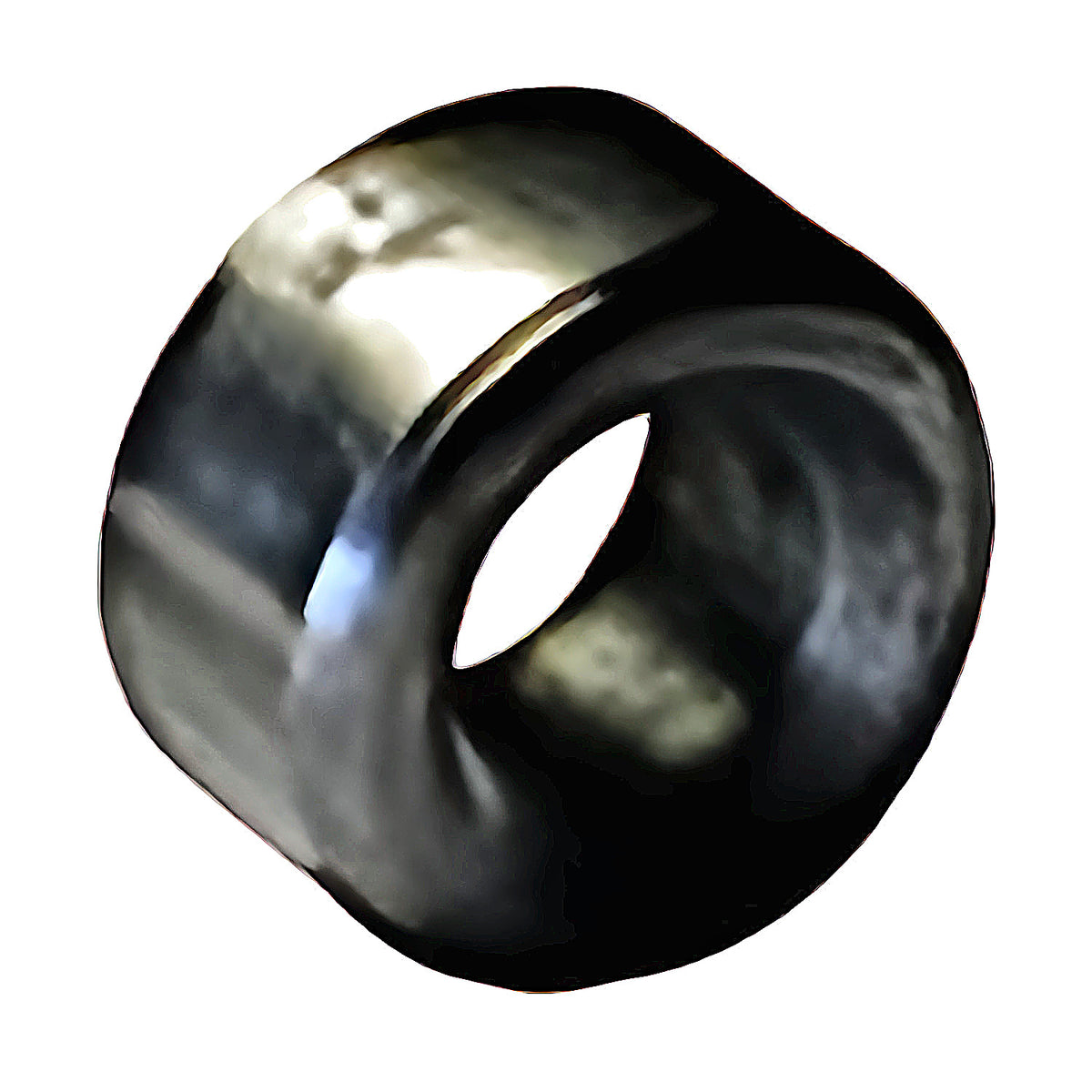

This AAP black pap is a mild steel fitting with BSP threads. It is supplied in 3 sizes, 3/8 in (10 mm) to 3/4 in (20 mm).
A pap is a short fitting with a female thread. AAP lists it in black steel in three sizes and does not describe how it is fitted, so confirm this with AIMS before you order.
AAP states that its steel threaded pipe fittings are made to BS EN 10241:2000 (manufacturer-stated). It has a black finish. AAP states that all sizes of its fittings other than unions are sample tested to 5.2 MPa (manufacturer-stated). These are test pressures, not working pressures, so confirm the pressure and temperature for your application with AIMS before you order.
Where this product is used
- Threaded connections where a short threaded body is needed
- Fabricated steel pipework with threaded connections
- General threaded steel pipework
Features
- 3 sizes, 3/8 in (10 mm) to 3/4 in (20 mm)
- Mild steel, black, BS EN 10241:2000 (manufacturer-stated)
- BSP threads
Key specifications
| Specification | Detail |
|---|---|
| Brand | AAP |
| Product | Black pap, mild steel |
| Finish | Black |
| Material | Mild steel. AAP lists carbon 0.25 per cent maximum and tensile strength 320 N/mm2 minimum for its steel fittings (manufacturer-stated) |
| Thread | BSP (British Standard Pipe) thread; AAP lists ISO 7 and AS 1722 Part 1 for its threads (manufacturer-stated) |
| Ends | Female (internal) thread |
| Applicable standard (manufacturer-stated) | BS EN 10241:2000, steel threaded pipe fittings (manufacturer-stated) |
| Test pressure (manufacturer-stated) | Sample tested to 5.2 MPa |
| Sizes | 3/8 in (10 mm) to 3/4 in (20 mm) (3 sizes) |
Options and part numbers
| Size | Part number | Dimension A (mm) | Dimension B (mm) | Weight (kg) |
|---|---|---|---|---|
| 3/8 in (10 mm) | SSH10/15 | 28.57 | 15.75 | 0.05 |
| 1/2 in (15 mm) | SSH15S | 28.57 | 15.75 | 0.04 |
| 3/4 in (20 mm) | SSH20S | 35.75 | 20.64 | 0.07 |

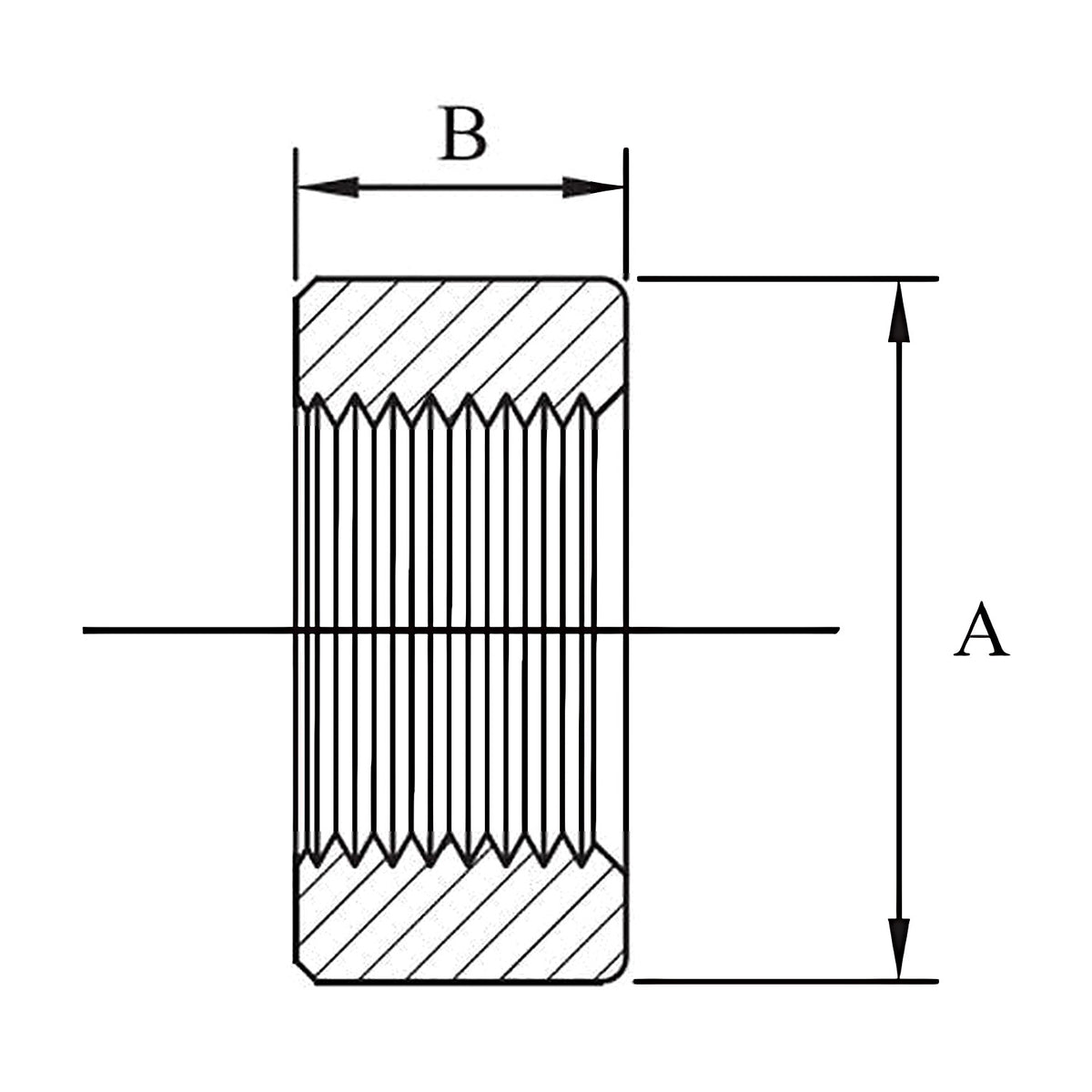

AAP letters the vertical dimension A and the width B on its drawing, but the table values (A larger than B) suggest the reverse, so A and B are shown as printed and AIMS is confirming them with AAP. Weights are approximate, in kilograms per piece.
Selecting the right option
Choose the size to match your pipework. These fittings are BSP threaded, so check that your pipe or fitting is BSP and not NPT before you order.
Related products
See also AAP Black Steel Hexagon Pap, 1/2 in (15 mm), AAP Black Steel Half Socket, Heavy Type and AAP Black Steel Socket, Heavy Type.
