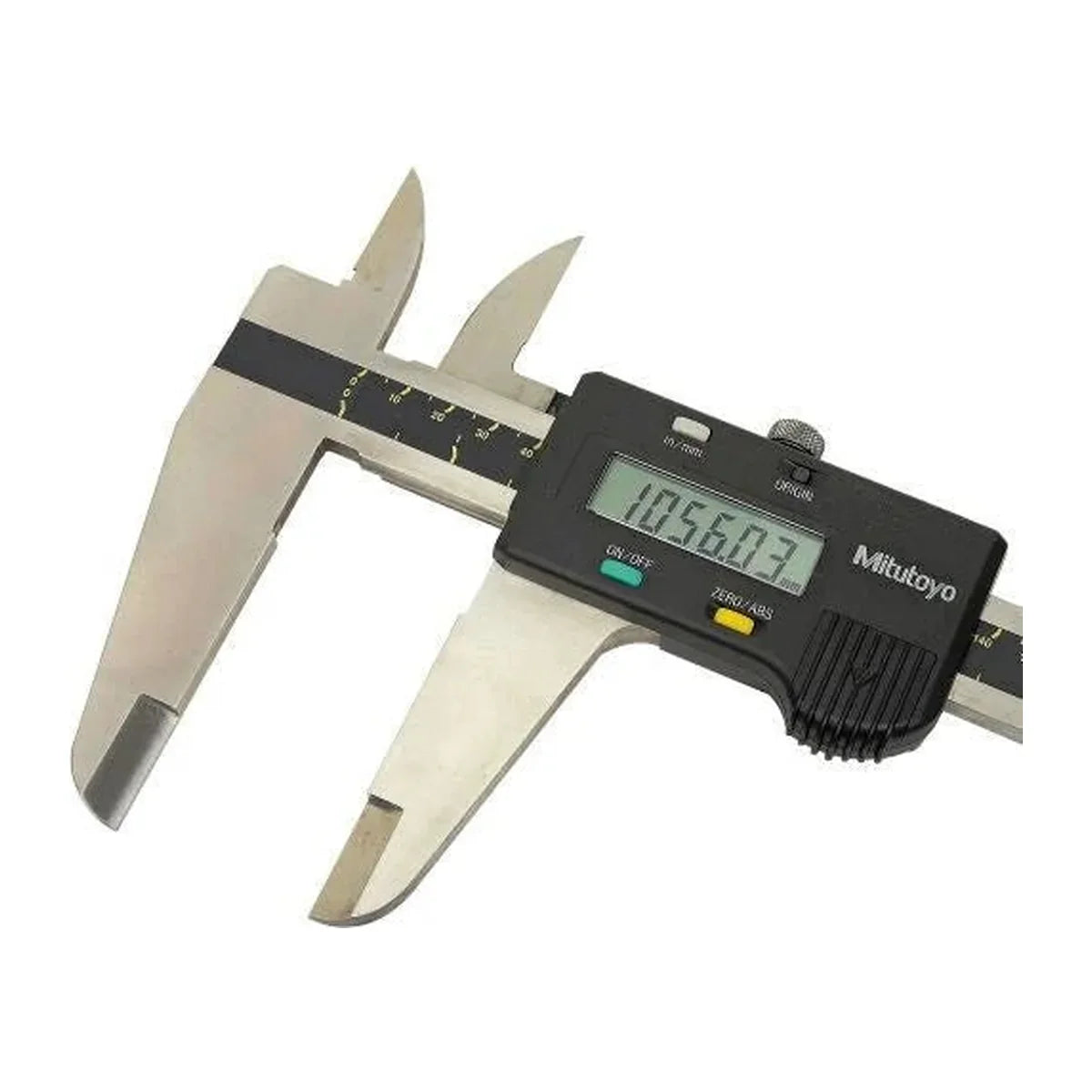

Mitutoyo 0-450mm ABSOLUTE Caliper, SPC Output

The Mitutoyo Series 500 ABSOLUTE Digimatic Caliper 0 to 450mm is a large digital caliper for long parts. It reads in millimetres to 0.01mm, has an ABSOLUTE scale and an SPC data port, and has a robust 6 x 25mm beam for the long range.

Resolution is the smallest step the display shows. Accuracy is how close a reading is to the true size, and it is a separate figure. The resolution is 0.01mm and the accuracy is ±0.05mm. An ABSOLUTE scale remembers where the jaws are, so you do not have to set zero each time you switch on. SPC output is a data port. With an optional cable it sends readings to a computer or data logger. The cable is not included.

Where this product is used

• Measuring long shafts, plates and fabrications up to 450mm
• Toolroom and inspection checks of large parts
• Logging readings to a computer or data logger through the SPC output

Features

• 0 to 450mm range with 0.01mm resolution and ±0.05mm accuracy
• ABSOLUTE scale with no zero setting at power-on and no limit on slider speed
• Robust 6 x 25mm beam for the long range
• Large 10mm display and a smooth, stable slider
• SPC output with optional cable 959149 (1m) or 959150 (2m) sold separately
• Supplied in a fitted plastic case

Key specifications

Supplied with

• Caliper
• SR44 battery
• Fitted plastic case
• Not included: SPC cable 959149 (1m) or 959150 (2m), sold separately
