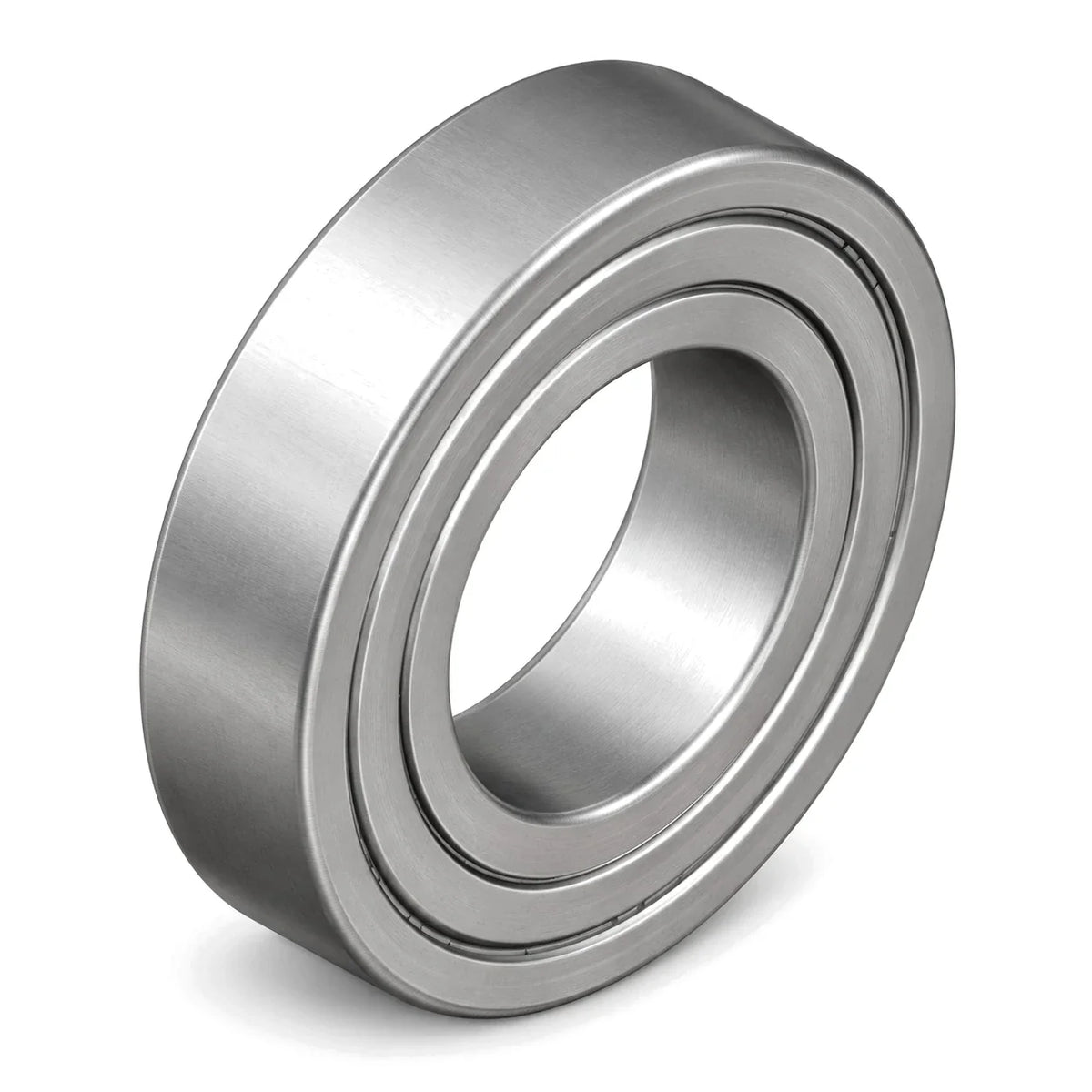

BECO 6901 Stainless Thin Section Ball Bearing, Shielded, 12 x 24 x 6 mm
Available
The BECO stainless steel thin section shielded deep groove ball bearing is a light series for tight radial space. It is made from hardened stainless steel for the rotating parts, with an AISI 304 cage and stainless steel ZZ shields on both sides, and standard radial internal clearance. BECO lists this series as 61900, so for example the 6901 is BECO catalogue size 61901. This range has 2 sizes with bores from 12 to 45 mm.
It is lubricated for life with a grease BECO lists as suitable for the food industry under NSF H1, and is rated for -20°C to +100°C. BECO describes the tempered stainless construction as suited to mildly aggressive applications and does not recommend it where acids, salts or sea water are present. Contact AIMS Industrial if that is your application and we will help you choose.
Where this product is used
- Air conveyors in food processing plants
- Food industry equipment
- Construction industry, including windows, sliding windows and sliding glass doors
- Weather-exposed equipment where a chrome steel bearing would corrode
Features
- Hardened stainless steel for the rotating parts, with an AISI 304 cage
- Standard radial internal clearance
- Operating range of -20°C to +100°C
- Lubricated for life with a grease BECO lists as suitable for the food industry under NSF H1
- Standard bearing boundary dimensions
- Stainless steel ZZ shields on both sides
- Thin section series for tight radial space
Key specifications
| Specification | Detail |
|---|---|
| Type | Single row deep groove ball bearing, thin section |
| Series | 61900 thin section |
| Bore diameter d | 12 to 45 mm |
| Outside diameter D | 24 to 68 mm |
| Width B | 6 to 12 mm |
| Bearing material | Hardened stainless steel rings and balls; AISI 304 cage and shields |
| Radial internal clearance | Standard |
| Sealing | ZZ stainless steel shields, both sides |
| Lubrication | Grease suitable for the food industry (NSF H1), lubricated for life |
| Operating range | -20°C to +100°C |
| Static load rating | 0.97 to 9.8 kN, depending on size |
| Brand | BECO |
Available sizes
| Designation | Bore d (mm) | Outer D (mm) | Width B (mm) | Static load (kN) |
|---|---|---|---|---|
| 6901 | 12 | 24 | 6 | 0.97 |
| 6909 | 45 | 68 | 12 | 9.8 |
Selecting the right option
Select by bore, outside diameter and width, then check the static load rating for your size in the table.
BECO publishes limiting speed and weight for the sealed version of this size only, so those figures are not shown for the shielded bearing. Contact AIMS Industrial to confirm them for your application.
BECO describes the tempered stainless construction as suited to mildly aggressive applications and does not recommend it where acids, salts or sea water are present. Contact AIMS Industrial if that is your application and we will help you choose.
Fitting and use
The bearing is lubricated for life and needs no additional lubrication.
Press the ring that has the interference fit onto its seat, and never push through the balls or the other ring.
Do not use the bearing with acids, salts or sea water present without checking with AIMS Industrial first.
Related products
Also available from BECO: the stainless steel thin section sealed range and the stainless steel shielded range.
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
-
12 x 24 x 6mm bearing
Model Number: SS6901-ZZ_BECO
-
45 x 68 x 12mm bearing
Model Number: SS6909-ZZ_BECO
