Bordo HSS Black Stub Drill Bit - AIMS Industrial Supplies
Bordo HSS Black Stub Drill Bit - AIMS Industrial Supplies

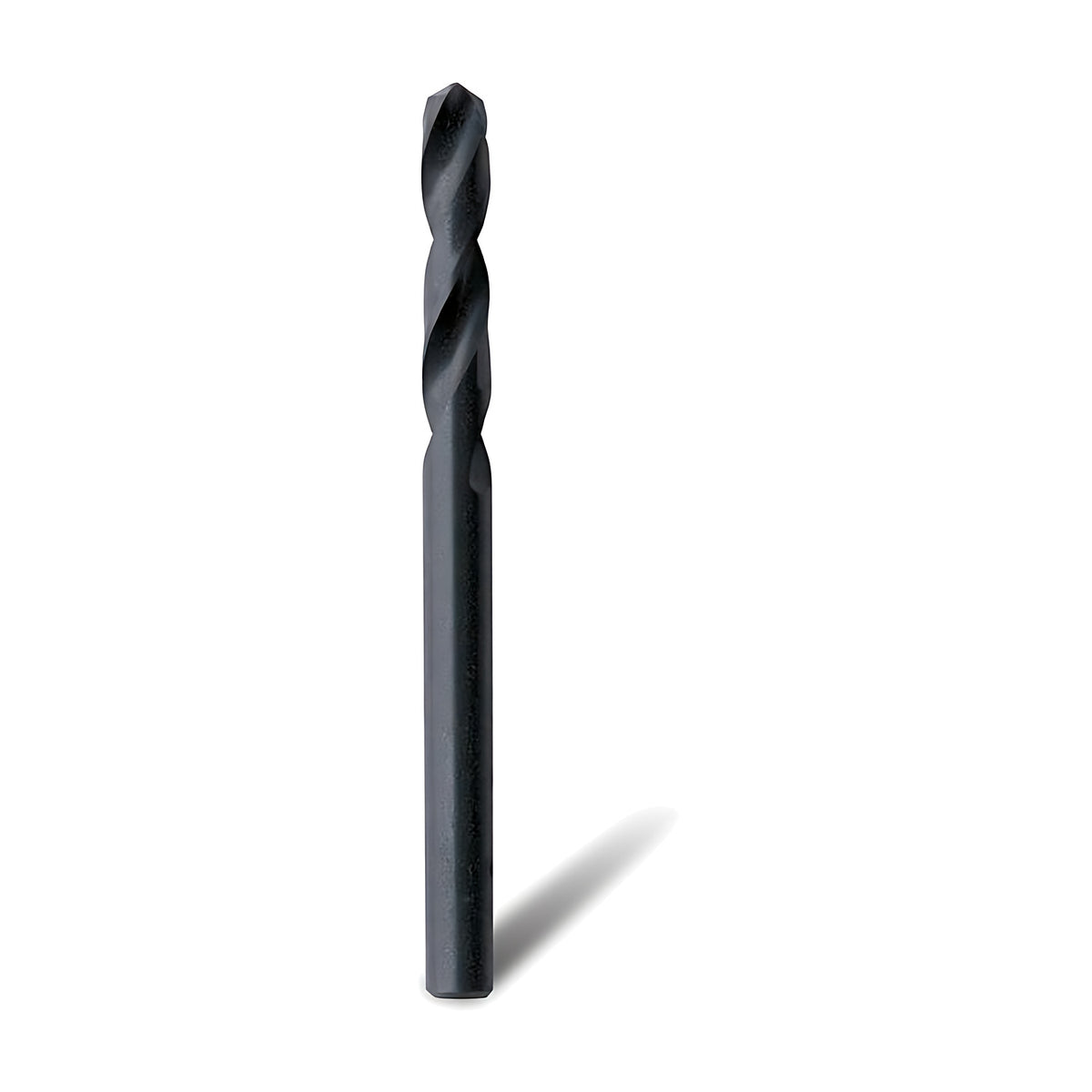

Bordo 3/32" HSS Black Stub Drill Bit

$65.00
$65.00
Inc. GST

Available

The Bordo HSS Black Stub Drill Bit is part of Bordo's Australian drill bit range, engineered for reliable performance in trade and industrial drilling applications.

Key Specifications

Diameter in (mm) 12.7
Diameter (inch) 1/2
Flute Type 30° Helix
Flute (mm) 57
Overall Length (OL) 95
Type of Point 135° Split Point

Product Features

  • Black Finish Stub Drills (also called blue finish) achieve their distinctive colour by steam tempering, a thermal process resulting in a porous tool coating
Product Highlights −

• Stub drills (screw machine twist drills) have a shorter overall length than Twist drills for maximum rigidity and longer tool life

• Split point is self centering and the short distance from the drill axis to the outer corners results in faster penetration, reducing the need for end thrust

• They are designed primarily for machining operations in lathes (screw machines) but can also be used in manual hand held drills

Stub Drills have two helical flutes with 30 degrees of helix angle. This provides fast chip ejection and very stable drilling operation. 135° Split Point (crankshaft point).

Resources

Payment & Security
  • Apple Pay
  • Google Pay
  • American Express
  • Mastercard
  • Visa
  • PayPal
  • Union Pay

Secure Checkout. We do not store credit card details

Available Options:
  • 1/2mm drill bit
    Model Number: 43832
  • 1/4mm drill bit
    Model Number: 43834
  • 1/8mm drill bit
    Model Number: 43838
  • 1/16mm drill bit
    Model Number: 43846
  • 3/8mm drill bit
    Model Number: 43898
  • 3/16mm drill bit
    Model Number: 43906
  • 3/32mm drill bit
    Model Number: 2020-3/32
  • 5/16mm drill bit
    Model Number: 43967
  • 5/32mm drill bit
    Model Number: 2020-5/32
  • 5/64mm drill bit
    Model Number: 2020-5/64
  • 7/16mm drill bit
    Model Number: 44028
  • 7/32mm drill bit
    Model Number: 2020-7/32
  • 7/64mm drill bit
    Model Number: 2020-7/64
  • 9/32mm drill bit
    Model Number: 2020-9/32
  • 9/64mm drill bit
    Model Number: 2020-9/64
  • 11/32mm drill bit
    Model Number: 2020-11/32
  • 11/64mm drill bit
    Model Number: 2020-11/64
  • 13/32mm drill bit
    Model Number: 2020-13/32
  • 13/64mm drill bit
    Model Number: 2020-13/64
  • 15/32mm drill bit
    Model Number: 2020-15/32
  • 15/64mm drill bit
    Model Number: 2020-15/64
  • 17/64mm drill bit
    Model Number: 2020-17/64
  • 19/64mm drill bit
    Model Number: 2020-19/64
  • 21/64mm drill bit
    Model Number: 2020-21/64
  • 23/64mm drill bit
    Model Number: 2020-23/64
  • 25/64mm drill bit
    Model Number: 2020-25/64
  • 27/64mm drill bit
    Model Number: 2020-27/64
  • 29/64mm drill bit
    Model Number: 2020-29/64
  • 31/64mm drill bit
    Model Number: 2020-31/64
