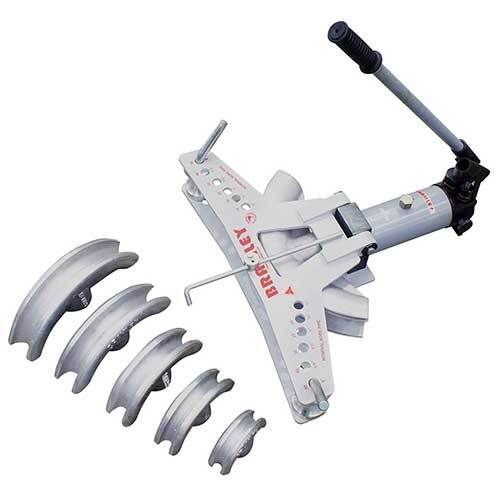

Bramley PB2 Hydraulic Pipe Bender with Six Formers

Bramley PB2 is a hydraulic pipe bender with a pipe capacity of 1/2" to 2" N.B. It has a solid frame fabrication that eliminates flexing during bending, and lightweight aluminium alloy formers with a large angle of arc to support the pipe during bending. The formers have an elliptical cross section to minimise flattening of the bend.

It is supplied with six formers, two bobbins (support rollers) and pins, and the shipping weight is 64kg.

Where this product is used

• Bending steel pipe from 1/2" to 2" N.B
• Pipe bending

Features

• 1/2" to 2" N.B. pipe capacity
• Elliptical section formers minimise flattening of the bend
• Lightweight aluminium alloy formers with a large angle of arc support the pipe during bending
• Solid frame fabrication eliminates flexing during bending
• Supplied with six formers, two bobbins (support rollers) and pins
• Former sizes from 1/2" to 2"

Key specifications

Choosing the right option

Choose the bender by the largest pipe you bend and whether you want an electric or a hydraulic ram. For the electric version see the Bramley PB2-E.

See also: Bramley replacement pipe bender formers.
