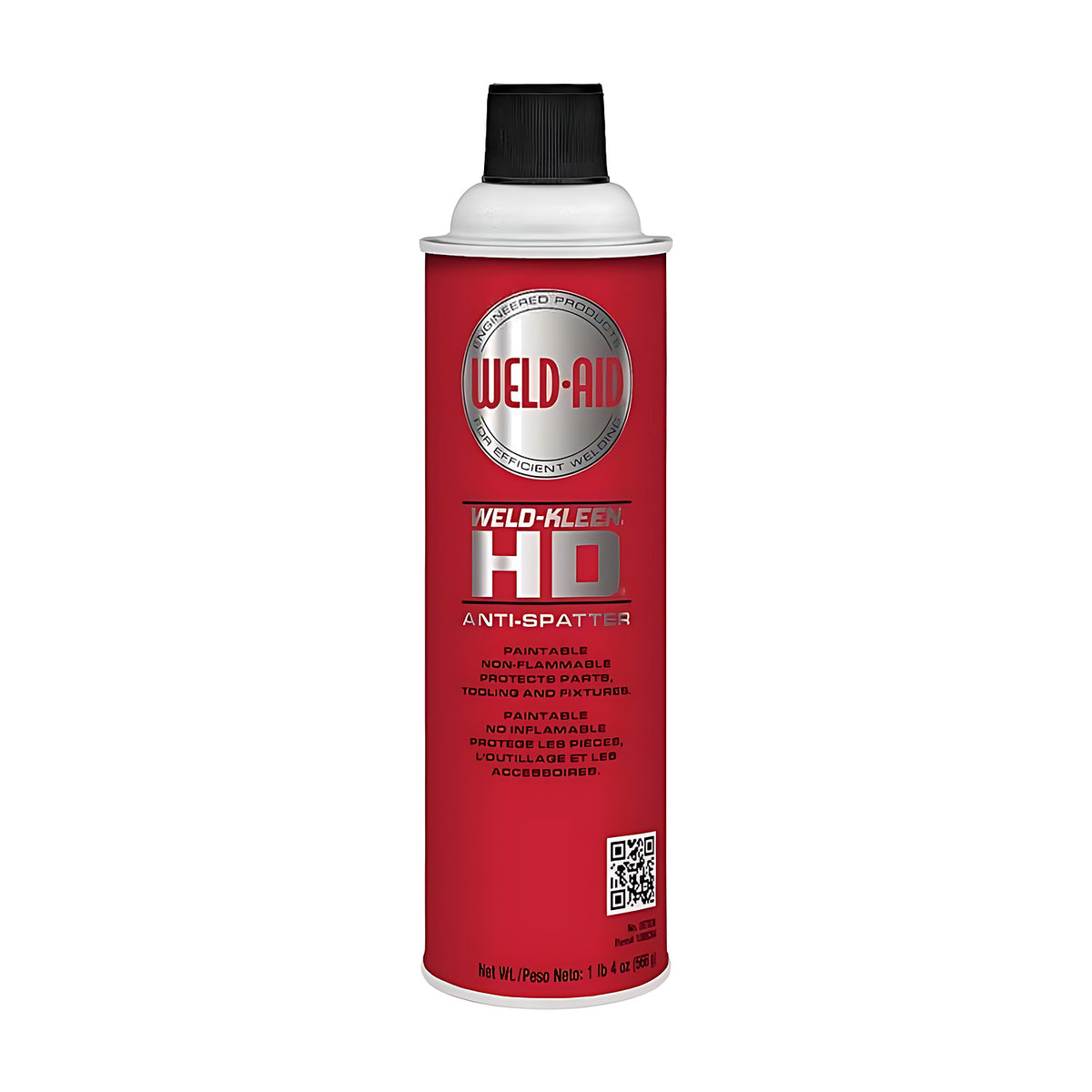

CRC Weld-Aid Weld-Kleen HD Anti-Spatter 20oz (566g)

Weld-Aid Weld-Kleen HD is a solvent-based anti-spatter supplied as a 20 oz (566 g) aerosol. CRC describes it as a heavy duty base metal treatment that is quick drying and accepts pre-heating, and the safety data sheet lists it as a protectant for parts, fixtures and tooling against spatter build-up.

It is a clear, colourless liquid with an ether-like odour. The safety data sheet lists dichloromethane (methylene chloride) at 80 to 90%, carbon dioxide at 5 to 10% and safflower oil at 5 to 10%, and classifies the product as hazardous. The hazards are set out below.

Where this product is used

• Heavy duty base metal treatment (CRC wording)
• Protecting parts, clamps, tooling and fixtures from spatter build-up
• Work that is pre-heated before welding, as CRC lists the product as accepting pre-heating

Features

• Solvent-based anti-spatter in an aerosol can
• Quick drying, as described by CRC
• Accepts pre-heating, as listed by CRC
• Safety data sheet lists it as non flammable but states vapour may form explosive mixtures with air
• CRC page lists it as a paintable spray
• Clear, colourless liquid with an ether-like odour

Key specifications

Selecting the right option

Weld-Kleen HD is the solvent-based aerosol. CRC lists a water-based liquid as CRC Weld-Aid Weld-Kleen 350 Anti-Spatter, a dip gel as CRC Weld-Aid Nozzle-Dip HD Anti-Spatter Dip Gel 32oz (946ml) and an aerosol for nozzles as CRC Weld-Aid Nozzle-Kleen #2 Anti-Spatter 16oz (453g). Check each product's safety data sheet before choosing.

Using it

CRC's documents give no directions for use, so none are published here. Use in well ventilated areas, as the safety data sheet directs.

Storage and handling

Protect from sunlight and do not expose to temperatures exceeding 50 °C. Store in a cool, dry, well ventilated area. The can is a pressurised container.

Limits and safety

Warning. Dangerous good: UN 1950, Aerosols, Class 2.2. The safety data sheet gives a poison schedule of Schedule 5 (S5). It classifies this product as hazardous: pressurised container, may burst if heated; causes skin irritation; causes serious eye irritation; may cause drowsiness or dizziness; suspected of causing cancer. It is not classified as an environmental hazard. When heated to decomposition it may give off toxic gases (chlorides, phosgene, carbon oxides, hydrocarbons). Keep away from oxidising agents (for example hypochlorites), acids, alkalis, metals, heat and ignition sources. The safety data sheet lists splash-proof goggles, PVA or Viton gloves and, where there is an inhalation risk, a respirator. Read the safety data sheet before use.

Frequently asked questions

Is Weld-Kleen HD flammable?

CRC lists it as non-flammable and the safety data sheet gives the flash point as not relevant. The safety data sheet also states vapour may form explosive mixtures with air, and the pressurised can may burst if heated.

What is Weld-Kleen HD based on?

CRC describes it as solvent based. The safety data sheet lists dichloromethane (80 to 90%), carbon dioxide (5 to 10%) and safflower oil (5 to 10%).

Is Weld-Kleen HD a dangerous good?

Yes. The safety data sheet lists UN 1950, Aerosols, Class 2.2 under ADG, IMDG and IATA.

What are the health hazards of Weld-Kleen HD?

The signal word is Warning. The safety data sheet states it causes skin irritation, causes serious eye irritation, may cause drowsiness or dizziness, and is suspected of causing cancer.

Does Weld-Kleen HD accept pre-heating?

CRC lists accepts pre-heating as a feature of this product.

What size is the Weld-Kleen HD can?

20 oz (566 g), and CRC packs it 6 per case.
