Mitutoyo 0-12" 300mm Multi-function Height Gauge

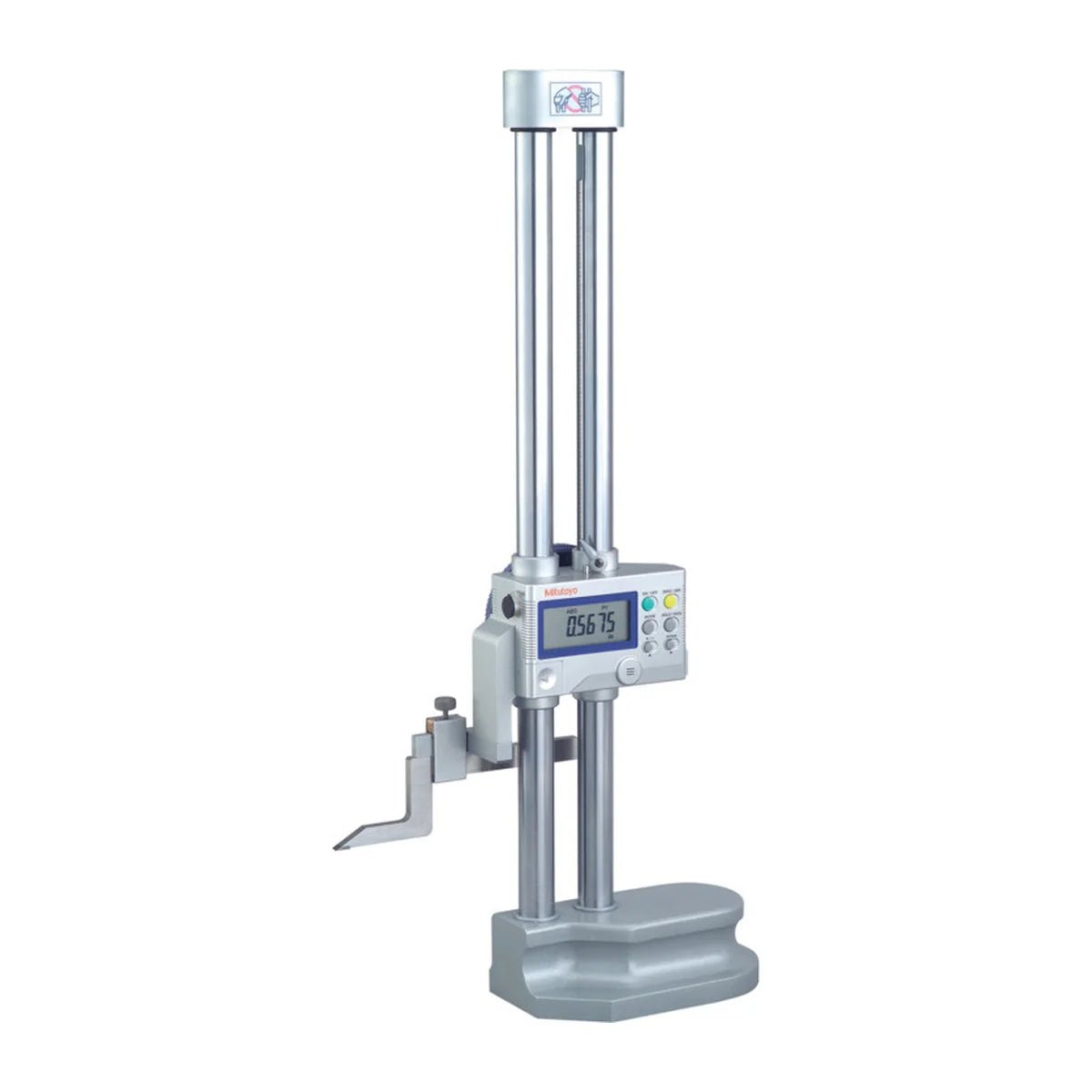

The Mitutoyo Series 192 Digimatic Height Gauge, multi-function type, measures 0 to 12" (0 to 300mm) and reads in inches or millimetres. It has a double-column body and a 7-digit display with 11mm characters. It has a Digimatic (SPC) data output, two preset reference heights and a switchable resolution of .0005" (0.01mm) or .0002" (0.005mm).

Resolution is the smallest step the display shows, and accuracy is a separate figure. The accuracy here is ±.001" (±0.02mm). The multi-function type is built to work with an optional touch signal probe (192-007 metric or 192-008 inch) for steps and inside and outside widths. The probe is not included. A cable is needed for the data output and is also not included. A carbide-tipped scriber and scriber clamp are supplied.

Where this product is used

• Height, step and groove measuring on a surface plate
• Inspection of machined parts with preset reference heights
• Logging readings through the data output with an optional cable
• Measuring steps and widths with the optional touch signal probe

Features

• Double-column body for rigid, repeatable measuring
• Resolution switchable between .0005" (0.01mm) and .0002" (0.005mm)
• Accuracy of ±.001" (±0.02mm)
• 7-digit display with 11mm characters
• Two preset reference heights and probe-ball diameter correction
• Coarse and fine feed switching
• Digimatic data output with optional cable 905338 (1m) or 905409 (2m)
• Carbide-tipped scriber and scriber clamp supplied
• Response speed of about 500mm/s

Key specifications

Supplied with

• Height gauge
• Carbide-tipped scriber and scriber clamp
• SR44 battery
• Not included: touch signal probe 192-008, data cable 905338 (1m) or 905409 (2m)
