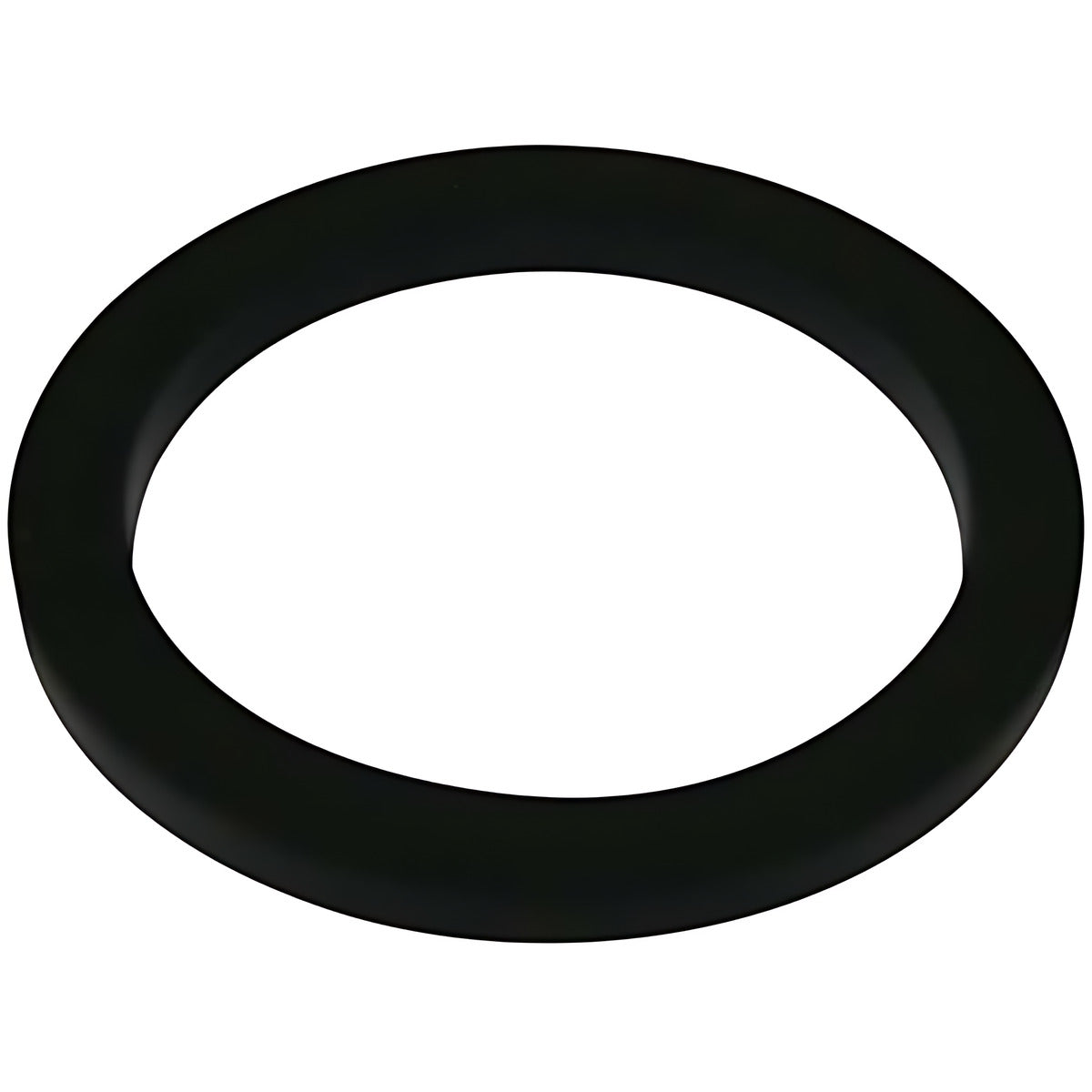

Dixon 40MP-E100W 1" Black EPDM Wine Gasket

This Dixon EPDM wine gasket belongs to Dixon's wine fittings range and is listed in the 1 in to 4 in sizes. This listing covers 1 in, 2 in, 2-1/2 in and 3 in (manufacturer-stated).

Dixon lists the EPDM wine gasket beside its wine weld males, wine weld liners and brass wine weld nuts in its Hygienic Product Catalogue. The part numbers are in the 40MP-E...W series, for example 40MP-E100W for 1 in.

Where this product is used

• Replacement gasket for Dixon wine fittings (weld male, liner and nut sets) in the matching size (manufacturer-stated).
• Wine hose assembly connections that use Dixon wine fittings.

Features

• Material: EPDM (manufacturer-stated)
• Part number series: 40MP-E...W (manufacturer-stated)
• Listed with Dixon wine fittings: weld male, weld liner and brass weld nut (manufacturer-stated)
• Sizes in this listing: 1 in, 2 in, 2-1/2 in, 3 in

Common specifications

Key specifications

Dixon's Hygienic Product Catalogue also lists 1-1/2 in (40MP-E150W) and 4 in (40MP-E400W) wine gaskets that are not in this listing.

Selecting the right option

Choose the gasket by the size of your wine fitting, and confirm that the fitting is from the Dixon wine range before you rely on it as a replacement. Dixon's compound guide rates EPDM as satisfactory (A) for whiskey and wines, and as unsatisfactory (D) for gasoline and kerosene (manufacturer-stated). Those ratings assume static conditions at ambient temperature, and Dixon describes the guide as general only, with suitability for a specific application resting with the end user (manufacturer-stated).
