Dixon BYLF006 8 mm Brass Y Line Strainer BSP
Available

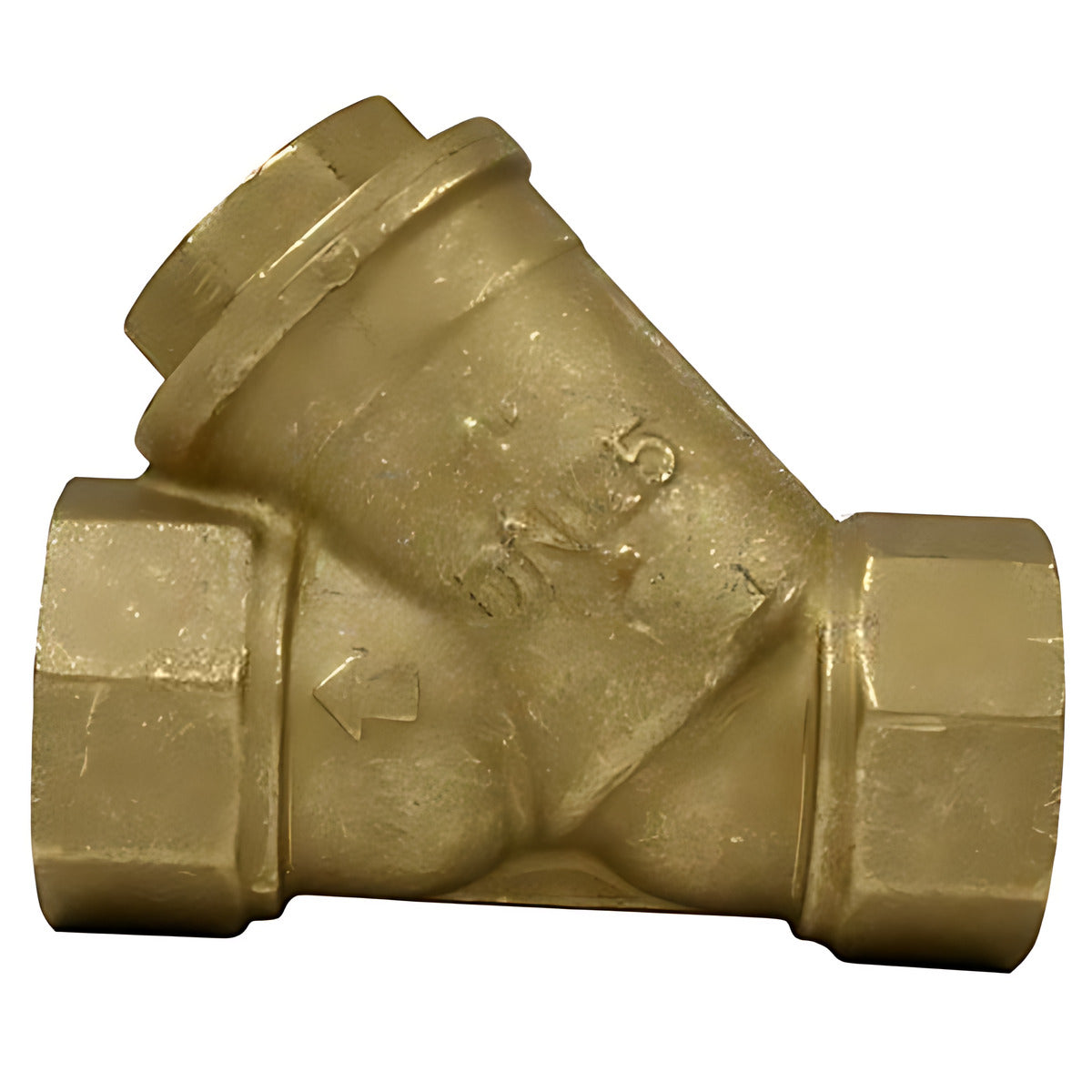

This Dixon Y line strainer has a cast brass body, a 316 stainless steel mesh and female BSP connections at both ends. This listing covers 8 sizes, from 8 mm to 2", and every size has a 500 micron degree of filtration.
Dixon rates the range at a maximum of 290 PSI (20 bar), with -15 to 110 degrees C for air and 0 to 90 degrees C for water. Dixon lists it for domestic water services, heating and air-conditioning plants and compressed air systems (manufacturer-stated).
Where this product is used
- Domestic water services, heating and air-conditioning plants and compressed air systems (manufacturer-stated).
- A strainer ahead of a valve, meter or pump, to catch particles before they reach it.
Features
- Cast brass body with a 316 stainless steel mesh (manufacturer-stated)
- Female x female BSP connections, equivalent to DIN259 and BS2779 (manufacturer-stated)
- Degree of filtration: 500 micron (manufacturer-stated)
- Maximum working pressure 290 PSI (20 bar) (manufacturer-stated)
- Air -15 to 110 degrees C; water 0 to 90 degrees C (manufacturer-stated)
Common specifications
| Specification | Detail |
|---|---|
| Body | Cast brass |
| Mesh | 316 stainless steel |
| Degree of filtration | 500 micron |
| End connection | Female x female BSP, equivalent to DIN259 and BS2779 (manufacturer-stated) |
| Working pressure | Maximum 290 PSI (20 bar) |
| Temperature, air | -15 to 110 degrees C |
| Temperature, water | 0 to 90 degrees C |
Key specifications
| Dixon part number | Size | Working pressure | Degree of filtration |
|---|---|---|---|
| BYLF006 | 8 mm | 290 PSI (20 bar) | 500 micron |
| BYLF010 | 3/8" | 290 PSI (20 bar) | 500 micron |
| BYLF012 | 1/2" | 290 PSI (20 bar) | 500 micron |
| BYLF020 | 3/4" | 290 PSI (20 bar) | 500 micron |
| BYLF025 | 1" | 290 PSI (20 bar) | 500 micron |
| BYLF032 | 1-1/4" | 290 PSI (20 bar) | 500 micron |
| BYLF040 | 1-1/2" | 290 PSI (20 bar) | 500 micron |
| BYLF050 | 2" | 290 PSI (20 bar) | 500 micron |
Dixon's catalogue lists the smallest strainer as 8 mm and prints its inch size as 5/16 in. The store option for BYLF006 shows 1/4 in, so this page gives the 8 mm size only for that part.
Selecting the right option
Match the strainer to the line size and check that the BSP thread on your fittings suits a female BSP connection. Look at the mesh from time to time, because a blocked mesh restricts flow. Dixon lists its all stainless steel strainer for water, oil, gas and steam: Dixon Y Line Strainer Screwed Female BSP 316 Stainless Steel.
