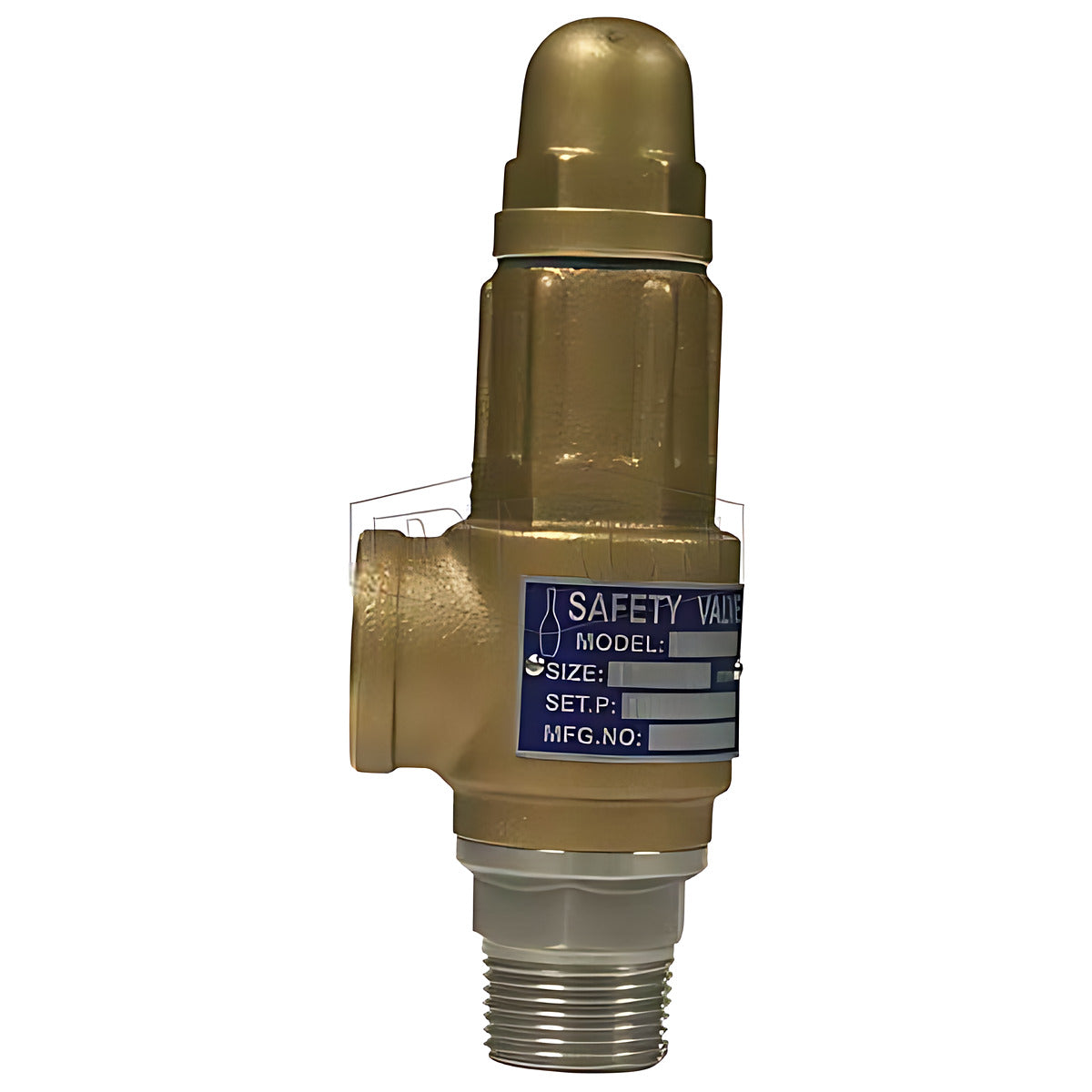

Dixon VR-268-25 25mm Relief Valve w/ Side Outlet Bronze
Regular price
$463.00
Sale price
$463.00
Regular price
Inc. GST
Available
Rated to 145, so you can match it to line pressure with confidence. Service temperature -45°C to 185°C, suitable for the conditions on real industrial sites. Bronze construction handles the temperature, pressure and media of industrial duty. This relief valve has a closed side outlet with right angle discharge. The outlet is female threaded and of the same size as the inlet. Construction. Bronze body, bronze seat, SS304 Trim. BSP male end connection.
Key Specifications
| Size | 15 mm / 20 mm / 25 mm / 32 mm / 40 mm / 50 mm |
| Pressure Rating (PSI) | 145 |
| Temperature Range | -45°C to 185°C |
| Material | Bronze |
| Pressure Setting | 145 PSI (1000 kPa) |
Where This Is Used
- Suitable for discharge of steam, water, oil, air and liquids non-injurious to copper alloys.
Features
- This relief valve has a closed side outlet with right angle discharge.
- The outlet is female threaded and of the same size as the inlet.
Product Highlights
Couldn't load pickup availability
Payment & Security
Payment methods
Secure Checkout. We do not store credit card details
Available Options:
-
15
Model Number: VR-268-15
-
20
Model Number: VR-268-20
-
25
Model Number: VR-268-25
-
32
Model Number: VR-268-32
-
40
Model Number: VR-268-40
-
50
Model Number: VR-268-50
