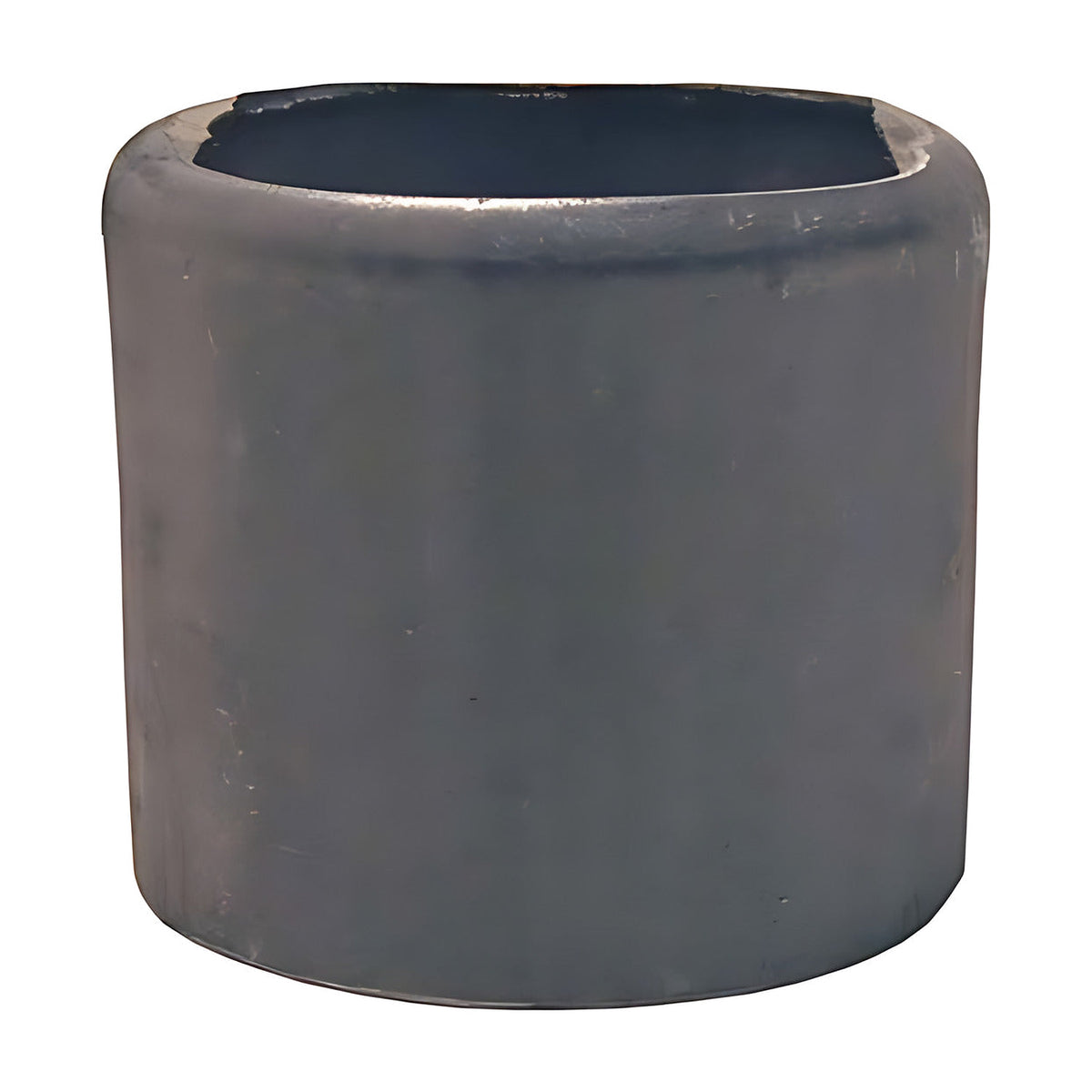

Dixon GAS2709NO EZ Boss-Lock Notched Type C Ferrule Stainless Steel, 50 mm stem
Available
This Dixon notched ferrule is part of the EZ Boss-Lock notched stem and ferrule system. Dixon lists seven ferrules, each for a hose outside diameter (OD) range, across four stem sizes: 40 mm, 50 mm, 75 mm and 100 mm (manufacturer-stated).
The notched design lets you remove the stem from a damaged hose by cutting away the ferrule without necessarily damaging the fitting; after inspection the stem can be reused with a new ferrule (manufacturer-stated). Dixon lists the ferrule as 304 stainless steel, and states that Dixon stems and ferrules are designed to be used together as a coupling system (manufacturer-stated).
Where this product is used
- Fitting an EZ Boss-Lock notched Type C coupler or Type E adaptor stem to hose by swaging or crimping (manufacturer-stated).
- Re-hosing: stock one stem and two ferrules to cover the same hose range with less inventory (manufacturer-stated).
Features
- Notched ferrule: the stem can be recovered by cutting the ferrule away (manufacturer-stated)
- 304 stainless steel ferrule (manufacturer-stated)
- Swaged or crimped assemblies (manufacturer-stated)
- Seven ferrules covering hose OD from 49.21 mm to 120.25 mm
Common specifications
| Specification | Detail |
|---|---|
| Ferrule material | 304 stainless steel (manufacturer-stated) |
| Used with | EZ Boss-Lock notched Type C stems (RC...EZNO) and Type E stems (RE...EZNO) |
| Stem sizes | 40, 50, 75 and 100 mm |
| Hose OD range | 49.21 mm to 120.25 mm across the seven ferrules |
Key specifications
| Dixon part number | Stem size (mm) | Hose OD | Type C stem | Type E stem |
|---|---|---|---|---|
| GAS2334NO | 40 | 49.21 to 55.56 mm | RC150EZNO | RE150EZNO |
| GAS2370NO | 40 | 52.39 to 59.53 mm | RC150EZNO | RE150EZNO |
| GAS2709NO | 50 | 62.71 to 68.26 mm | RC200EZNO | RE200EZNO |
| GAS2885NO | 50 | 67.47 to 72.23 mm | RC200EZNO | RE200EZNO |
| GAS3760NO | 75 | 88.11 to 94.46 mm | RC300EZNO | RE300EZNO |
| GAS3885NO | 75 | up to 97.63 mm | RC300EZNO | RE300EZNO |
| GAS5010NO | 100 | 117.48 to 120.25 mm | RC400EZNO | RE400EZNO |
Dixon's metric table prints the lower hose OD limit of GAS3885NO as 94.45 mm, which overlaps the upper limit of GAS3760NO (94.46 mm); other Dixon sources give a different lower limit. The lower limit is not shown here, so confirm it with us before you order a ferrule for hose around 94 to 95 mm OD. The same ferrule appears on the same row as both the Type C stem and the Type E stem.
Selecting the right option
Select by measured hose OD, not by hose ID, and pick the ferrule whose range contains it. Two ferrules cover each of the 40, 50 and 75 mm stem sizes, so check which side of the split your hose falls on. You must buy a stem (Type C coupler or Type E adaptor) as well as the ferrule to make an assembly (manufacturer-stated). Do not mix with other manufacturers' ferrules, because Dixon states stems and ferrules are designed to work as a system (manufacturer-stated).
