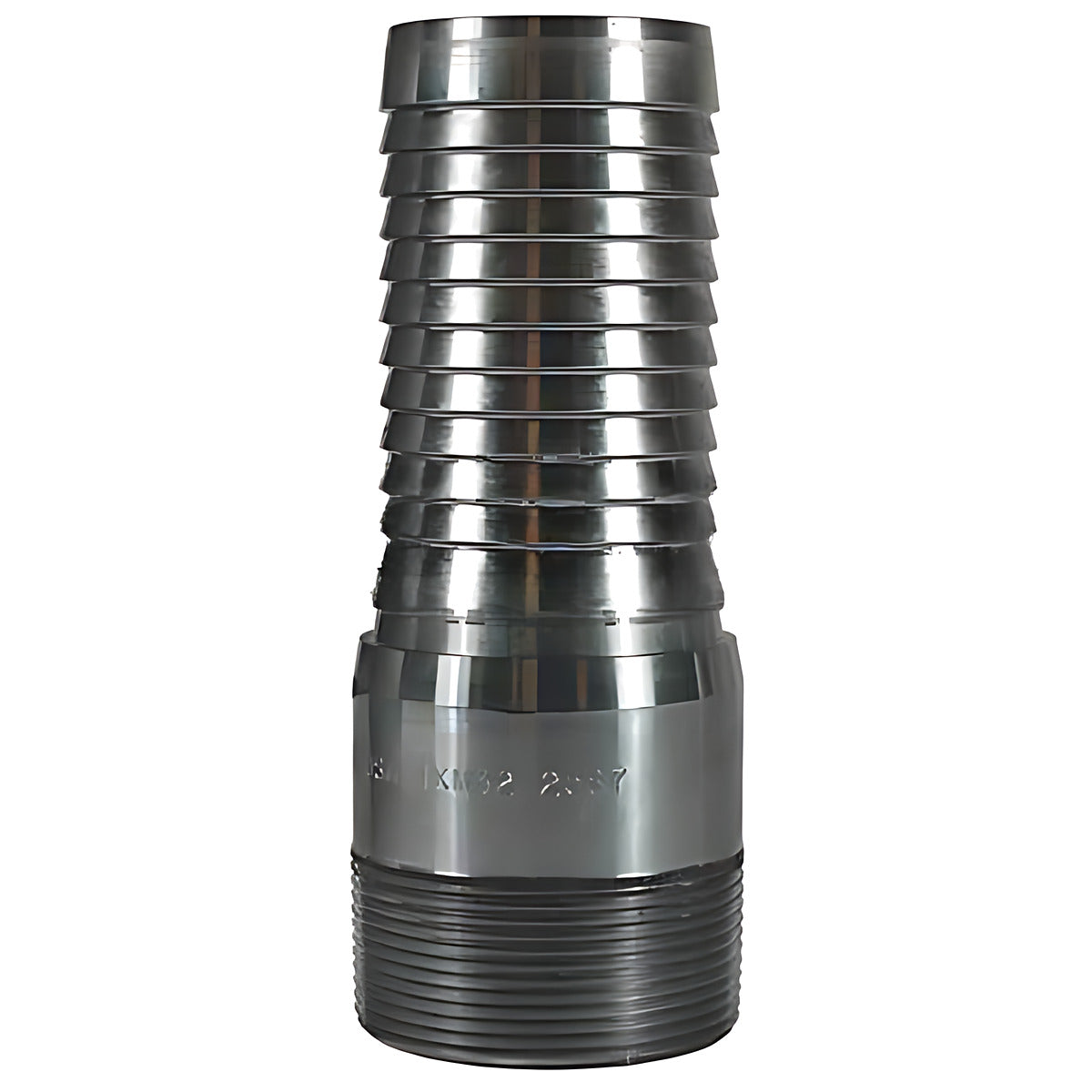

Dixon IXM16A 25 mm (1") Internal Expansion Stem BSP Male Pipe End
Out of stock
This Dixon Holedall internal expansion stem is carbon steel with a BSP male pipe end. The stem sits inside the hose and is held by an internally expanded ferrule. Dixon recommends the style for concrete placement, plaster and grout, food, air and pharmaceutical hose, and wherever flow capacity matters (manufacturer-stated). Three sizes are listed here: IXM16A for 25 mm (1"), IXM40A for 65 mm (2-1/2") and IXM48A for 75 mm (3") hose ID.
Dixon's maximum recommended working pressure for internally expanded IXM, IXV and IXH couplings is 600 PSI for hose from 25 mm to 75 mm, at 21 degrees C ambient (manufacturer-stated). For hose that uses ferrules IXF48-3 to IXF48-5, contact Dixon for the working pressure. Dixon states that Holedall stems and ferrules are designed to be used together as a coupling system and says not to use other manufacturers' stems or ferrules, for safety reasons. A Holedall internally expanded coupling needs strict adherence to the ferrule OD range for each hose end (manufacturer-stated).
Where this product is used
- Concrete placement, plaster and grout, food, air and pharmaceutical hose (manufacturer-stated).
- Hose ends that need a BSP male thread and a large bore through the fitting.
Features
- Carbon steel internal expansion stem with BSP male pipe end (manufacturer-stated)
- Works with Holedall IXF internal expansion ferrules (manufacturer-stated)
- Working pressure: 600 PSI at 21 degrees C for 25 to 75 mm hose (manufacturer-stated)
- One expansion tool is needed for each hose ID (manufacturer-stated)
- Not for steam service at any pressure (manufacturer-stated)
Common specifications
| Specification | Detail |
|---|---|
| Material | Carbon steel |
| End connection | BSP male pipe end |
| Hose ID | 25 mm (1"), 65 mm (2-1/2") and 75 mm (3") |
| Working pressure | 600 PSI at 21 degrees C ambient; contact Dixon for hose that uses ferrules IXF48-3 to IXF48-5 |
| Steam | Not for steam service at any pressure |
Key specifications
| Dixon part number | Hose ID | Working pressure at 21 degrees C |
|---|---|---|
| IXM16A | 25 mm (1") | 600 PSI |
| IXM40A | 65 mm (2-1/2") | 600 PSI |
| IXM48A | 75 mm (3") | 600 PSI (contact Dixon if ferrules IXF48-3 to IXF48-5) |
Pressure figures are from the Holedall maximum recommended working pressure chart. Dixon lists further BSP male sizes (IXM20A, IXM24A, IXM32A and IXM64A) that are not on this page.
Selecting the right option
Order the stem by the hose inside diameter and the ferrule by the measured hose outside diameter; Dixon recommends a diameter tape for that measurement (manufacturer-stated). One expansion tool is needed for each hose ID. Holedall couplings are not for steam at any pressure, and Dixon lists them as unsuitable for cable-reinforced high-pressure hose and 4-braid or 6-braid wire hydraulic hose (manufacturer-stated). Dixon recommends testing each hose assembly to 1-1/2 times its working pressure for 15 minutes without leakage or coupling movement (manufacturer-stated).
Related products
Related Dixon products: Dixon Internal Expansion Stem Grooved End Stem and Dixon Internal Expansion Stem Bevelled End.
