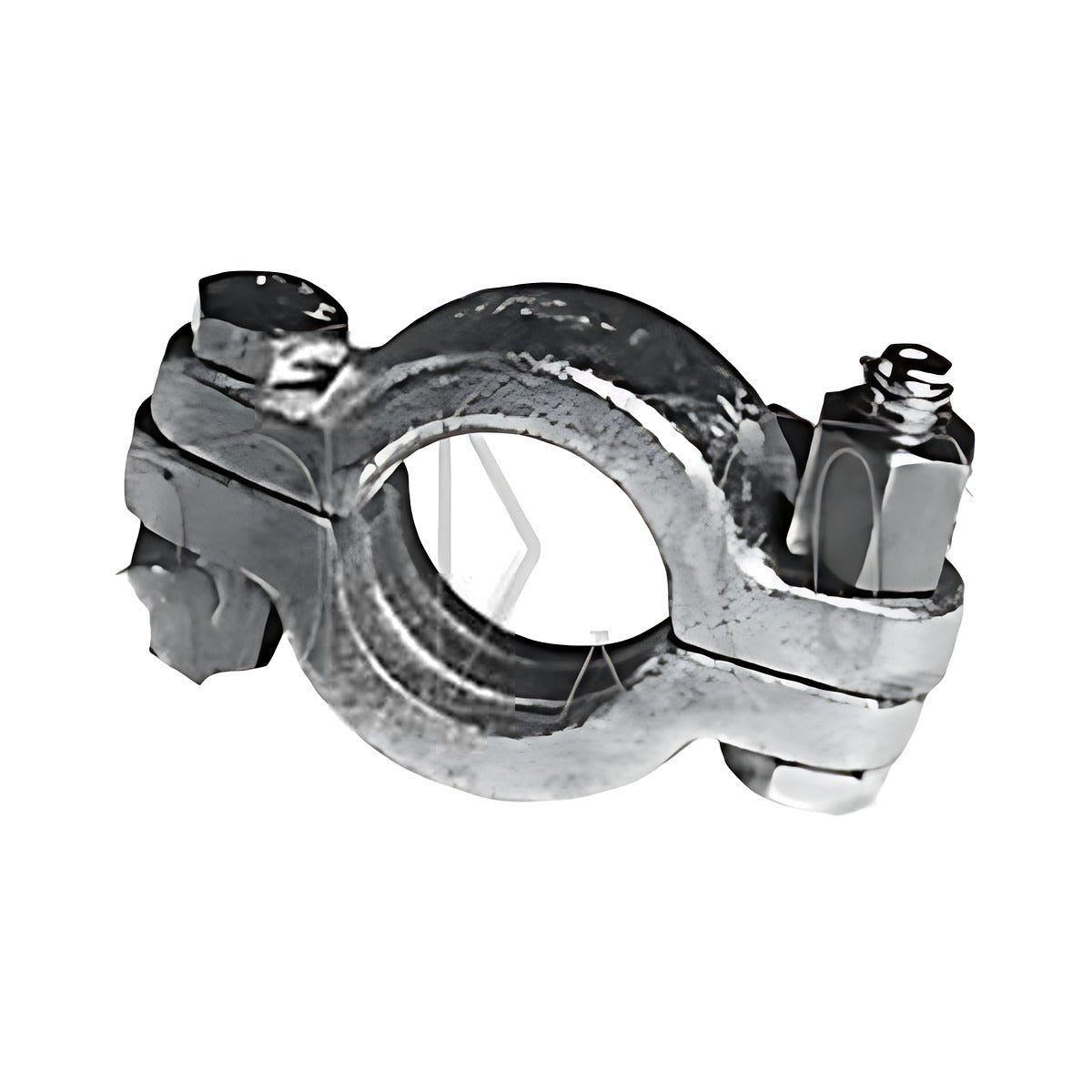

Dixon 08/023/13/000 1" ID Minsup Double Bolt Clamp with Saddle SG Iron

This Dixon Minsup double-bolt clamp has a saddle and is listed as SG iron. It clamps hose onto Minsup hose tails and fittings, and comes in three sizes: 08/023/14/000 for 1/2" nominal ID, 08/023/15/000 for 3/4" and 08/023/13/000 for 1".

Dixon selects these clamps by hose outside diameter: 24 to 27 mm for the 1/2" clamp, 31 to 33 mm for the 3/4" clamp and 37 to 39 mm for the 1" clamp. Bolt torque is 18.4 ft-lb (25 Nm) for the two smaller sizes and 25.8 ft-lb (35 Nm) for the 1" clamp (manufacturer-stated).

Where this product is used

• Securing rubber or PVC hose to Minsup hose tails on mining, air, water and industrial lines.
• Hose assemblies where a double-bolt clamp is wanted with a saddle under the bolts.

Features

• Double-bolt hose clamp with saddle, SG iron (from the product title) (manufacturer-stated)
• Selected by hose outside diameter: 24 to 27 mm, 31 to 33 mm or 37 to 39 mm (manufacturer-stated)
• Bolt torque: 18.4 ft-lb (25 Nm) for 1/2" and 3/4"; 25.8 ft-lb (35 Nm) for 1" (manufacturer-stated)
• Bolt-type clamps should be re-tensioned regularly (manufacturer-stated)

Common specifications

Key specifications

Hose OD ranges and torques are the figures in Dixon's catalogue.

Selecting the right option

Check the hose outside diameter over the hose tail to select the clamp, then tighten to the table torque. Dixon says that choosing the correct clamping device is critical to the performance and safety of a hose assembly, that bolt-type clamps should be re-tensioned regularly, and that retaining devices such as clips, chains or cables should be used for extra safety (manufacturer-stated).
