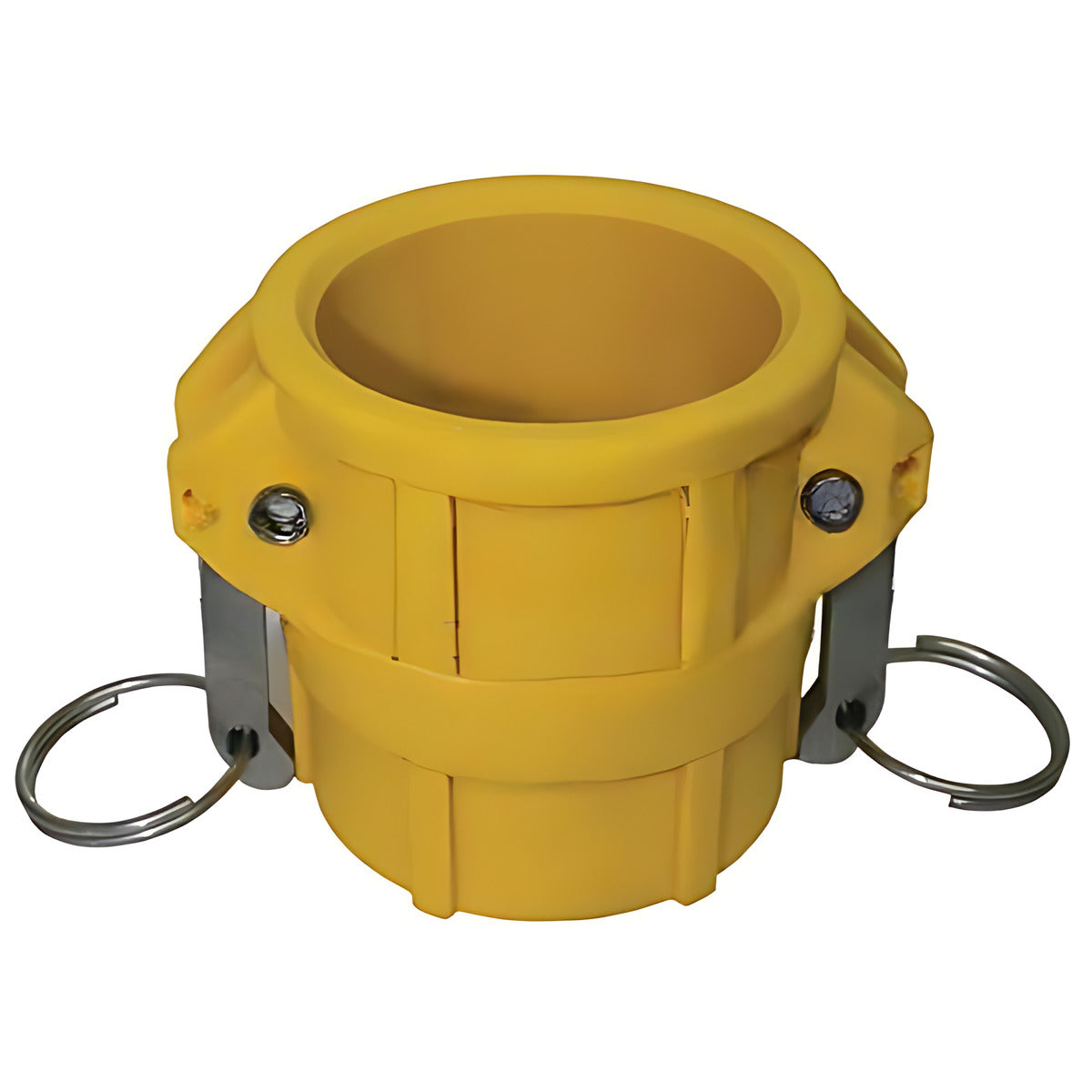

Dixon 20mm Nyglass Cam & Groove Type D Coupler x Female BSP NGD075A
Available
Nyglass construction handles the temperature, pressure and media of industrial duty. Seal: EPDM. The Dixon Cam & Groove coupling is a reliable quick connect coupling for use on a hose, pipe, tubing and tanks conveying a wide variety of liquids, dry bulk materials and vapors including cooling water, fuels, chemicals, cosmetics, food products, adhesives, dyes, pharmaceuticals, pellets and much more. Designed for use with liquids. Nyglass 30% glass filled body with stainless steel levers and pins. The coupling is connected by simply opening the coupler arms and inserting the adapter into the coupler. The two cam arms are then closed under normal hand pressure to complete the joint. The coupler portion of the 15mm size uses the 20mm standard body size. Under no circumstances should cam and groove couplings be used for compressed air or steam service! Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F/21°C with a standard seal installed. Nyglass cam & groove should not be mixed with aluminum fittings.
Key Specifications
| Size | 15 mm / 20 mm / 25 mm / 32 mm / 40 mm / 50 mm / 75 mm / 100 mm |
| Pressure Rating | 100 PSI at -18°C, 125 PSI at 21°C, 70 PSI at 65°C / 70 PSI at -18°C, 90 PSI at 21°C, 50 PSI at 65°C |
| Material | Nyglass |
| Seal | EPDM |
| Pressure Rating at -18°c | 100 psi / 70 psi |
| Pressure Rating at 21°c | 125 psi / 90 psi |
| Pressure Rating at 65°c | 70 psi / 50 psi |
Where This Is Used
- The Dixon Cam & Groove coupling is a reliable quick connect coupling for use on hose, pipe, tubing and tanks conveying a wide variety of liquids, dry bulk materials and vapors including cooling water, fuels, chemicals, cosmetics, food products, adhesives, dyes, pharmaceuticals, pellets and much more.
- Designed for use with liquids.
Features
- The coupling is connected by simply opening the coupler arms and inserting the adapter into the coupler.
- The two cam arms are then closed under normal hand pressure to complete the joint.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
-
15
Model Number: NGD050A
-
20
Model Number: NGD075A
-
25
Model Number: NGD100A
-
32
Model Number: NGD125A
-
40
Model Number: NGD150A
-
50
Model Number: NGD200A
-
75
Model Number: NGD300A
-
100
Model Number: NGD400A
