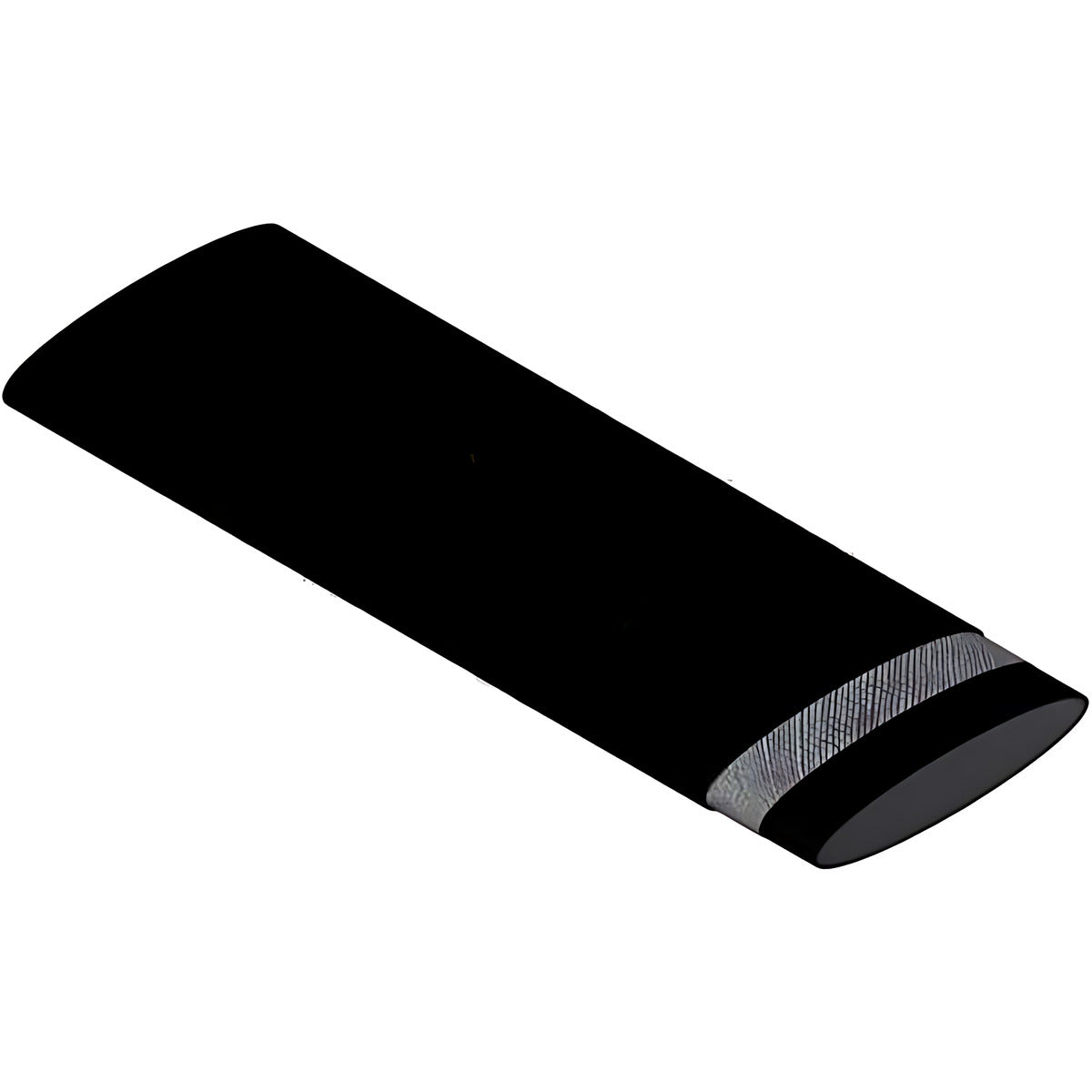

Dixon ORO050100 2 in x 100 m Rubber Black Layflat Hose
Out of stock
This Dixon layflat hose is made from a rubber alloy: an NBR/PVC blend tube and smooth cover, both black, with polyester yarn reinforcement (manufacturer-stated). It is an extruded hose that is ozone, weather and abrasion resistant.
Dixon's industrial hose catalogue rates it from 200 PSI (14 bar) working pressure at 2 in to 145 PSI (10 bar) at 8 in, with burst pressures of 600 to 435 PSI, for -20°C to 80°C (manufacturer-stated). This listing covers 2, 3, 6 and 8 in hose in 20 m, 100 m and 200 m lengths.
Where this product is used
- Water transfer and general pumping in irrigation, mining, construction, sewage and drainage systems (manufacturer-stated).
- Water bypass systems and fertiliser distribution (manufacturer-stated).
- Use as a cable cover (manufacturer-stated).
Features
- NBR/PVC blend tube and cover, black, with polyester yarn reinforcement (manufacturer-stated)
- Extruded; ozone, weather and abrasion resistant (manufacturer-stated)
- Working pressure 200 PSI (14 bar) at 2 in, falling to 145 PSI (10 bar) at 8 in (manufacturer-stated)
- Burst pressure 600 PSI (42 bar) at 2 in, falling to 435 PSI (30 bar) at 8 in (manufacturer-stated)
- Temperature range -20°C to 80°C (manufacturer-stated)
Common specifications
| Specification | Detail |
|---|---|
| Tube | NBR/PVC blend, black |
| Cover | NBR/PVC blend, smooth, black |
| Reinforcement | Polyester yarn |
| Working pressure | 200 PSI (14 bar) at 2 in; 175 PSI (12 bar) at 3 and 6 in; 145 PSI (10 bar) at 8 in |
| Burst pressure | 600 PSI (42 bar) at 2 in; 525 PSI (36 bar) at 3 and 6 in; 435 PSI (30 bar) at 8 in |
| Temperature range | -20°C to 80°C |
| Construction | Extruded |
| Sizes | 2, 3, 6 and 8 in |
Key specifications
| Dixon part number | Pack | Hose ID (mm) | OD (mm) | Working PSI (bar) | Burst PSI (bar) | Weight (kg/m) |
|---|---|---|---|---|---|---|
| ORO050020 | 20 m length | 50.8 (2 in) | 54.6 | 200 (14) | 600 (42) | 0.40 |
| ORO050100 | 100 m coil | 50.8 (2 in) | 54.6 | 200 (14) | 600 (42) | 0.40 |
| ORO050200 | 200 m coil | 50.8 (2 in) | 54.6 | 200 (14) | 600 (42) | 0.40 |
| ORO075100 | 100 m coil | 76.2 (3 in) | 80.8 | 175 (12) | 525 (36) | 0.46 |
| ORO150020 | 20 m length | 152.4 (6 in) | 157.8 | 175 (12) | 525 (36) | 1.08 |
| ORO150100 | 100 m coil | 152.4 (6 in) | 157.8 | 175 (12) | 525 (36) | 1.08 |
| ORO200020 | 20 m length | 203.2 (8 in) | 210.0 | 145 (10) | 435 (30) | 2.75 |
| ORO200100 | 100 m coil | 203.2 (8 in) | 210.0 | 145 (10) | 435 (30) | 2.75 |
Figures are from Dixon's industrial hose catalogue and show the catalogue hose ID in millimetres, with the inch size. Headings use the inch size because the store size options (52, 78, 155 and 204 mm) do not match the catalogue IDs (50.8, 76.2, 152.4 and 203.2 mm). Dixon prints no vacuum or bend radius for this hose.
Selecting the right option
Layflat is a discharge hose: it is not for suction. Match the pressure to your pump, because the working pressure falls as the hose gets larger. The 20 m, 100 m and 200 m part numbers carry the ratings of the base size row; only the 100 m coil part numbers are printed in the catalogue. Check the temperature, which is -20°C to 80°C.
Related products
Related Dixon layflat hoses: Dixon Heavy Duty Red Layflat Hose - Sunny Red, Dixon Medium Duty Blue Layflat Hose - Sunny Blue and Dixon Extra Heavy Duty Green Mining Layflat Hose.
