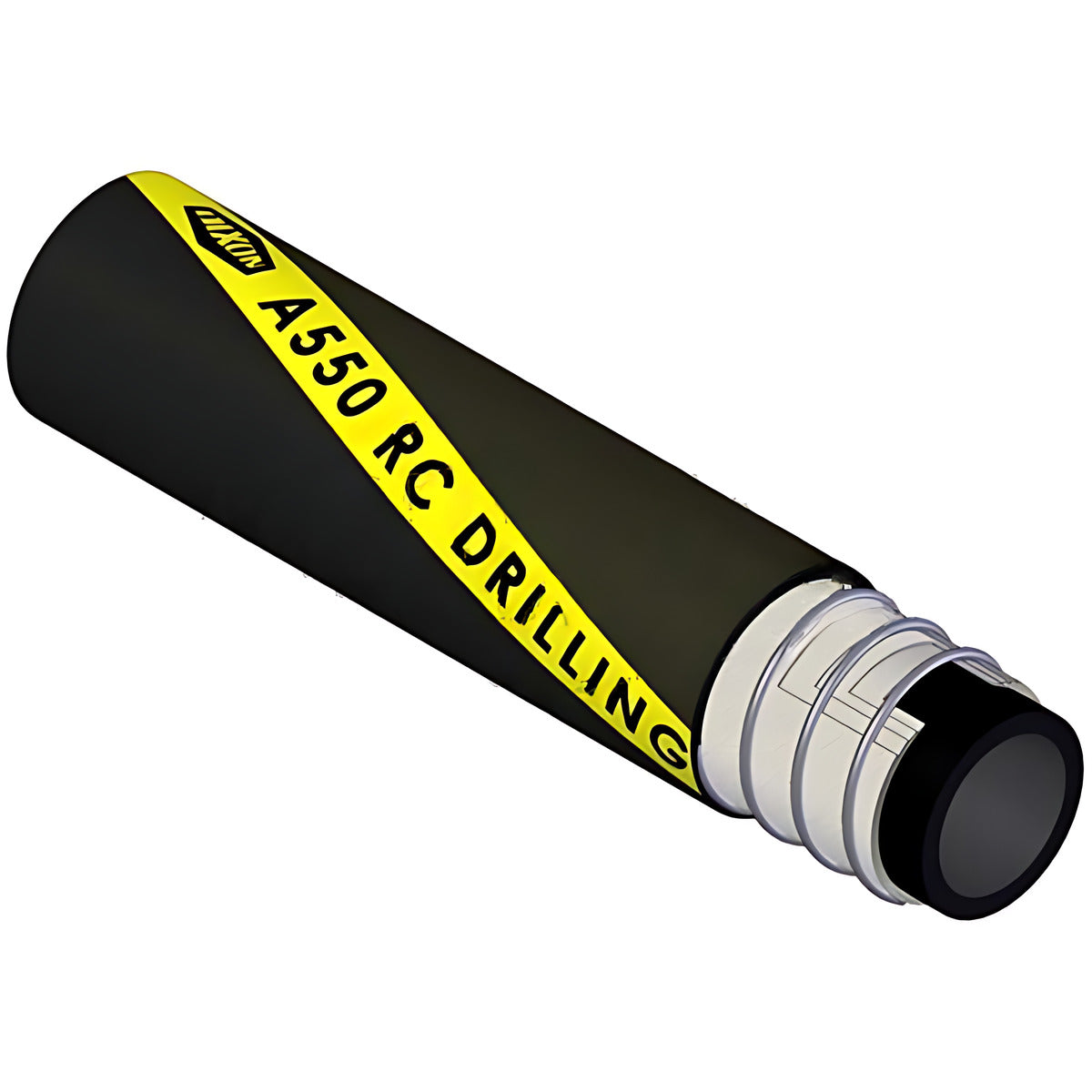

Dixon A55006520 63.5 mm x 20 m Rubber Material Handling Reverse Cycle Sampling Hose

This Dixon rubber hose is made for reverse circulation drilling equipment used for mineral recovery in sampling operations, where it handles highly abrasive material at high pressure and elevated temperature (manufacturer-stated). It has a smooth black NBR tube, a smooth black SBR/NR blend cover with a yellow stripe and four plies of synthetic cord with a wire helix, and it has a Mylar layline and embossed tape line (manufacturer-stated).

Dixon rates all sizes at 500 PSI (35 bar) working pressure and 0.9 bar vacuum, for temperatures from -40 to 100 degrees C with intermittent peaks of 120 degrees C (manufacturer-stated). Dixon gives abrasion resistance as under 50 mm3 (ISO 4649/A) (manufacturer-stated). The store lists the 63.5 and 102 mm sizes as 20 m coils.

Where this product is used

• Sampling operations on reverse circulation drilling equipment for mineral recovery (manufacturer-stated).
• Handling highly abrasive material at high pressure and elevated temperature (manufacturer-stated).

Features

• Tube: smooth NBR, black; cover: SBR/NR blend, black with yellow stripe (manufacturer-stated)
• Reinforcement: 4 ply synthetic cord with wire helix (manufacturer-stated)
• Working pressure 500 PSI (35 bar), vacuum 0.9 bar (manufacturer-stated)
• Temperature range -40 to 100 degrees C, peaks to 120 degrees C (manufacturer-stated)
• Abrasion resistance under 50 mm3 (ISO 4649/A) (manufacturer-stated)

Common specifications

Key specifications

Figures are from the A550 table in Dixon's Industrial Hose catalogue, which lists the part numbers ending 20 as the 20 m coil. The store sizes 63.5 and 102 mm are the 63.5 and 101.6 mm catalogue sizes.

Selecting the right option

Match the bore to your drill rod and sample splitter, and check the hose bend radius against how the line runs from the rig. Use fittings and clamps made for heavy wire-helix hose of the same bore and rated for the 500 PSI working pressure.
