Dixon A11005100 5 mm x 100 m Rubber Single LPG Hose Orange
Available

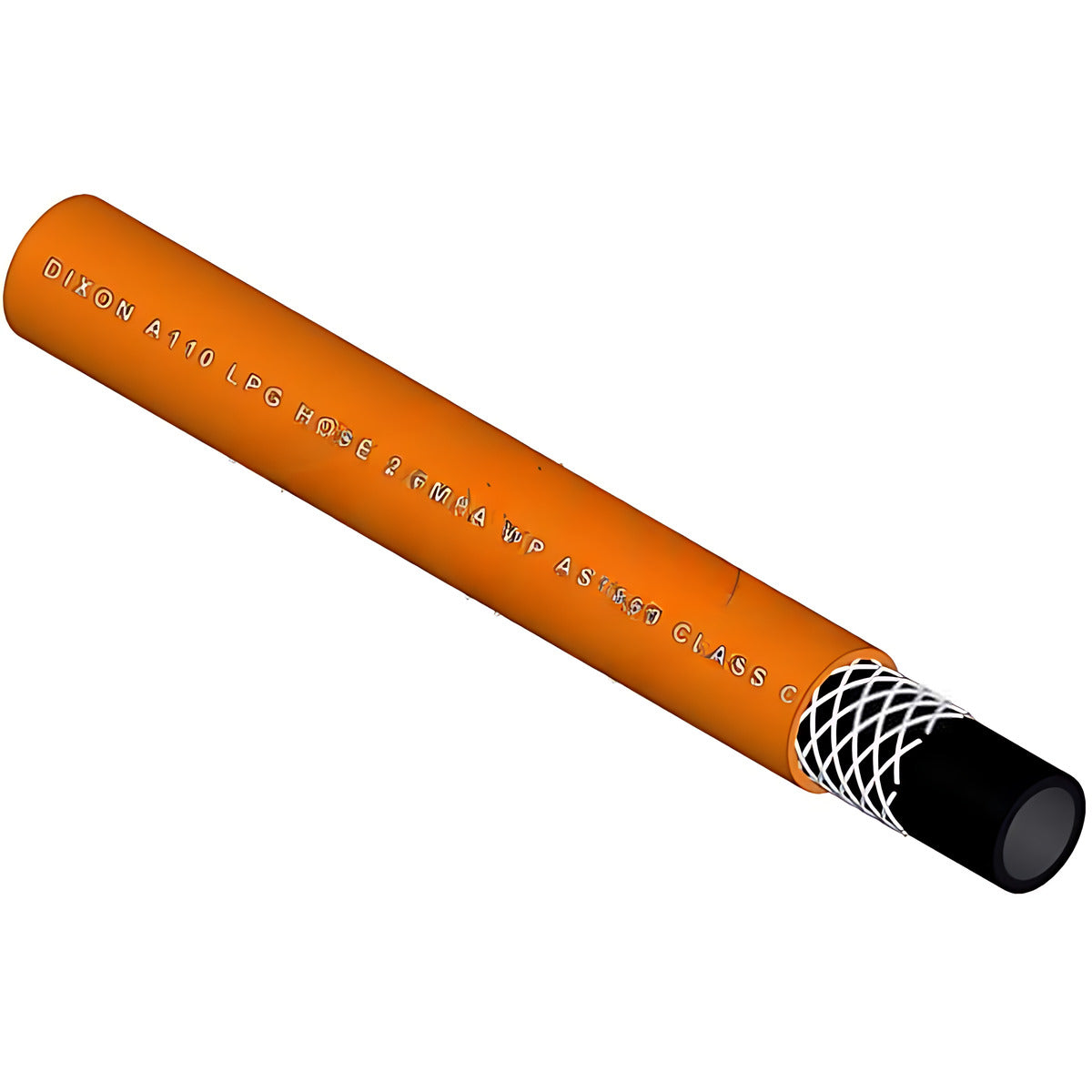

This Dixon orange rubber hose is made for transferring LPG for welding, cutting and allied processes, and Dixon describes it as designed to meet AS/NZS 1869 Class C (manufacturer-stated). It has a black NBR/PVC blend tube, a smooth orange NBR/PVC cover with a pin-pricked finish and polyester yarn reinforcement, and it is extruded. The store lists the 5 mm and 10 mm sizes in 100 m coils.
Dixon rates all sizes at 375 PSI (25 bar) working pressure and 1500 PSI (100 bar) burst, for temperatures from -20 to 70 degrees C (manufacturer-stated). The hose is ozone, weather and abrasion resistant (manufacturer-stated).
Where this product is used
- Transferring LPG for welding, cutting and allied processes (manufacturer-stated).
- LPG lines where an orange, pin-pricked cover is specified.
Features
- Tube: NBR/PVC blend, black; cover: NBR/PVC, smooth, orange, pin pricked (manufacturer-stated)
- Reinforcement: polyester yarn; extruded (manufacturer-stated)
- Working pressure 375 PSI (25 bar), burst 1500 PSI (100 bar) (manufacturer-stated)
- Temperature range -20 to 70 degrees C (manufacturer-stated)
- Described by Dixon as designed to meet AS/NZS 1869 Class C (manufacturer-stated)
Common specifications
| Specification | Detail |
|---|---|
| Tube | NBR/PVC blend, black |
| Cover | NBR/PVC, smooth, orange, pin pricked |
| Reinforcement | Polyester yarn |
| Standard | AS/NZS 1869 Class C (manufacturer-stated) |
| Working pressure | 375 PSI (25 bar) |
| Burst pressure | 1500 PSI (100 bar) |
| Temperature | -20 to 70 degrees C |
| Sizes on this page | 5 mm, 10 mm (100 m coils) |
Key specifications
| Dixon part number | Size | Length | Catalogue ID (mm) | Catalogue OD (mm) | Bend radius (mm) | Weight (kg/m) |
|---|---|---|---|---|---|---|
| A11005100 | 5 mm | 100 m coil | 4.8 | 13 | 40 | 0.18 |
| A11010100 | 10 mm | 100 m coil | 9.5 | 18 | 75 | 0.29 |
Figures are from the A110 table in Dixon's Industrial Hose catalogue, which lists the part numbers ending 100 as the 100 m coil. The store sizes 5 and 10 mm are the 4.8 and 9.5 mm catalogue sizes. Dixon also lists 6.4 mm (A11006) and 20 m coils.
Selecting the right option
LPG is a flammable gas, so check the hose, fittings and regulators are all rated for LPG and for the pressure you run, and have the assembly made up and tested by a competent person. The page gives only what Dixon's catalogue states; check the standard requirements for your application. For welding gas hose in blue and red, see the A108 and A109 hoses in Related products.
Related products
Related Dixon hose: Dixon Rubber Single Line Welding Hose, Dixon Rubber Twin Line Welding Hose Blue/Red and Dixon Rubber Multi-Purpose Non-Conductive Hose.
