Dixon SS100DP 25 mm (1") Stainless Steel Cam & Groove Type DP Dust Plug
Available

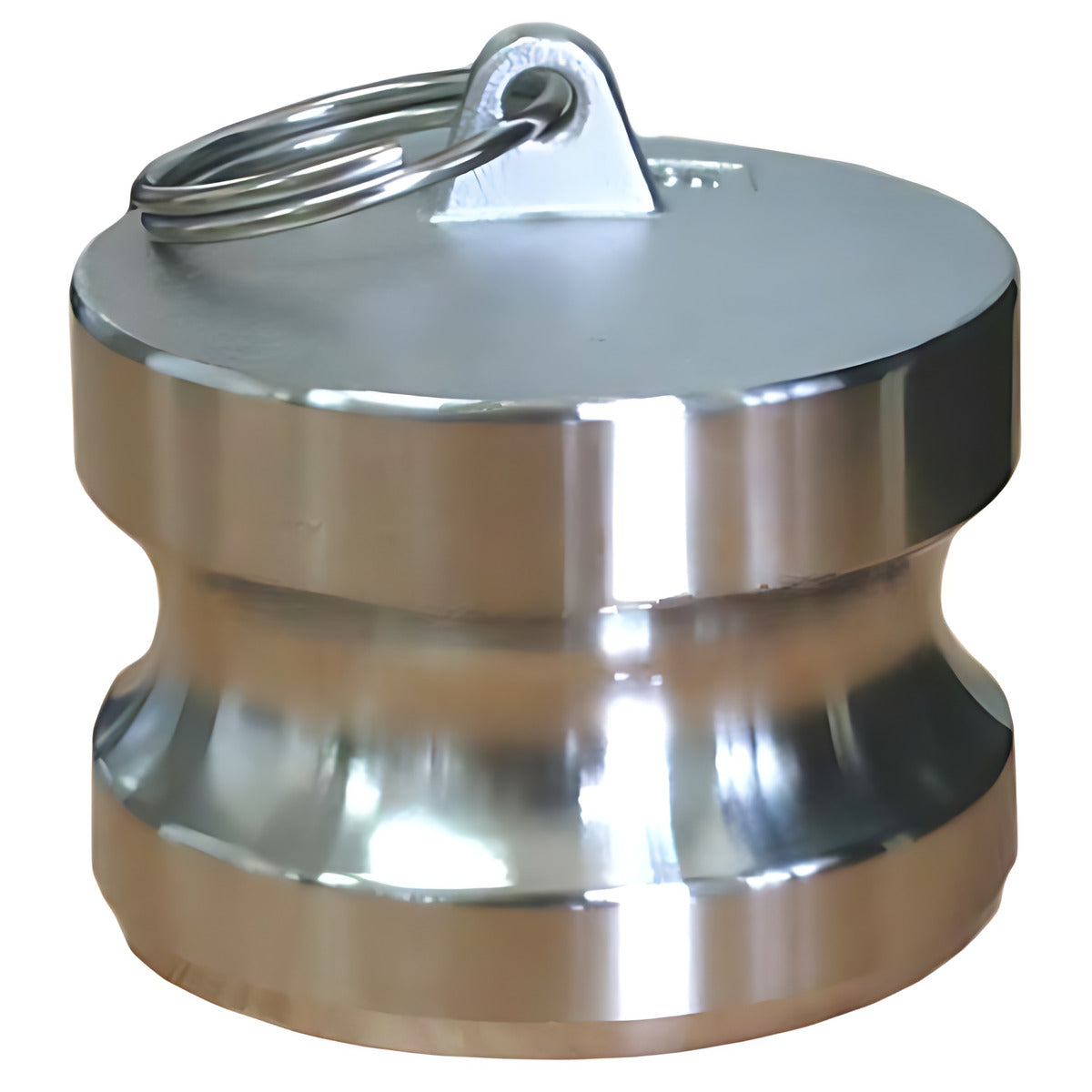

This Dixon stainless steel dust plug closes off a female cam and groove coupler. It is a Type DP plug, which is held in by the cam arms of the coupler. Dixon lists the stainless steel range in 11 sizes, from 15 mm (1/2") to 150 mm (6") (manufacturer-stated).
The body is stainless steel grade CF8M (316 equivalent), which Dixon lists to ASTM-A351 (manufacturer-stated). Dust caps and dust plugs are not to be used in any pressure applications for safety and environmental reasons (manufacturer-stated). Dixon's technical data sheet gives overall length, adaptor length, distance across flat and weight for the sizes it covers, and those figures are in the table below.
Where this product is used
- Closing off a female camlock coupler on a hose, pipe or tank outlet that is not in use, so dirt and debris stay out of the cam and groove profile.
- Stainless steel cover for stainless steel camlock fittings on hose and tank outlets.
- Spare covers for hose assemblies that are stored in a workshop or carried on a vehicle.
Features
- Type DP dust plug for cam and groove couplings, 11 sizes from 15 mm (1/2") to 150 mm (6") (manufacturer-stated)
- Body: Stainless steel, grade CF8M (316 equivalent) to ASTM-A351 (manufacturer-stated)
- Not for use in pressure applications (manufacturer-stated)
- Length, adaptor length, distance across flat and weight published in the Dixon data sheet for the sizes it covers (manufacturer-stated)
Common specifications
| Specification | Detail |
|---|---|
| Type | Type DP dust plug |
| Body material | Stainless steel, grade CF8M (316 equivalent) to ASTM-A351 (manufacturer-stated) |
| Sizes | 15 mm (1/2"), 20 mm (3/4"), 25 mm (1"), 32 mm (1-1/4"), 40 mm (1-1/2"), 50 mm (2"), 65 mm (2-1/2"), 75 mm (3"), 100 mm (4"), 125 mm (5"), 150 mm (6") |
| Pressure use | Not for use in pressure applications (manufacturer-stated) |
Key specifications
| Dixon part number | Size | Overall length (mm) | Adaptor length (mm) | Distance across flat (mm) | Weight (kg) |
|---|---|---|---|---|---|
| SS050DP | 15 mm (1/2") | ||||
| SS075DP | 20 mm (3/4") | 39.5 | 28 | 32 | 0.09 |
| SS100DP | 25 mm (1") | 44 | 33 | 36.5 | 0.13 |
| SS125DP | 32 mm (1-1/4") | 50 | 40 | 45 | 0.25 |
| SS150DP | 40 mm (1-1/2") | 54 | 38 | 53 | 0.27 |
| SS200DP | 50 mm (2") | 60 | 46 | 63 | 0.40 |
| SS250DP | 65 mm (2-1/2") | 64 | 49.5 | 76 | 0.66 |
| SS300DP | 75 mm (3") | ||||
| SS400DP | 100 mm (4") | 68.5 | 53 | 119.5 | 1.09 |
| SS500DP | 125 mm (5") | ||||
| SS600DP | 150 mm (6") | 73.5 | 56 | 176 | 3.01 |
Length, across-flat and weight figures are from Dixon's technical data sheet for stainless steel camlocks. That sheet does not list the 15 mm and 125 mm sizes, and it lists the 3 in size as 80 mm where the catalogue lists it as 75 mm, so those rows are left blank.
Selecting the right option
Choose the size from the camlock fitting it will close: a dust plug is sized to match the coupling size, so a 50 mm dust plug goes with a 50 mm female coupler. Match the body material to the fitting as well. Dixon states that no standard exists for the 15 mm (1/2 in) and 200 mm (8 in) camlock sizes and that these sizes generally do not interchange with other manufacturers (manufacturer-stated). Dixon's size table also prints a working pressure beside each size, but Dixon states that dust caps and dust plugs are not to be used in any pressure applications (manufacturer-stated), so treat this dust plug as a cover only and never as a pressure seal.
