Goliath 1" x 11.5 TPI NPT HSS Hexagonal Die Nut - FH87YJJ
Available
Goliath is an Australian precision cutting tool brand supplying HSS taps, threading dies, tap and die sets, thread gauges, and key steel to engineering, manufacturing, maintenance, and toolmaking operations across Australia. This page covers the Goliath NPT HSS Hexagonal Die Nut, available in 9 diameter options: 1", 1-1/4", 1-1/2", 1/2", 1/4", 1/8", 2", 3/4" and 1 more.
Goliath NPT tap and die sets cut National Pipe Taper threads to American standard for threaded pipe connections in fluid, pneumatic, and hydraulic systems.
Where this product is used
Goliath npt tap and die set products are used across engineering workshops, production machining, and industrial maintenance programs.
- Cutting National Pipe Taper threads for American-standard pipe connections in fluid and pneumatic systems.
- Threading fittings, nipples, and pipe connectors to NPT standard.
- Maintenance and manufacturing of American-standard pipe assemblies.
Key specifications
| Specification | Detail |
|---|---|
| Material Grade | HSS |
Selecting the right option
NPT sets cut American-standard taper pipe threads for sealing pipe connections. NPT and BSPT are different taper thread standards — confirm the correct standard before cutting. Select the set that covers the pipe sizes in your system.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details

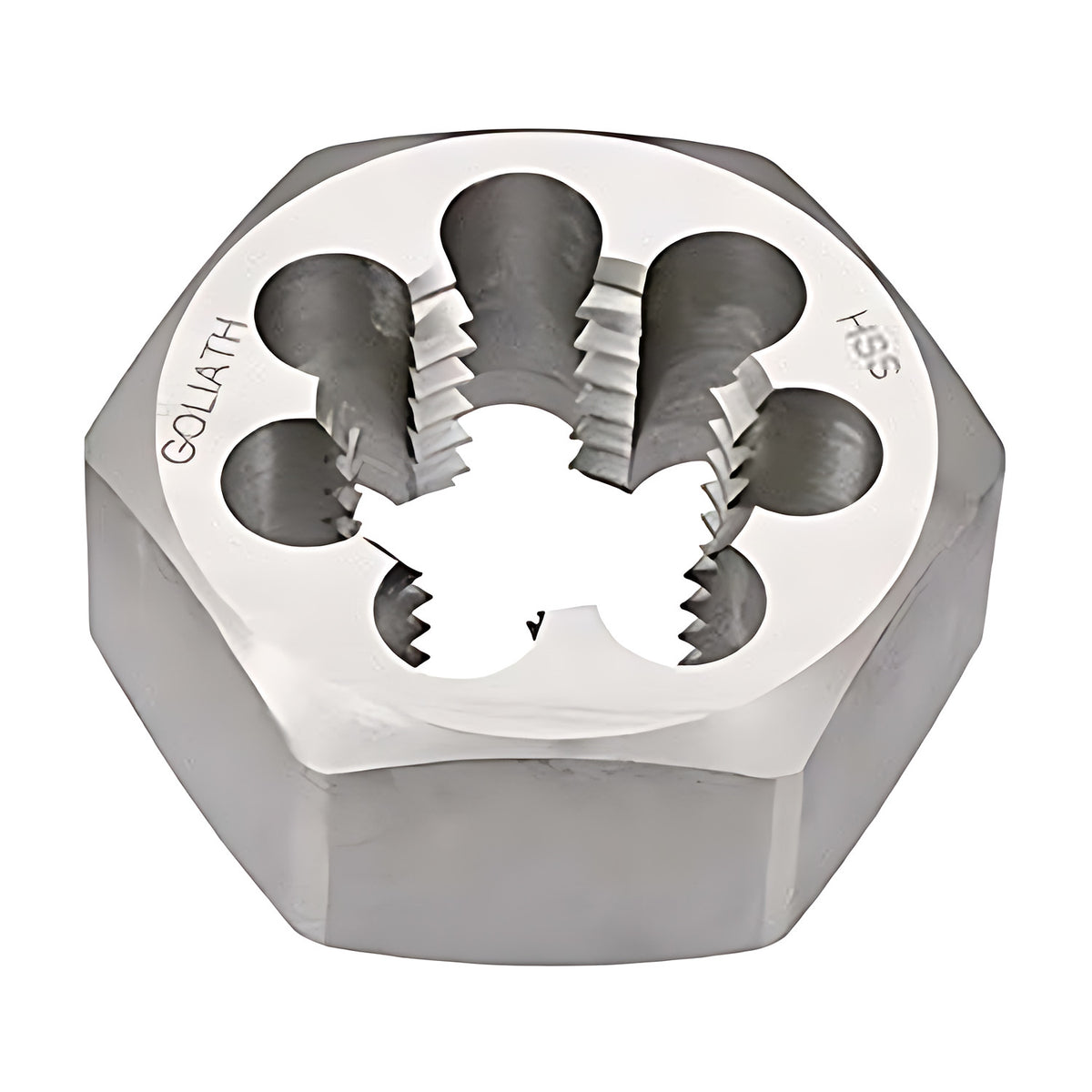

Goliath NPT HSS Hexagonal Die Nut: 1"
SKU: A0199301 | Model: FH87YJJ
Diameter 1". Goliath NPT HSS Hexagonal Die Nut
Hexagonal HSS Die Nut for External Threads
High Speed Steel (HSS) Die Nuts
Goliath solid High Speed Steel (HSS) Die Nuts are used for cutting of new male threads as well as extending / cleaning/resizing of existing threads where a button die is not suited due to work space restrictions and/or on site thread accessibility.
HSS Die Nuts have a vastly longer tool life than Carbon dies as well as superior thread accuracy.
National Pipe Tapered (NPT) is a US standard for tapered threads used to join pipes and fittings.
ANSI/ASME standard B1.20.1 covers threads of 60º form with flat crests and roots.
The taper on NPT threads allows them to form a seal when torqued as the flanks of the threads compress against each other.
However, a clearance remains between the crests and roots of the threads, resulting in a leakage around this spiral.
This means that NPT fittings must be made leak-free with the aid of thread seal tape or a thread sealant compound.
For each 12" increase in distance from the end, the diameter increases by 3/4".
