12G-11 x 22 cm Hex Flange T17 Screw, 316 Stainless Steel - XFPA412GX22
The price shown is for the pack.
Available

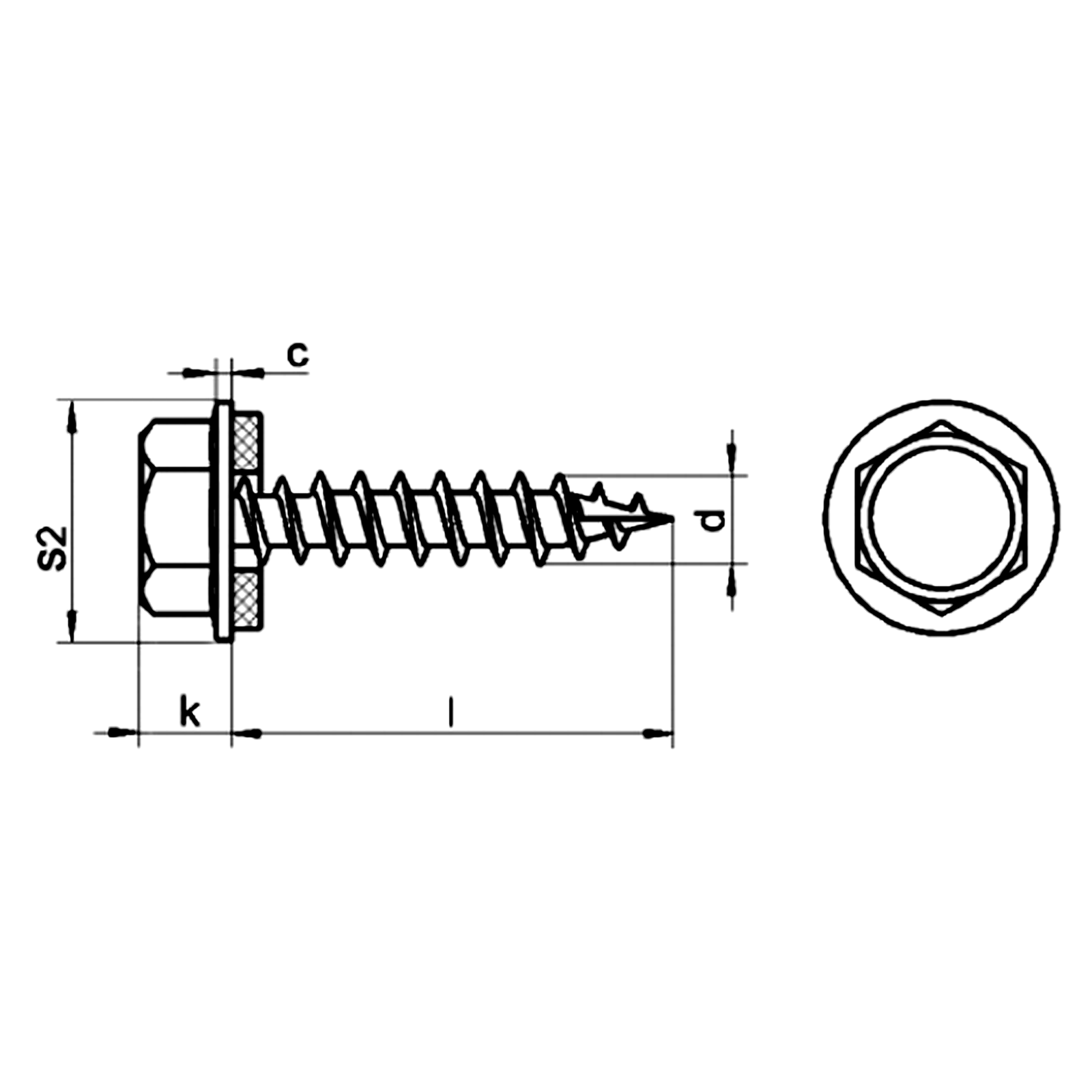

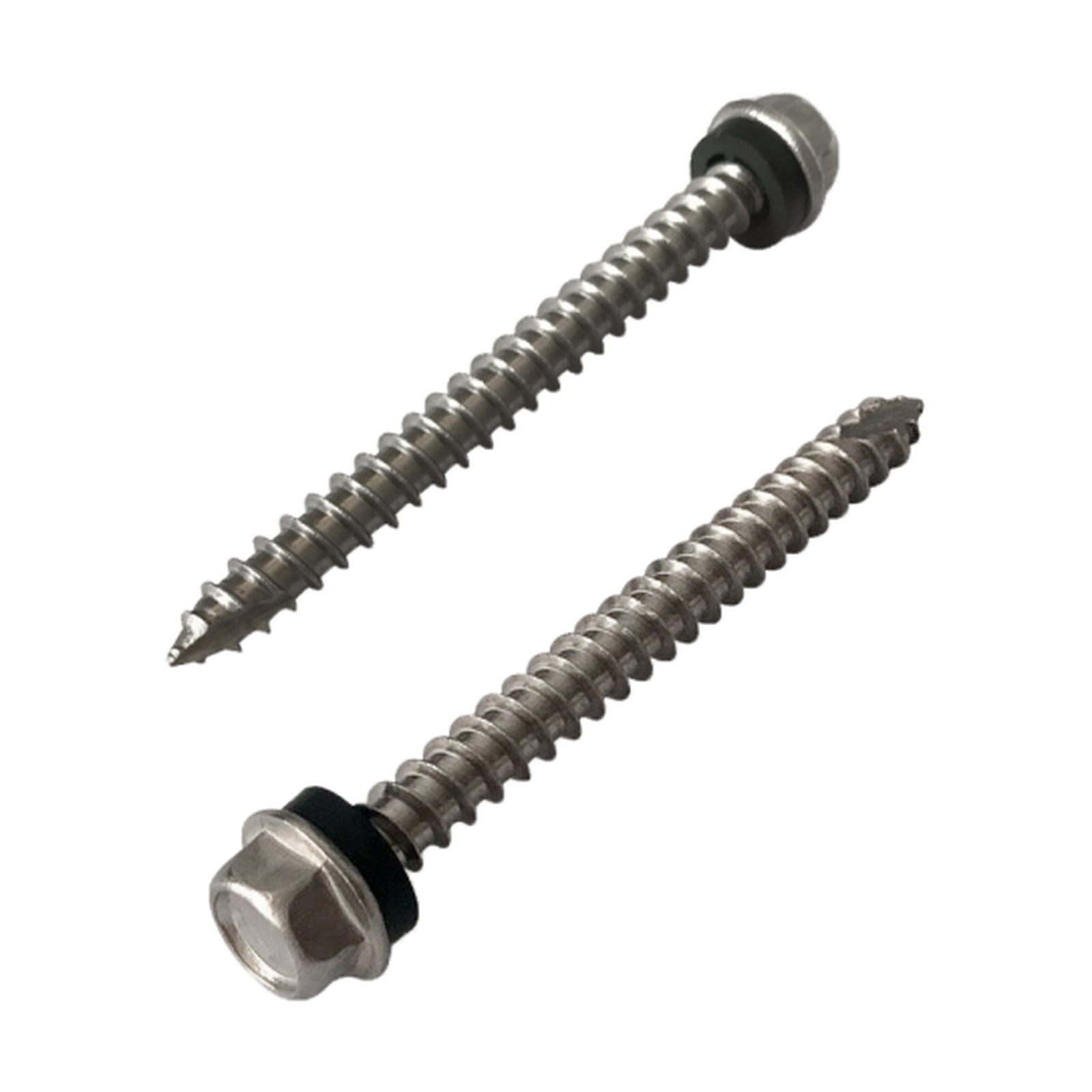

The Hex Flange Screw W/Neo T17 A4 (316) is a hex head screw with an integral flange and a Type 17 (T17) point. The T17 point is a cutting point designed to start in timber without a pilot hole in many applications.
You can choose from 15 variants, covering sizes 12G-11 to 14G-10 and lengths 22 cm to 90 cm. Pack quantities depend on size: packs of 250 to 1000.
Made from 316 (A4) stainless steel, the grade normally specified for chloride-exposed work such as coastal installations, swimming pools, marine fittings and food-processing plant.
Stainless threads can gall (seize) when tightened under load or at speed. A smear of anti-seize on the thread and a steady tightening speed reduce the risk.
Where this product is used
- Coastal timber construction
- Timber-to-timber and timber-to-steel-bracket connections
- Decks, pergolas and outdoor timber structures
- Bulk jobs and trade or maintenance stores buying in larger packs
- Architectural work near the coast
- Chemical and washdown areas
Features
- Integral flange spreads the load like a washer
- Range covers 12G-11 to 14G-10 in 15 variants
- Lengths from 22 cm to 90 cm
- T17 cutting point starts in timber
- A4 (316) stainless steel with molybdenum, for coastal and chloride-exposed settings
- Hex head driven with a socket or nut driver
Key specifications
| Specification | Detail |
|---|---|
| Product | Hex Flange Screw W/Neo T17 |
| Type | Hex head screw with an integral flange and a Type 17 (T17) point |
| Material | A4 (316) stainless steel |
| Magnetic response | Generally non-magnetic (austenitic); cold-worked parts can show weak magnetism |
| Size range | 12G-11 to 14G-10 |
| Pack quantity | 250 to 1000, by size |
| Head type | Hex flange |
| Key features | T17 cutting point starts in timber; Integral flange spreads the load like a washer |
| Typical environment | Coastal, marine, pool and food-processing use |
| Number of variants | 15 |
| Fitting tip | Use anti-seize on the thread to reduce galling |
| Length range | 22 cm to 90 cm |
| Thread system | Imperial gauge sizes |
| Drive | Hex |
Selecting the right option
Pre-drilling is still advised in dense hardwood or close to the end of a board, to prevent splitting. The listing may include a neoprene washer version, shown as "W/Neo".
Related products
Also available: Hex Flange Screw T17 A4 (316).
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Hex Flange Screw W/Neo T17 A4 (316): 12G-11 / 22 cm
SKU: A0212510 | Model: XFPA412GX22
This is the fastener size 12G-11, fastener length 22 cm option of the Hex Flange Screw W/Neo T17 A4 (316). Key details for this option: material 316 Stainless Steel, pack quantity Pack of 1000.
