M4 Hex Lock Nut, 316 Stainless Steel - XIWA4M4

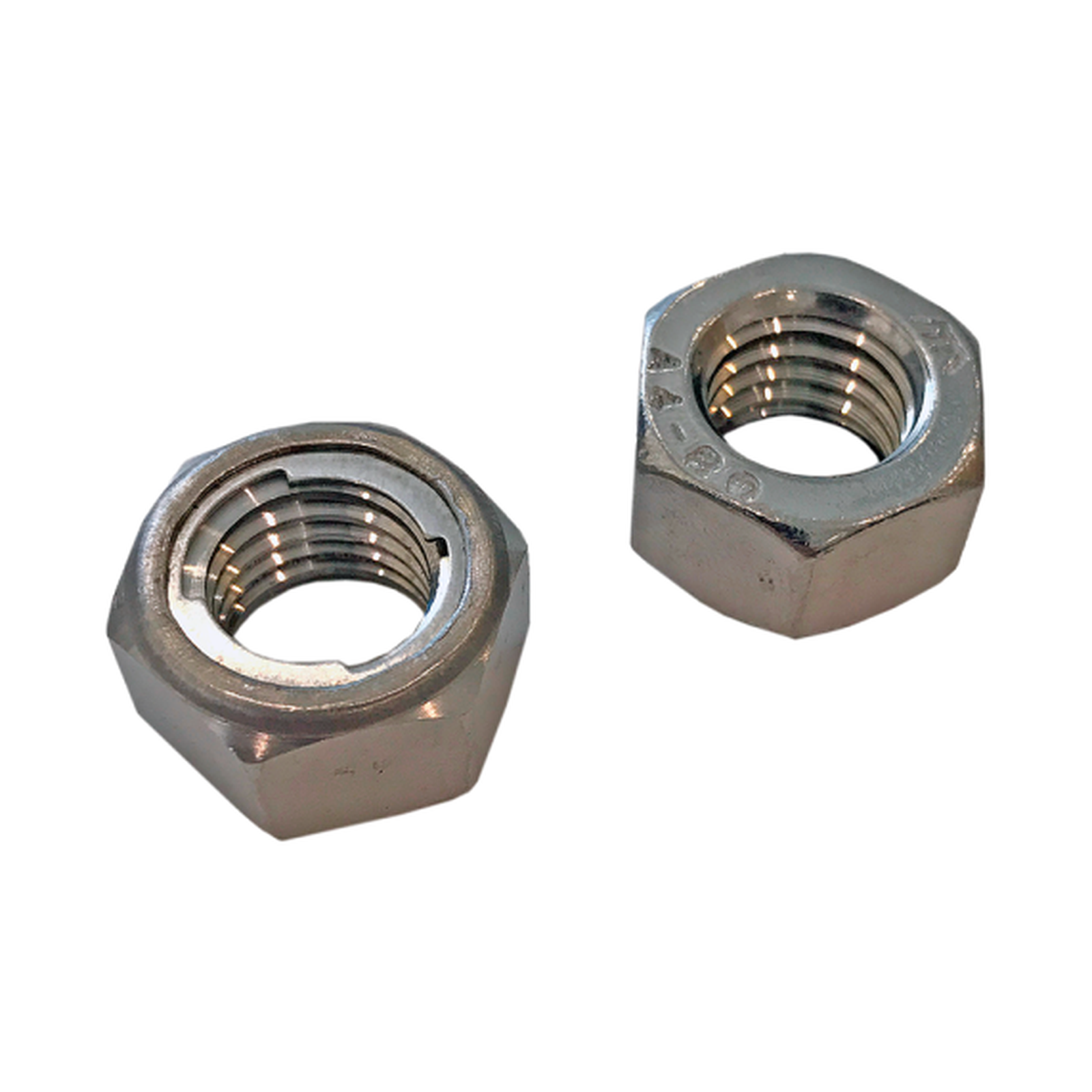

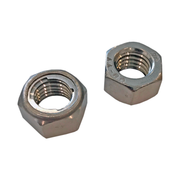

The Hex Inox Lock Nut A4 (316) is a hex lock nut. A lock nut is designed to resist loosening under vibration better than a plain hex nut.

The range runs to 8 variants, covering sizes M4 to M20. Variants are supplied in packs of 25 to 100, depending on size.

A4 (316) stainless steel contains molybdenum (about 2 to 3 per cent), which improves its resistance to chlorides. It is the grade normally chosen for coastal, pool, marine and food-processing settings, and it costs more than A2 (304). Metric sizes are written M followed by the nominal thread diameter in millimetres, so M10 is a 10 mm thread.

Stainless threads can gall (seize) when tightened under load or at speed. A smear of anti-seize on the thread and a steady tightening speed reduce the risk.

Where this product is used

• Small sizes for enclosures, instruments and light fittings
• Vibrating machinery, frames and guards
• Outdoor fittings exposed to salt air
• Food and beverage equipment
• Swimming pool and spa equipment
• Equipment that is hard to re-tighten

Features

• Range covers M4 to M20 in 8 variants
• Hex form for spanner or socket tightening
• Metric thread sizes match the nuts, bolts and tapped holes in most Australian-supplied equipment
• A4 (316) stainless steel with molybdenum, for coastal and chloride-exposed settings
• Supplied in packs of 25 to 100
• Designed to resist loosening under vibration

Key specifications

Selecting the right option

The supplier does not state the locking method (for example nylon insert or all-metal) for this listing, so check a sample if the locking method matters for your use. Match the thread system, diameter and pitch to the bolt. Use anti-seize on the thread. Where chlorides are not a concern, the A2 (304) version costs less: Metric Hex Lock Nut - 304 Stainless Steel (M4 to M20).
