Mitutoyo Linear Height LH-600FG 600mm 2D Gauge

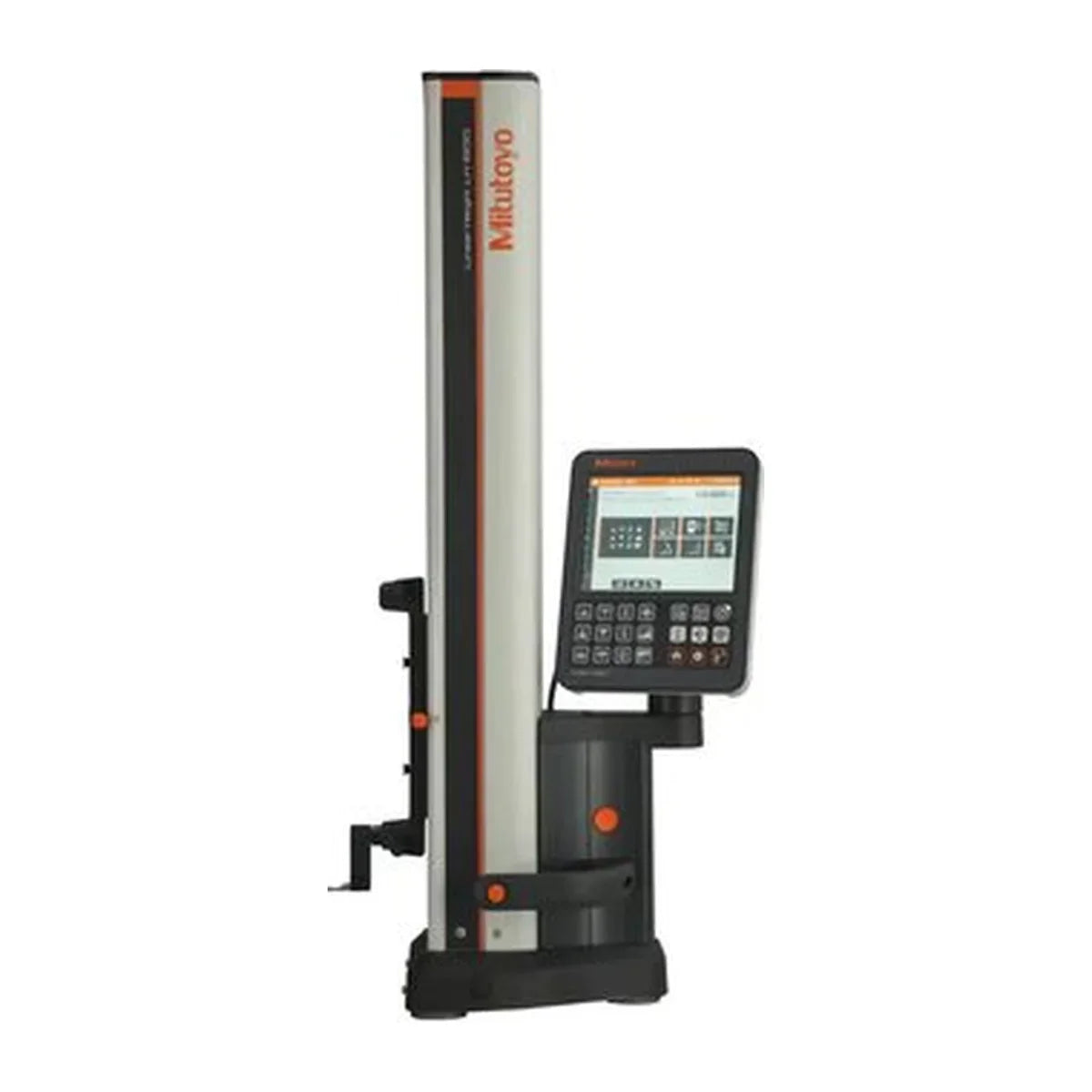

The Mitutoyo Linear Height LH-600FG (518-361-13) is a high-end 2D height-measuring instrument for toolrooms and quality control labs. It has a 600mm slider stroke, a measuring range of 0 to 977mm, a touch screen controller and a power grip. It reads to a digital step of 0.1µm and can run stored part programs.

Its accuracy is ±(1.1 + 0.6L/600) µm, where L is the length in mm. Repeatability is 0.4µm on a plane and 0.9µm in a bore. It has air floating so you can move it over a surface plate easily, a motor drive with seven speeds, and an internal battery that runs for about 4 hours. It is supplied without a power cord. The power cable (02ZAA021) is ordered separately.

Where this product is used

• High-accuracy 2D height, step, diameter and pitch measuring on a surface plate
• Running stored part programs for repeat inspection
• Quality control and calibration lab checks of precision parts

Features

• 600mm slider stroke and a measuring range of 0 to 977mm
• Accuracy of ±(1.1 + 0.6L/600) µm, with a digital step down to 0.1µm
• Air floating for easy movement and semi-floating for scanning measurement
• Motor drive in seven speeds from 5 to 40mm/s, or manual drive
• 8.4" colour touch screen with a hybrid controller box
• Stores 50 part programs and shows GO/NG tolerance results
• Data output through Digimatic S1, RS-232C, USB-B and a USB-A memory stick port
• Battery operation of about 4 hours, with an AC adapter included
• Supplied with a probe calibration block, 5mm ball offset probe and touch pen

Key specifications

Supplied with

• Linear Height LH-600FG with power grip
• Setting block for probe calibration
• Ball offset probe, 5mm
• Battery pack
• Touch pen and protective sheet for the touch screen
• AC adapter
• Conveying handles (2) and caps for the handles (2)
• Not included: power cable 02ZAA021, ordered separately
