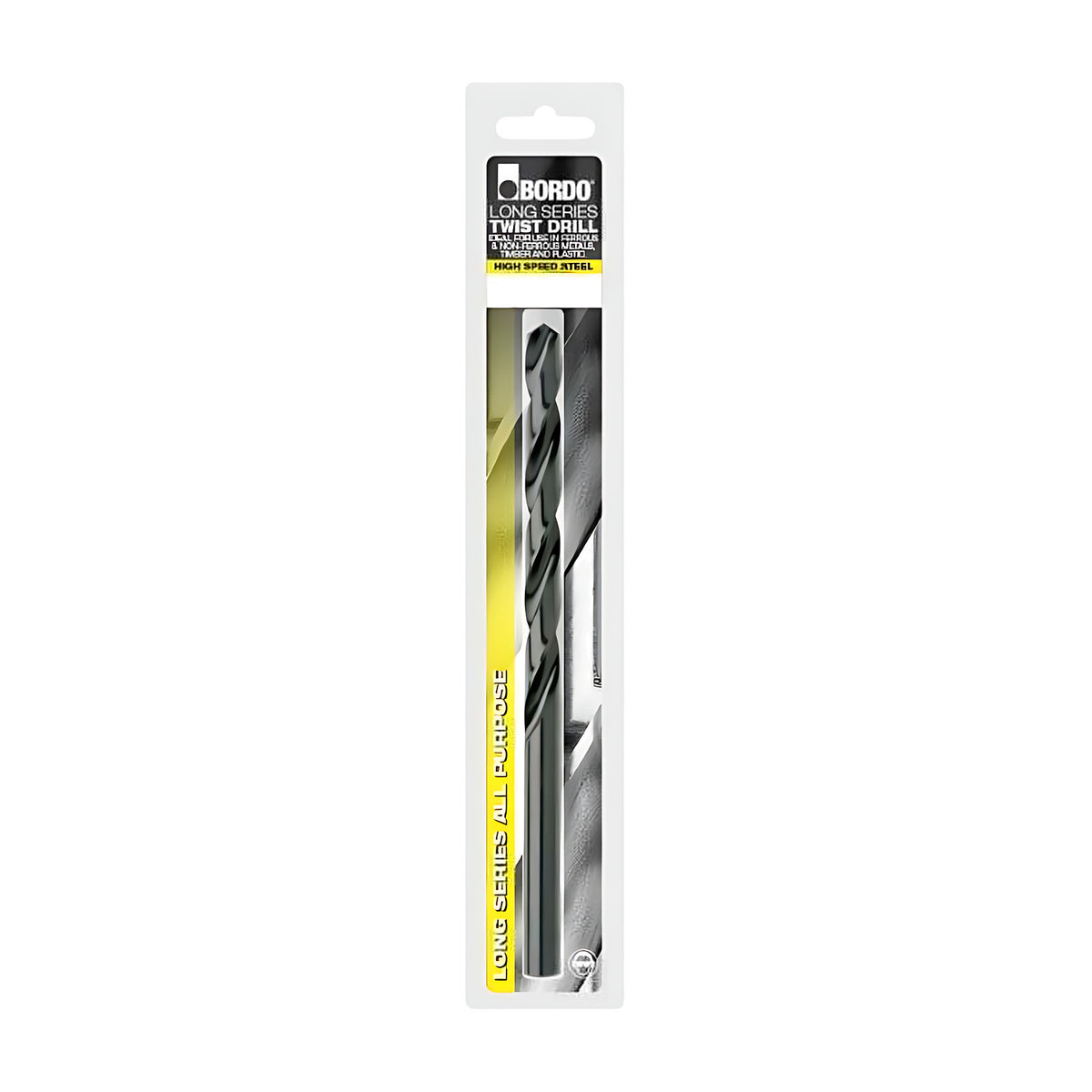

Bordo 1mm Long Series HSS Drill Bit Clam Shell (2501) - Metric
Regular price
$17.00
Sale price
$17.00
Regular price
Inc. GST
Available
The Bordo Long Series HSS Drill Bit Clam Shell (2501) - Metric is part of Bordo's Australian drill bit range, engineered for reliable performance in trade and industrial drilling applications.
Key Specifications
| Diameter (mm) | 1 |
|---|---|
| Spindle Speed Free Cutting Stl RPM | 13696 |
| Surface Finish | Black |
| Flute Type | 30° Helix |
| Flute Length (mm) | 29 |
| Overall Length (OAL) mm | 57 |
| Feed per Revolution (mm) | 0.04 |
| Spindle Speed Aluminium/Brass RPM | 19429 |
| Spindle Speed Stainless Steel RPM | 3822 |
| Spindle Speed Wood/Plastic RPM | 28984 |
| Spindle Speed Malleable Iron RPM | 8600 |
| Spindle Speed Med. Carbon Steel RPM | 9555 |
| Spindle Speed Cast Iron RPM | 7644 |
| Spindle Speed Tool Steel RPM | 5733 |
| Type of Point | 118° Std Chisel |
Product Features
- ANSI B94-11
- This surface helps to keep lubricant on the tool, particularly important on the cutting edges, thus reducing friction and cold welding. The result is increased tool life
- Black Finish Twist Drills (also called blue finish) achieve their distinctive colour by steam tempering, a thermal process resulting in a porous tool coating
- 118° chisel point with 30° helix
Product Highlights
Resources
Couldn't load pickup availability
Payment & Security
Payment methods
Secure Checkout. We do not store credit card details
Available Options:
-
1mm drill bit
Model Number: 2501-1.00S
-
1.5mm drill bit
Model Number: 2501-1.50S
-
2mm drill bit
Model Number: 2501-2.00S
-
2.5mm drill bit
Model Number: 2501-2.50S
-
3mm drill bit
Model Number: 2501-3.00S
-
3.3mm drill bit
Model Number: 2501-3.30S
-
3.5mm drill bit
Model Number: 2501-3.50S
-
4mm drill bit
Model Number: 2501-4.00S
-
4.5mm drill bit
Model Number: 2501-4.50S
-
5mm drill bit
Model Number: 2501-5.00S
-
5.5mm drill bit
Model Number: 2501-5.50S
-
6mm drill bit
Model Number: 2501-6.00S
-
6.5mm drill bit
Model Number: 2501-6.50S
-
7mm drill bit
Model Number: 2501-7.00S
-
7.5mm drill bit
Model Number: 2501-7.50S
-
8mm drill bit
Model Number: 2501-8.00S
-
8.5mm drill bit
Model Number: 2501-8.50S
-
9mm drill bit
Model Number: 2501-9.00S
-
9.5mm drill bit
Model Number: 2501-9.50S
-
10mm drill bit
Model Number: 2501-10.00S
-
10.5mm drill bit
Model Number: 2501-10.50S
-
11mm drill bit
Model Number: 2501-11.00S
-
11.5mm drill bit
Model Number: 2501-11.50S
-
12mm drill bit
Model Number: 2501-12.00S
-
12.5mm drill bit
Model Number: 2501-12.50S
-
13mm drill bit
Model Number: 2501-13.00S
