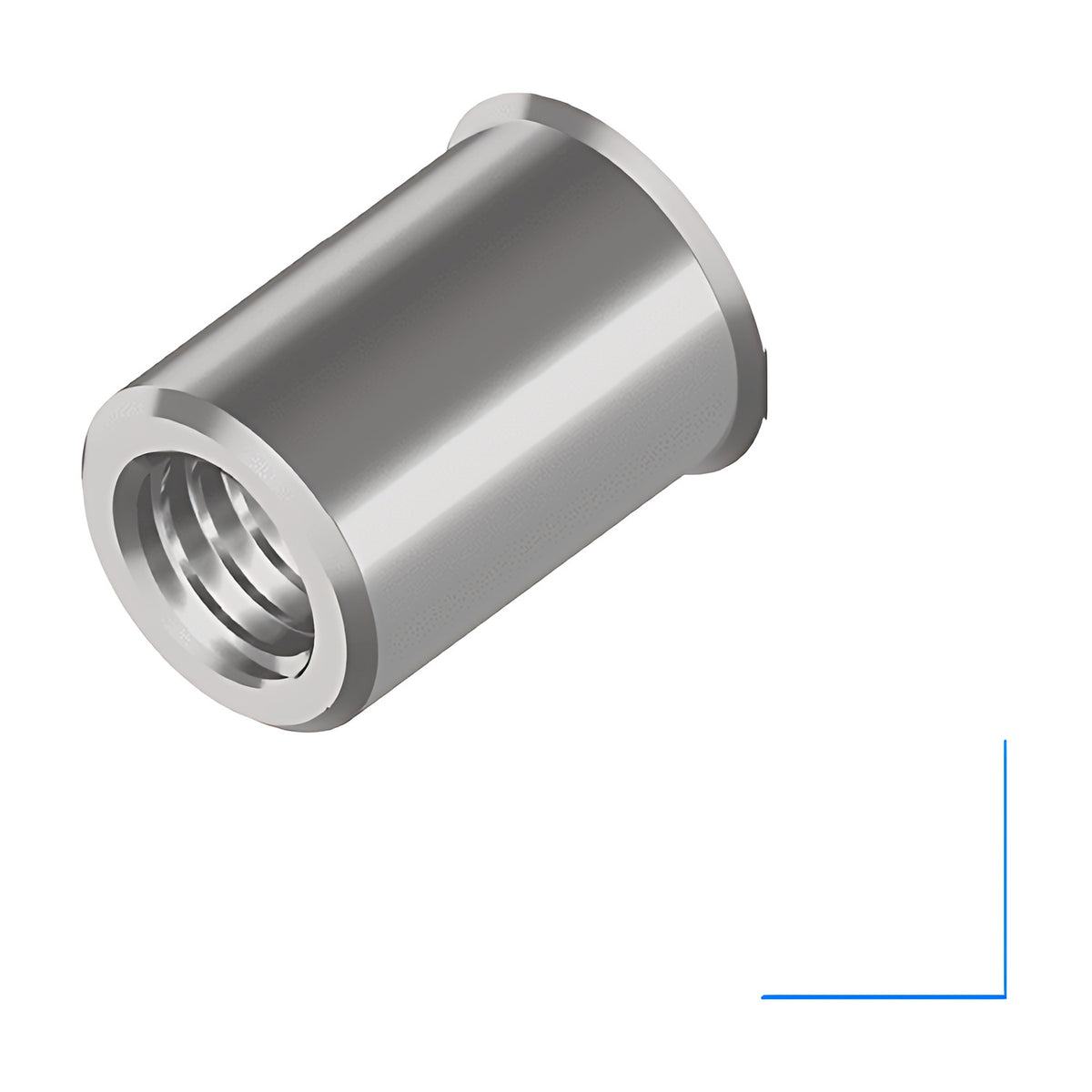

M6 Rivet Nut, 304 Stainless Steel - RNSA2M6L

This 304 stainless steel rivet nut is a threaded insert that is set into a drilled hole in sheet metal or tube with a rivet nut tool. It leaves an internal thread for a bolt or screw where only one side of the sheet is accessible.

This listing is a single size: M6. Each variant is supplied in packs of 100.

Made from 304 (A2) stainless steel, a standard austenitic grade with good everyday corrosion resistance. It is a sound choice away from the coast; in chloride-exposed settings, step up to 316 (A4). Metric sizes are written M followed by the nominal thread diameter in millimetres, so M10 is a 10 mm thread.

Austenitic stainless steel is generally non-magnetic, although cold-worked parts can show weak magnetism. Stainless threads can gall (seize) when tightened under load or at speed. A smear of anti-seize on the thread and a steady tightening speed reduce the risk.

Where this product is used

• Adding a threaded fixing point to sheet metal and tube
• Fresh water and general outdoor fittings
• Indoor architectural and joinery work
• Food-service and light food-handling equipment
• Mounting accessories to thin-wall tube and panels

Features

• Pack quantities to suit trade and bulk buying: packs of 100
• A2 (304) stainless steel for indoor, fresh water and general outdoor use
• Provides a strong thread in thin material
• Set from one side
• Metric thread sizes match the nuts, bolts and tapped holes in most Australian-supplied equipment

Key specifications

Selecting the right option

Match the thread size, hand (right or left) and flange style (large or small) to the application. The flange size is part of the product name. A rivet nut tool is needed to set it.

Related products

Other versions in this range: M6 304 Stainless Steel Left Hand Thread Large Flange Rivet Nut Box of 100, Right Hand Thread Rivet Nut - Large Flange - 304 Stainless Steel and Right Hand Thread Rivet Nut - Small Flange - 304 Stainless Steel.
