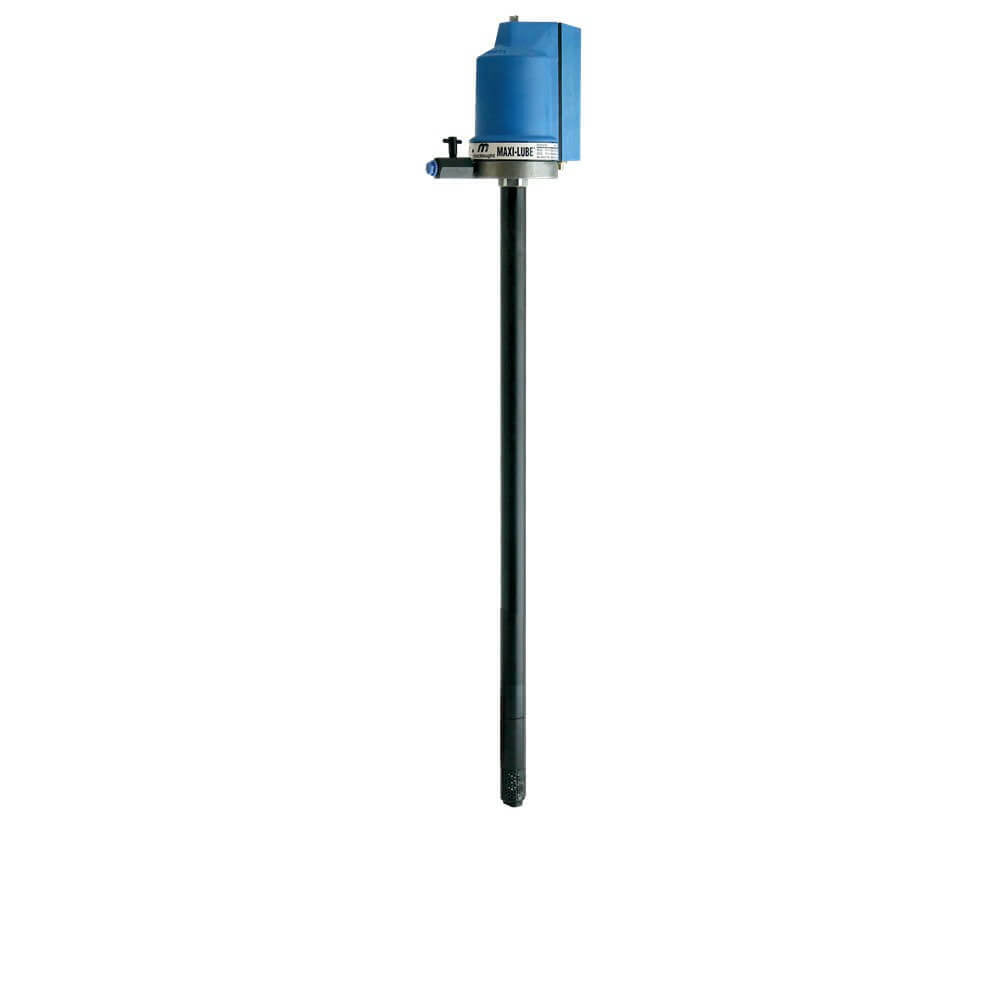

Macnaught P6001 MAXILUBE P6 Pump Only
Available
The Macnaught P6001 is the pump unit on its own for the P6 POWERLUBE 50:1 air-operated grease system. It is the pump in the P6-01 kit, which is built for 55kg pails, and in the P3-OS2 portable system. The pump-only version is the replacement pump for the P6-01 kit.
The 50:1 ratio means the pump multiplies your air pressure fifty times at the grease outlet. The grease pressure is fifty times the air going in, so 150 psi of air gives up to 7,500 psi (51,700 kPa) of grease at the pump. If you need the lid, follower plate, hose and gun as well, choose the P6-01 kit. The pump weighs 4.5kg.
Where this product is used
- Replacing the pump in a P6 POWERLUBE kit
- Building a 50:1 air grease set-up around your own lid, hose and gun
Features
- Pump unit only, the same P6001 that comes in the P6-01 kit and the P3-OS2 system
- 50:1 ratio with up to 460 g/min output and a maximum pump output pressure of 7,500 psi (51,700 kPa)
- Air supply: 60 to 150 psi (4 to 10.3 bar). The minimum compressor size as 0.08 m3/min (3 cfm).
- No airline lubricator is required. Put a few drops of light oil in the air inlet every 2 weeks, or more often with daily use.
- Air inlet and pump outlet are both 1/4" NPT (F)
- Grease up to NLGI No. 2
- Pump weight 4.5kg
- Never point the gun at yourself or anyone else. Never put any part of your body in front of the outlet. If accidental injection happens, get emergency medical attention straight away.
Key specifications
| Specification | Detail |
|---|---|
| Brand | Macnaught |
| Model | P6001 |
| Part number | P6001 |
| Type | Air-operated grease pump, pump only |
| Ratio | 50:1 |
| Pump | P6001 |
| Output | Up to 460 g/min at the pump |
| Maximum pump output pressure | 51,700 kPa (7,500 psi) |
| Air pressure | 60 to 150 psi (4 to 10.3 bar) |
| Minimum compressor size | 0.08 m3/min (3 cfm) |
| Air inlet | 1/4" NPT (F) |
| Pump outlet | 1/4" NPT (F) |
| Pump weight | 4.5kg |
| Used in | P6-01 kit and P3-OS2 system |
| Grease | Up to NLGI No. 2 |
| Wetted parts | Zinc, hard chrome-plated carbon steel, brass, nitrile and polyurethane rubber |
| Noise level | 85 dB at 2 m |
Supplied with
- P6001 pump unit
Related Macnaught products
- Macnaught MAXILUBE P8 Pump Only P8001: Other size or version
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Macnaught P6001 MAXILUBE P6 Pump Only
SKU: A0082836 | Model: P6001
The P6001 is the Macnaught P6 POWERLUBE pump on its own. It is a 50:1 air-operated grease pump with up to 460 g/min output and a 1/4" NPT (F) air inlet. It weighs 4.5kg. The kit parts such as the lid, hose and gun are separately.
