Hobson WRMSYSM03 M3 Metric Spring Washer, Flat Section
Available
This page lists 10 items of the Hobson metric spring washer, flat section (mild steel, zinc yellow passivate): M3 to M24.

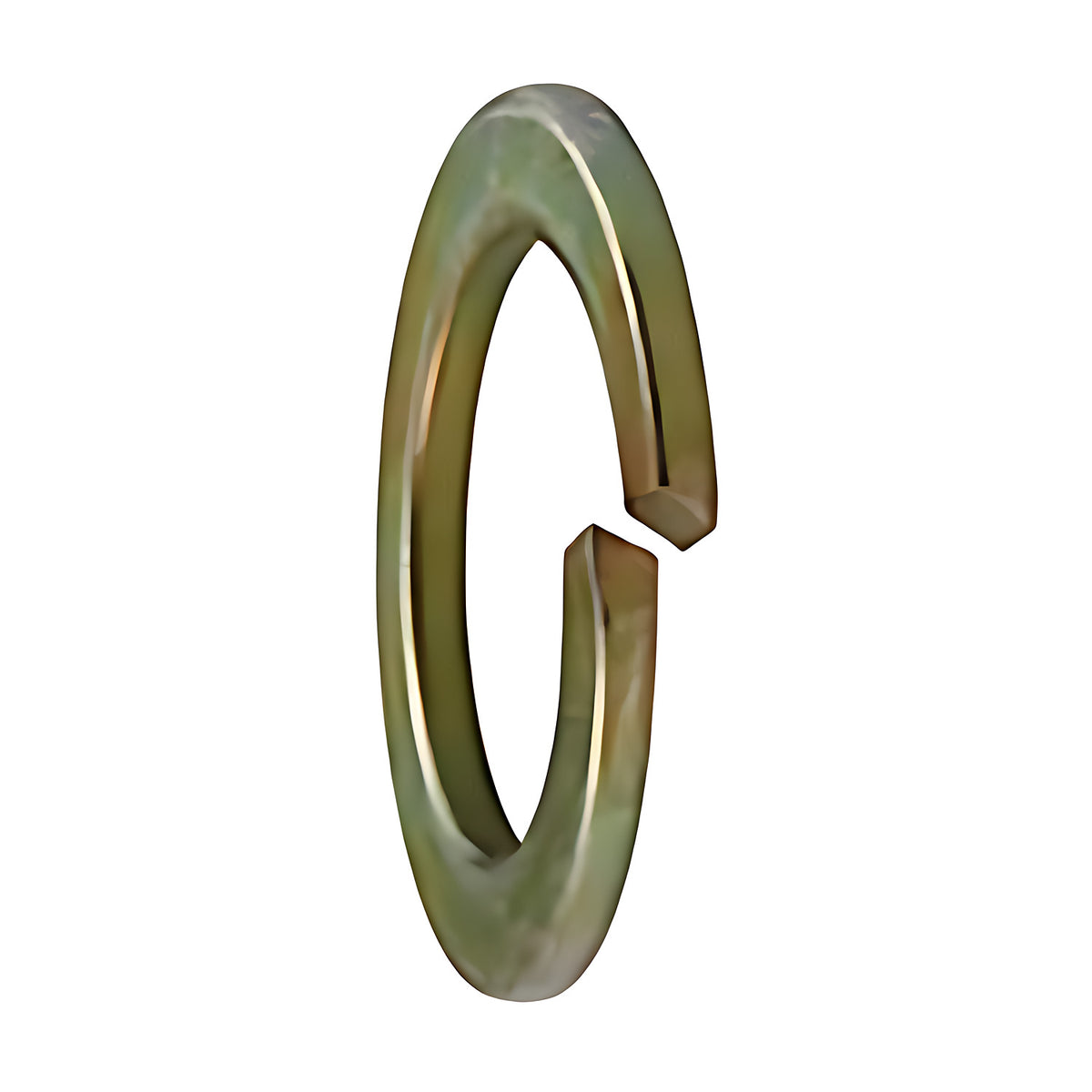

A spring washer is a split ring fitted under a nut or bolt head. In a flat section spring washer the ring is cut from flat strip, so its cross-section is a rectangle.
The supplier item description lists each size as the bolt or screw size followed by further figures without saying which is which. Those figures are shown as listed, and outside diameter and thickness are labelled only where the store option or the Hobson stock list states them.
Pack quantity varies by size and is shown for each item in the table.
Where this product is used
- Fitted under a nut or bolt head as a spring washer
- Where an assembly calls for a spring washer under the nut
Features
- 10 items: M3 to M24
- Mild steel, zinc yellow passivate
- Dimensions shown as listed by the supplier
- Pack quantity shown for each item
Common specifications
| Specification | Detail |
|---|---|
| Sizes | M3 to M24 |
| Material | Mild steel |
| Finish | Zinc yellow passivate |
Key specifications
| Model | Size | Listed dimensions | Supplied as |
|---|---|---|---|
| WRMSYSM03 | M3 | M3 x 6.2 x 0.8mm | Box of 200 |
| WRMSYSM04 | M4 | M4 x 7.6mm | Box of 200 |
| WRMSYSM05 | M5 | M5 x 9.2 x 1.2mm | Box of 200 |
| WRMSYSM06 | M6 | M6 x 11.8 x 1.6mm | Box of 200 |
| WRMSYSM08 | M8 | M8 x 14.8 x 2mm | Box of 200 |
| WRMSYSM10 | M10 | M10 x 18.1 x 2.2mm | Box of 200 |
| WRMSYSM12 | M12 | M12 x 21.1 x 2.5mm | Box of 200 |
| WRMSYSM16 | M16 | M16 x 27.4 x 3.5mm | Box of 200 |
| WRMSYSM20 | M20 | M20 x 33.6 x 4mm | Box of 100 |
| WRMSYSM24 | M24 | M24 x 40 x 5mm | Box of 100 |
Selecting the right option
Choose the washer by the bolt size it is made for, then check the dimensions in the table against your joint. Zinc yellow passivate is zinc plating with a yellow chromate topcoat (the Hobson acronym list names this ZY) (manufacturer-stated). For a similar washer in another material, finish or size range see Hobson Metric Spring Washer, Flat Section, Hot Dip Galvanised, M6, M30 and M36 and Hobson Metric Spring Washer, Flat Section, Zinc Plated, M3 to M5.
Related products
Related washers: Hobson Metric Spring Washer, Flat Section, Hot Dip Galvanised, M6, M30 and M36, Hobson Metric Spring Washer, Flat Section, Zinc Plated, M3 to M5 and Hobson Metric Spring Washer, Square Section, Zinc Plated, M4 to M24.
