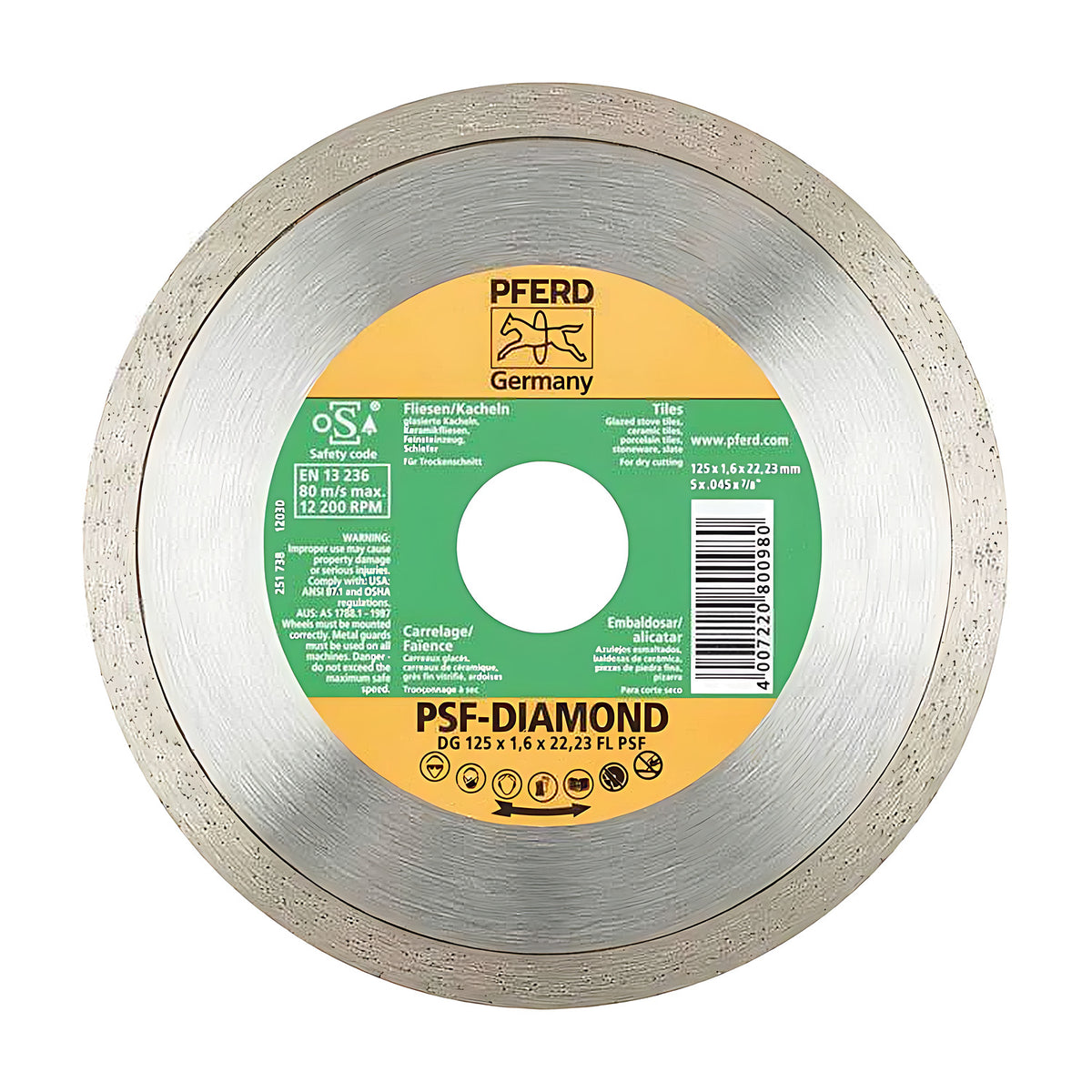

Pferd 68300035 DG FL PSF Diamond Cut-Off Wheel 100 x 1.6 mm, 20 mm Bore

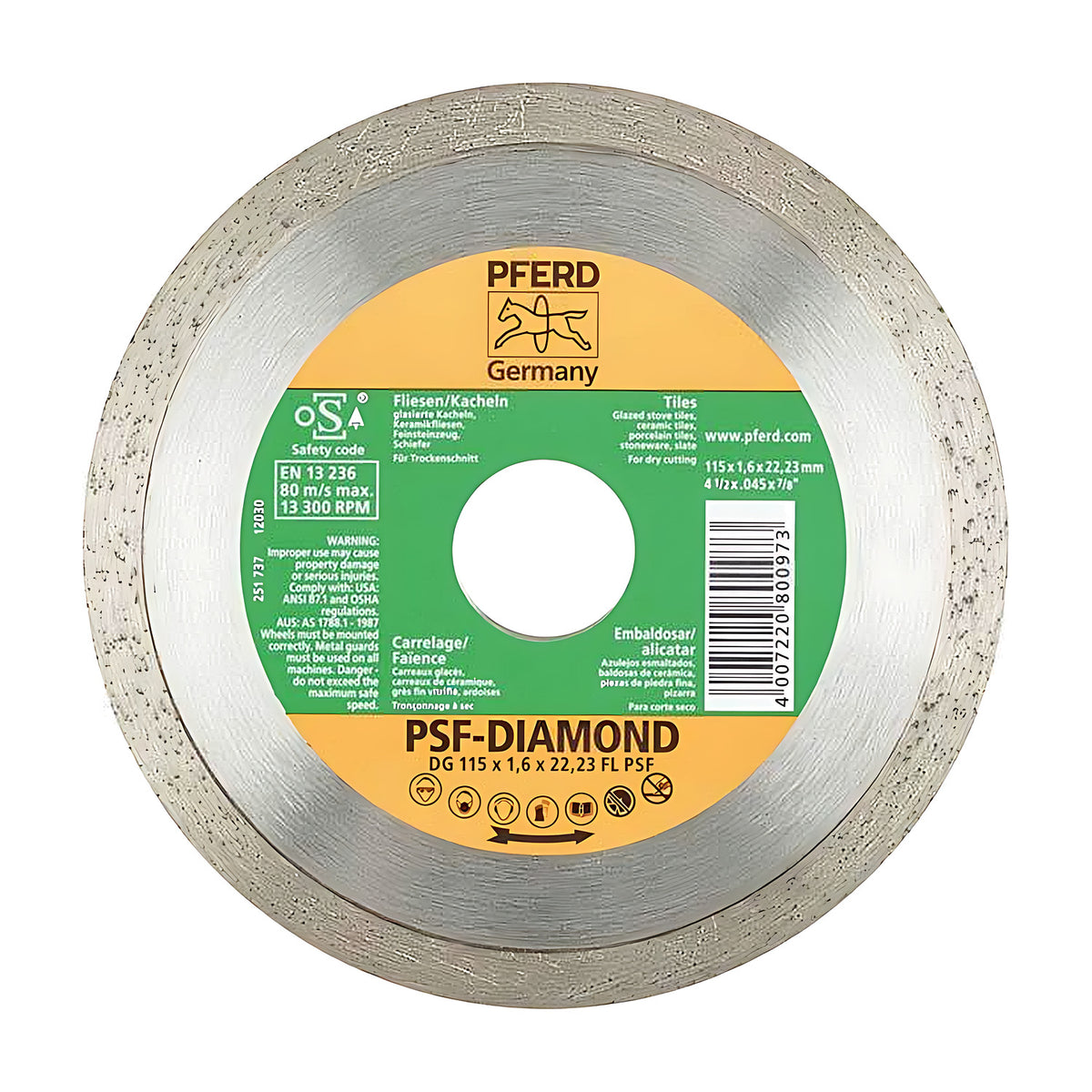

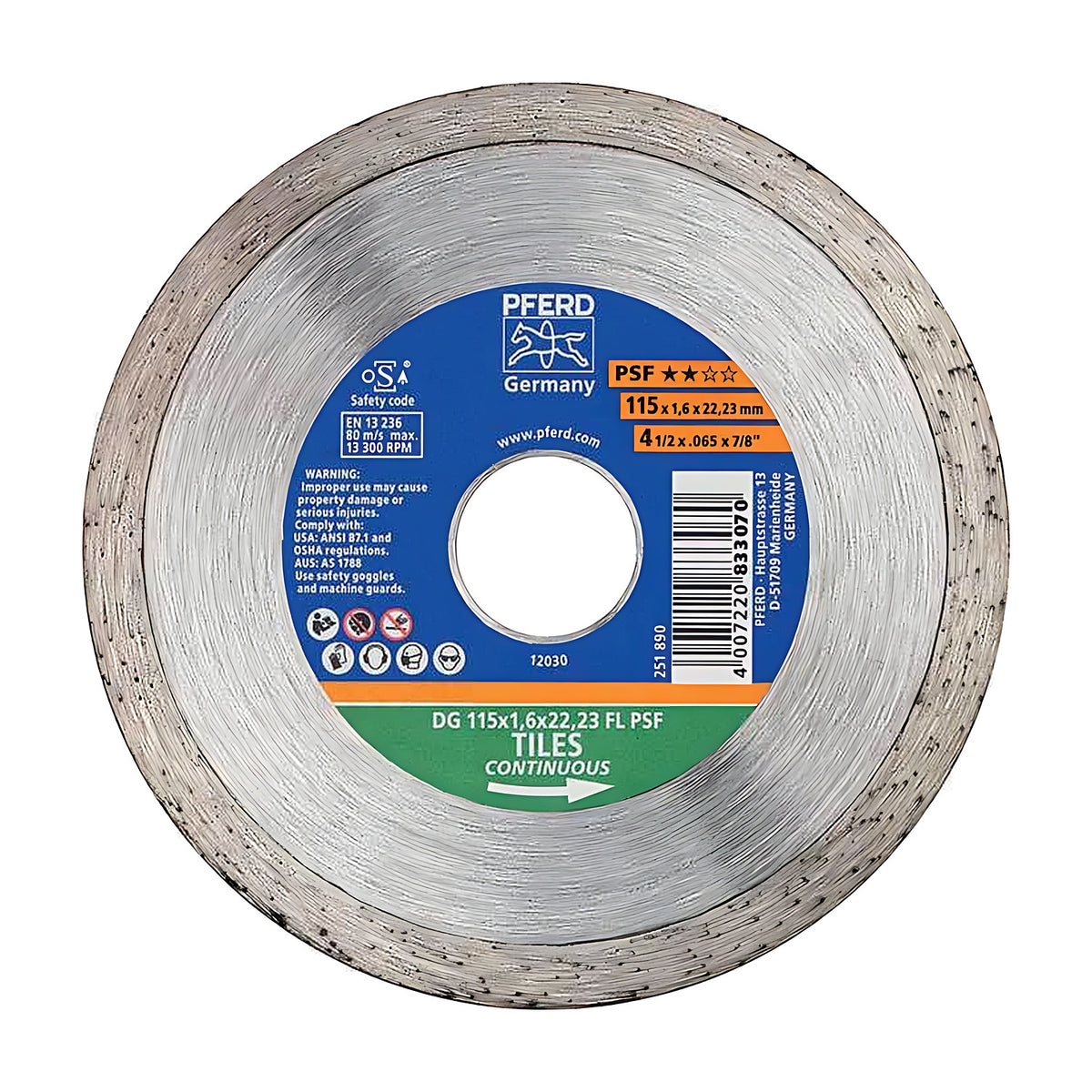

The Pferd DG FL PSF is a general-purpose diamond cut-off wheel with a continuous rim for fine cutting of tiles. This page lists three items: 100 mm with a 20 mm bore, and 115 and 125 mm with a 22.23 mm bore, all with a 1.6 mm thick rim.

The catalogue describes the DG FL PSF as a general-purpose continuous-edge tool for cutting without edge breakages on workpieces with high-grade surfaces, with high cutting performance and a good tool life (manufacturer-stated).

Features listed are high-grade diamond, good cutting characteristics with short cutting times, and good ease of cutting with high economic efficiency (manufacturer-stated).

The catalogue material guide lists the DG FL type for glazed tiles, ceramic tiles, porcelain stoneware, slate and marble (manufacturer-stated).

Items 68300040 and 68300041 are not printed in the catalogue under these item numbers. Their details come from the PFERD web page, where they are shown as version FL (ZA).

Where this product is used

• Cutting tiles without edge breakage on workpieces with high-grade surfaces (manufacturer-stated)
• Cutting glazed tiles, ceramic tiles, porcelain stoneware, slate and marble (material guide for the DG FL type) (manufacturer-stated)
• Cutting and cutting out holes in tiles with an angle grinder (web page applications) (manufacturer-stated)

Features

• Continuous rim (shape DG FL) for very fine cutting (manufacturer-stated)
• Diameters 100, 115 and 125 mm, 1.6 mm thick (manufacturer-stated)
• Maximum speed 15,300 rpm (100 mm), 13,300 rpm (115 mm) and 12,200 rpm (125 mm) (manufacturer-stated)
• Rim height (X) 7 mm (manufacturer-stated)
• Drive types on the web page: angle grinder and drive spindle (manufacturer-stated)

Common specifications

Key specifications

Each item number is a separate diameter. Bore with adapter (HR) is shown only where listed (the 100 mm wheel).

Selecting the right option

Match the bore (or the adapter bore listed in the table) and the diameter to your angle grinder or saw. The web page recommends wet cutting where possible, with only slight pressure to stop the tool overheating (manufacturer-stated). Never exceed the maximum speed printed for the item. The catalogue says PFERD diamond tools conform to EN 13236 and carry the oSa mark, and its safety pictograms include wear eye protection, hearing protection and a dust mask, not permitted for face grinding, and do not use if damaged (manufacturer-stated).
