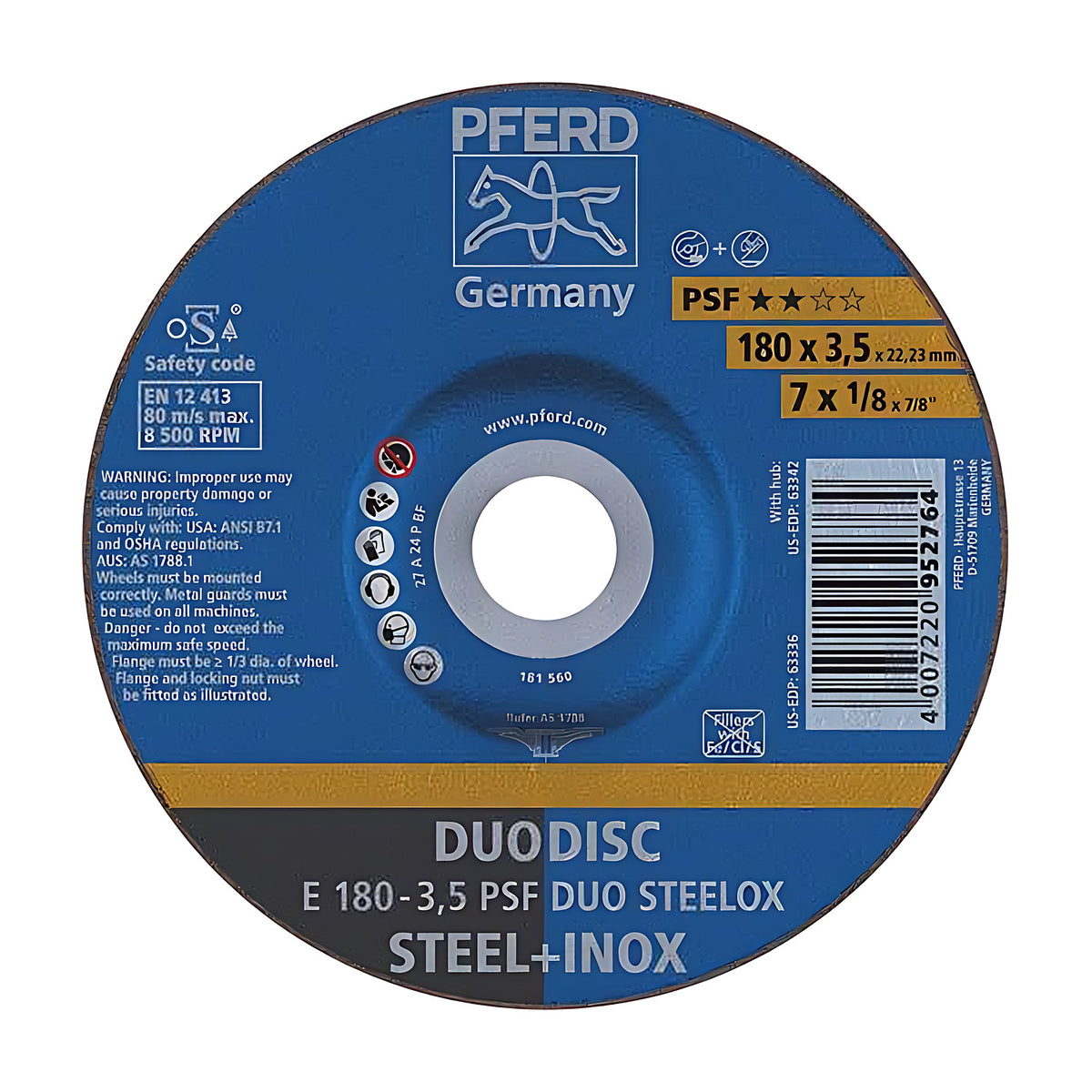

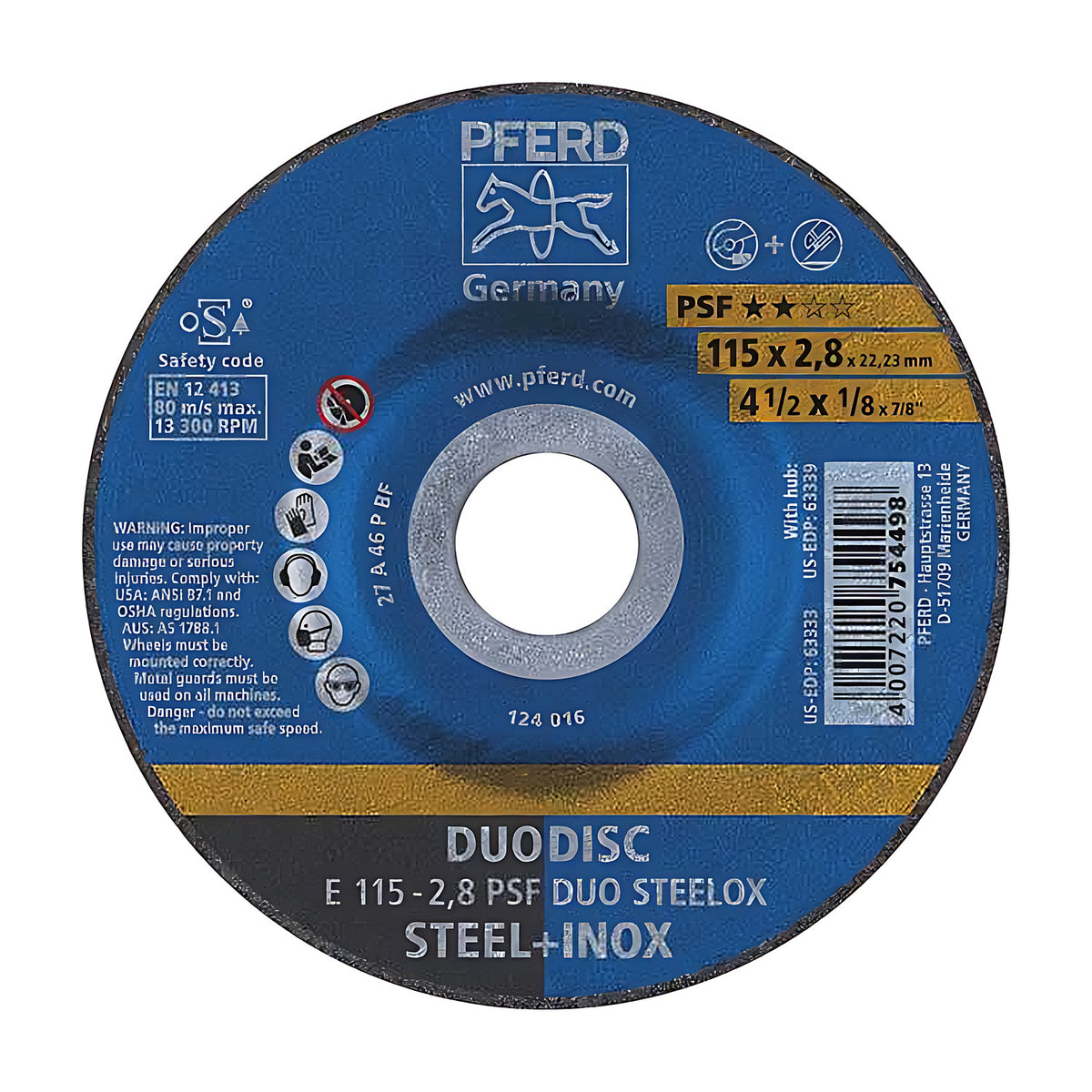

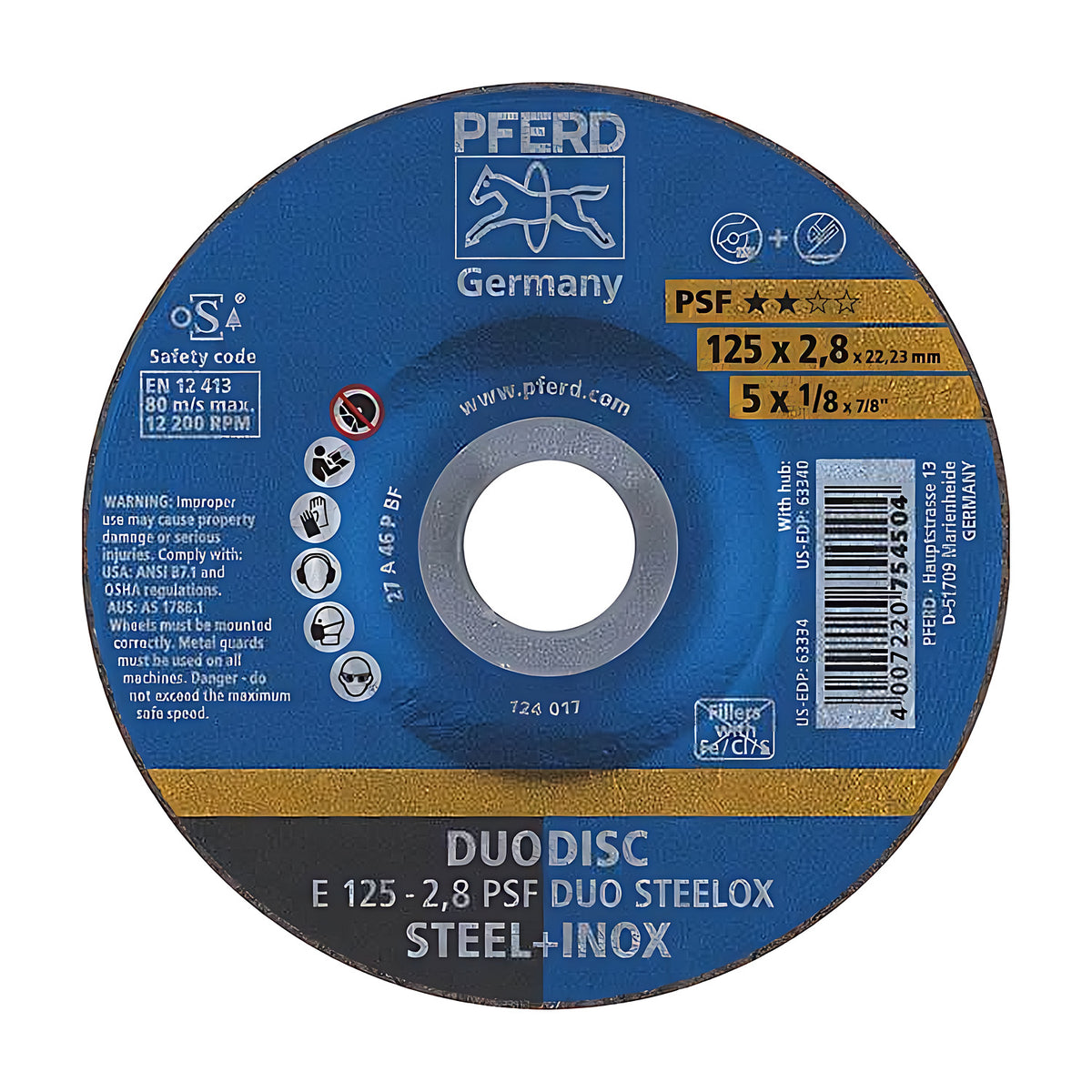

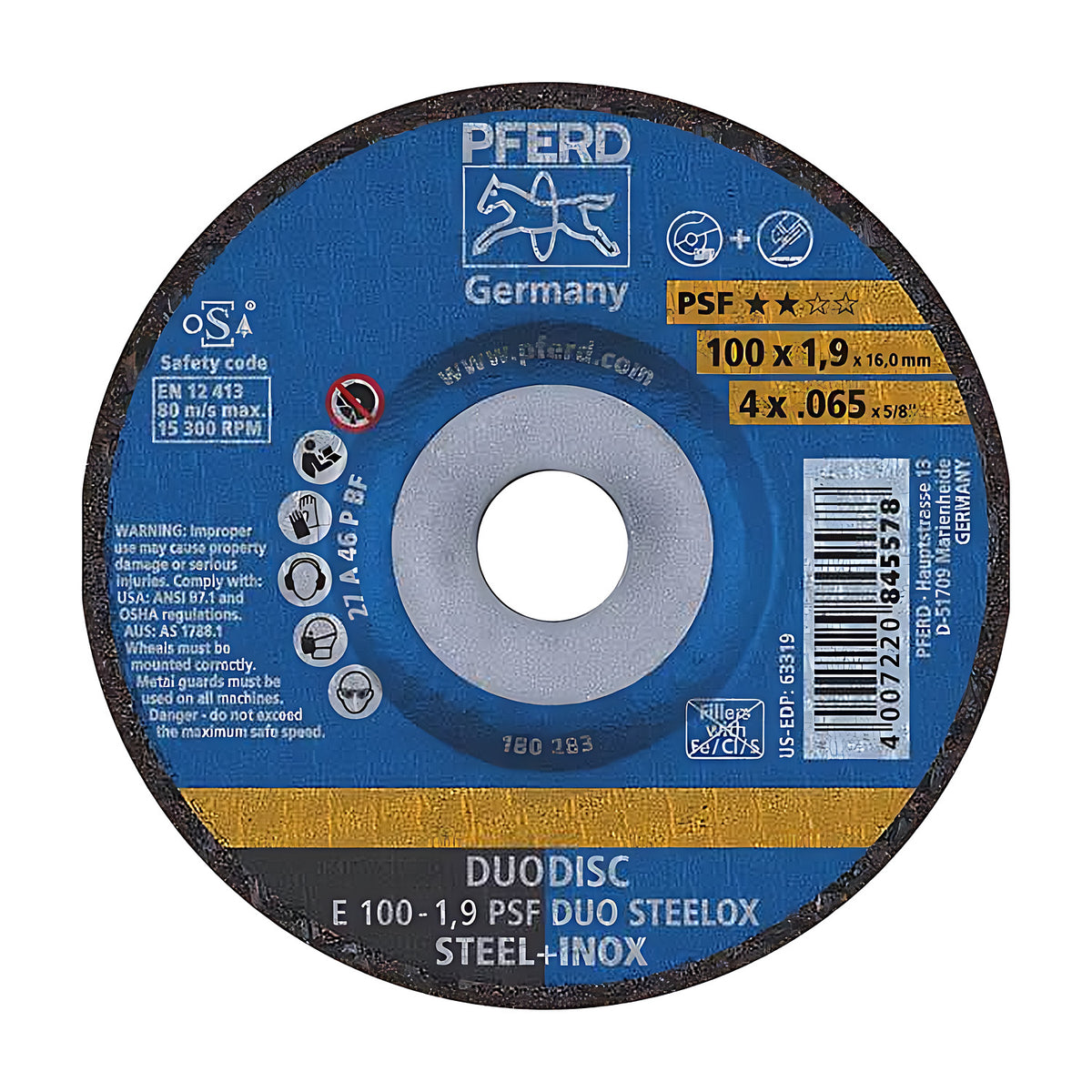

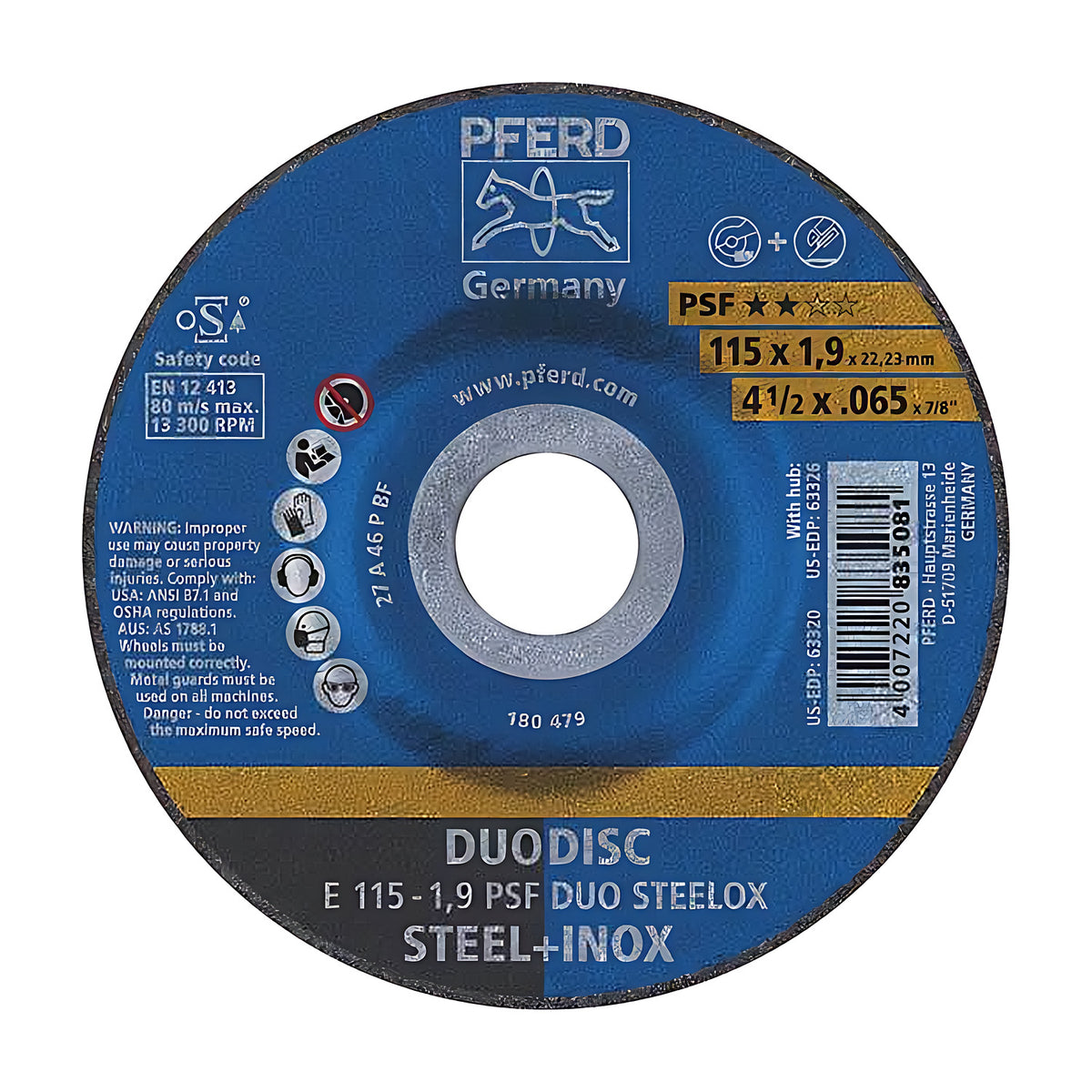

Pferd 62010630 PSF Duo Steelox Cutting and Grinding Wheel 100 x 1.9 mm

This page lists 6 Pferd PSF Duo Steelox depressed-centre cutting and grinding wheels, 100 to 180 mm in diameter and 1.9, 2.8 and 3.5 mm thick. The catalogue describes the range as a Universal Line PSF combination wheel for steel and stainless steel (INOX), with high cutting performance and good tool life (manufacturer-stated).

The catalogue lists these wheels for cutting, deburring, grouting, surface grinding, and work on fillet welds and weld seams in steel and stainless steel (INOX) (manufacturer-stated).

Each item is a depressed-centre design E (type 27) wheel and the catalogue groups this range under angle grinders, cutting and grinding (manufacturer-stated).

The catalogue label key explains that suitability for stainless steel (INOX) means the wheel is manufactured without the addition of ferrous, chlorinated or sulphurous fillers (manufacturer-stated).

Where this product is used

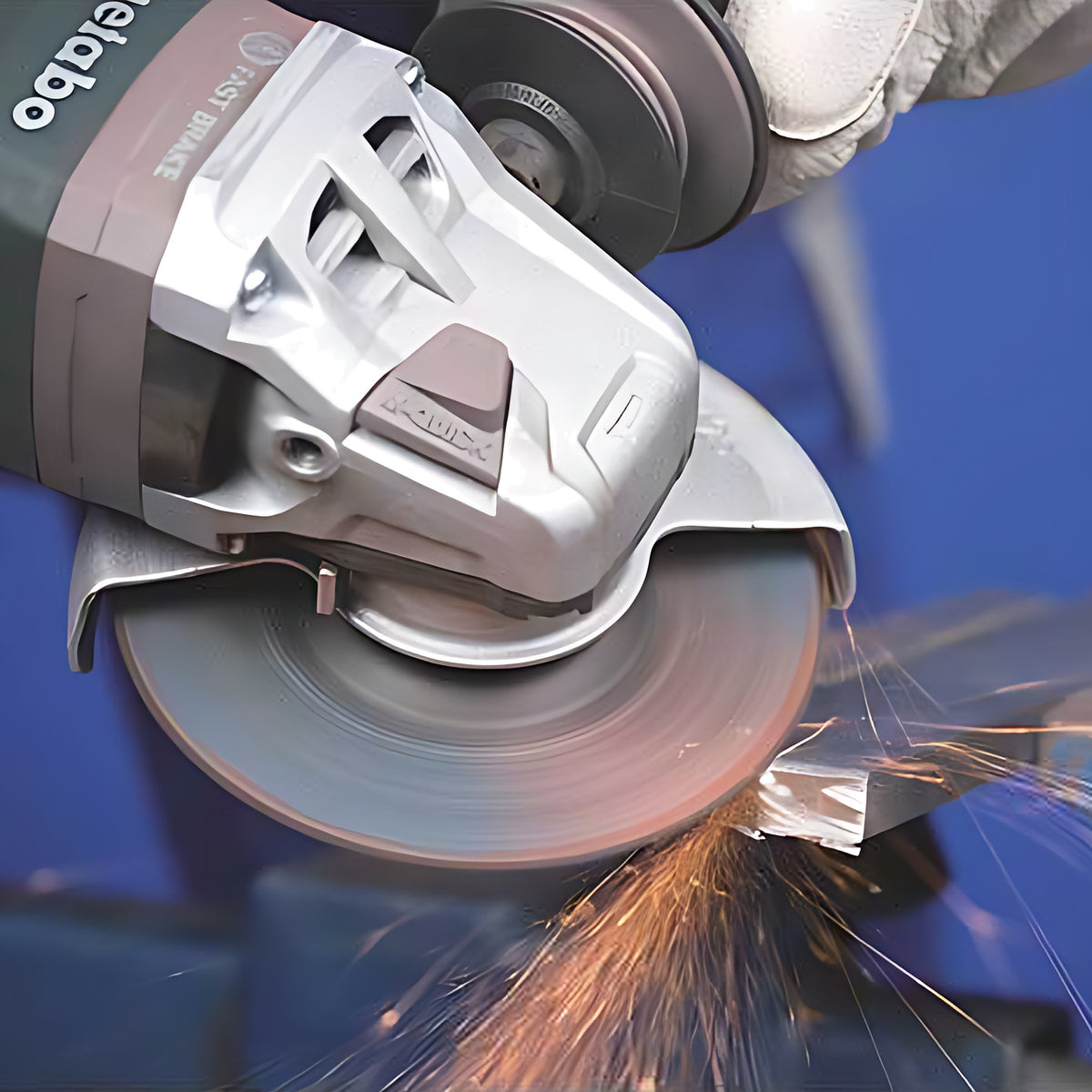

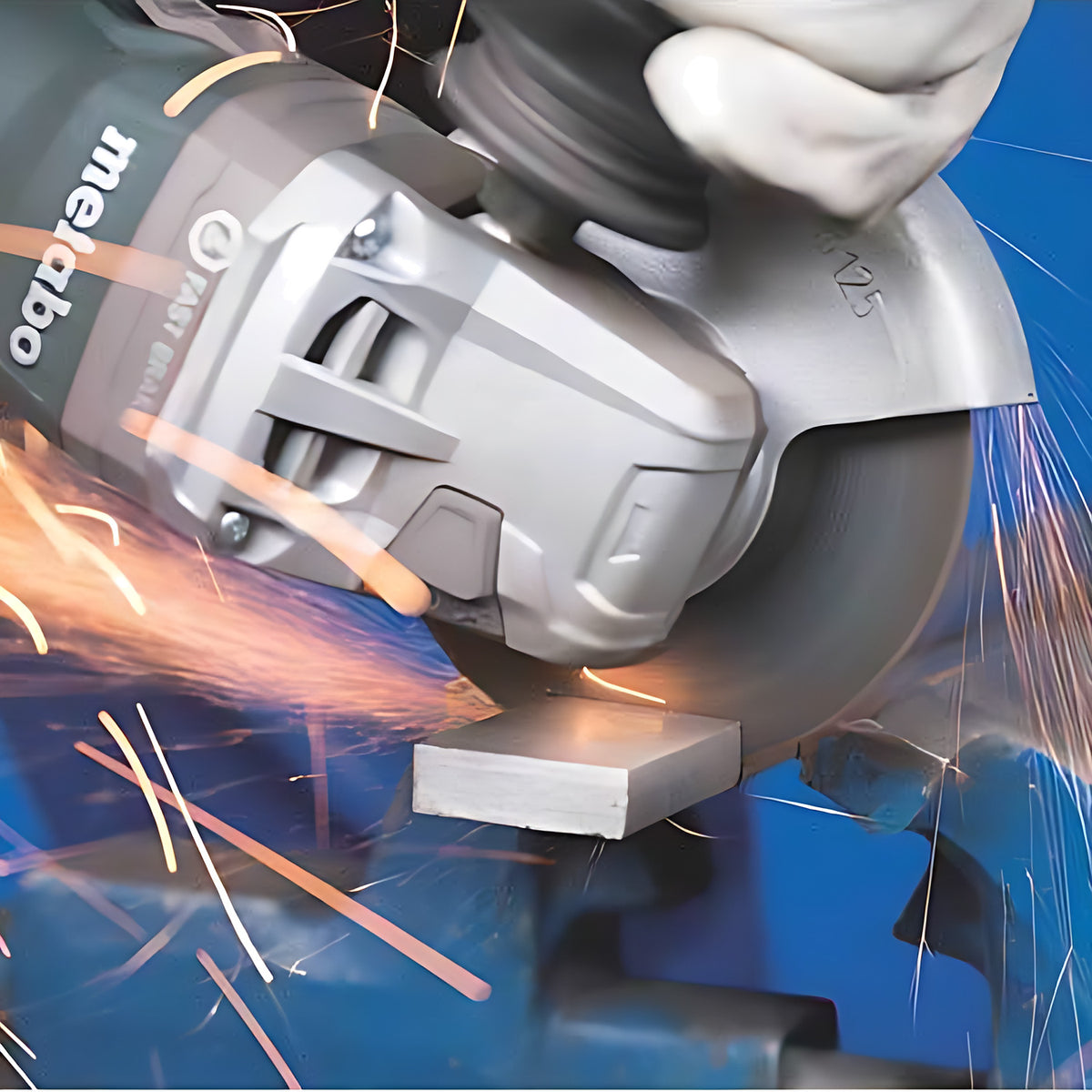

• Cutting, deburring, grouting, surface grinding, and work on fillet welds and weld seams in steel and stainless steel (INOX) (manufacturer-stated)
• Tool drive: angle grinders, cutting and grinding (manufacturer-stated)
• The label shows the material or materials each wheel is suitable for (manufacturer-stated)

Features

• Diameters 100 to 180 mm, thicknesses 1.9, 2.8 and 3.5 mm, 16 and 22.23 mm bore (manufacturer-stated)
• Maximum speed from 8,500 to 15,300 rpm depending on diameter (manufacturer-stated)
• Depressed-centre design E (type 27) (manufacturer-stated)
• Combination wheel for cutting and face grinding with one tool (manufacturer-stated)
• Described for grinding work on scale and as suited to cordless angle grinders (manufacturer-stated)

Common specifications

Safety markings and handling

• PFERD TOOLS is a founding member of the Organization for the Safety of Abrasives (oSa); the catalogue says its grinding tools carry the oSa mark and the EN 12413 standard number for bonded abrasives such as cut-off wheels (manufacturer-stated)
• Hand-held grinding tools with bond types B and BF, including cut-off wheels, must not be used after the expiry date marked on the label, in accordance with EN 12413; the date is stated as month and year (manufacturer-stated)
• Always observe the instructions on the grinding tool, the grinding machine and all accompanying user information; a tool that cannot be clearly identified should never be used (manufacturer-stated)
• The material information in the bottom section of the label shows which materials the wheel is suitable for (manufacturer-stated)

Key specifications

Each item number is a separate diameter and thickness combination; maximum speed depends on the diameter. Where the size option reads 178 mm, the catalogue lists the same wheel as 180 mm.

Selecting the right option

Choose the diameter to suit your angle grinder and its guard, and the thickness to suit the job. Check the Max. RPM listed for the item against the rated speed of your angle grinder before fitting it. The catalogue safety notes say to use a guard, wear eye protection, hearing protection, gloves and a dust mask, follow the safety instructions and not use a damaged tool (manufacturer-stated).
