Pferd 61340396 SG Inox Flat Cut-Off Wheel 115 x 0.8 mm, 22.23 mm Bore

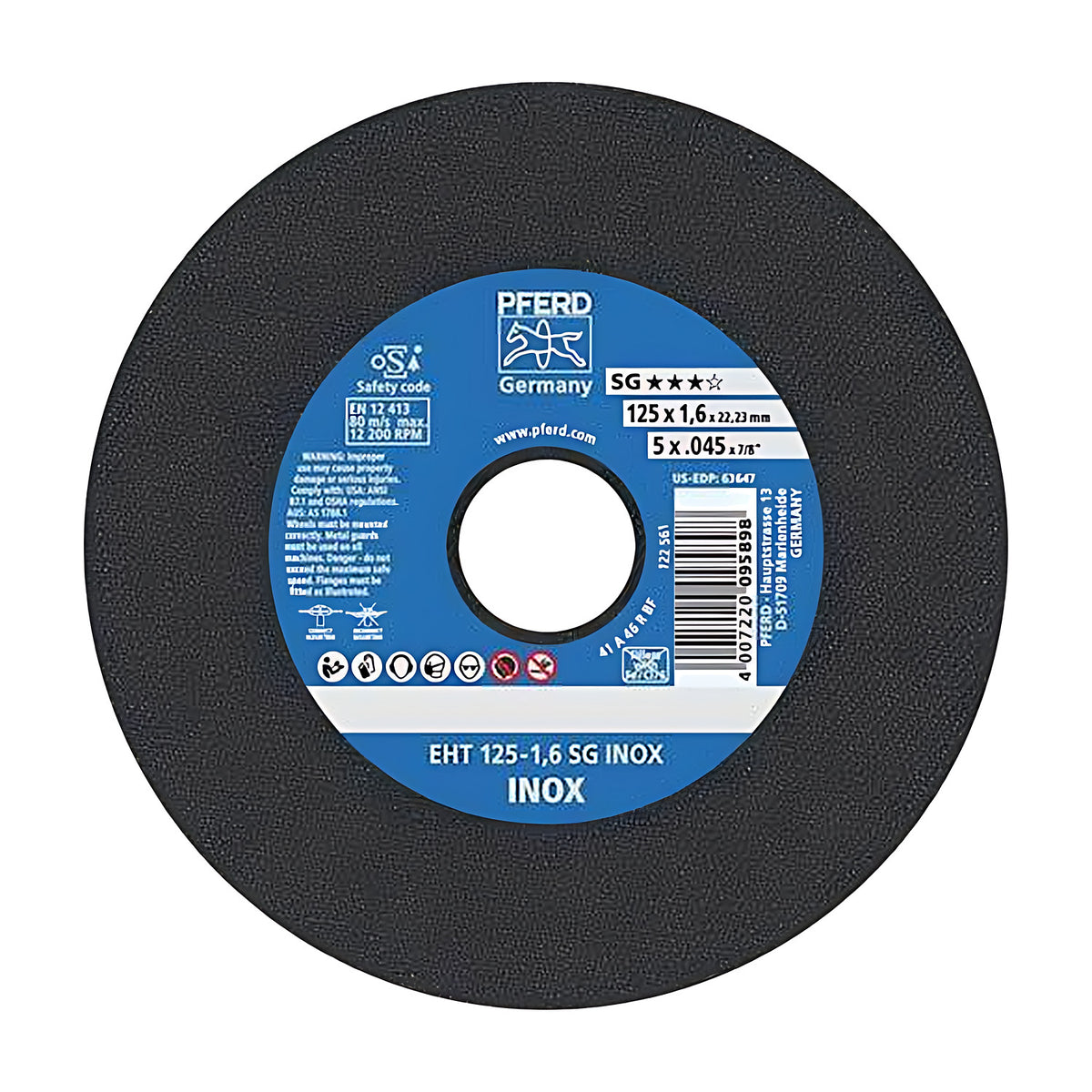

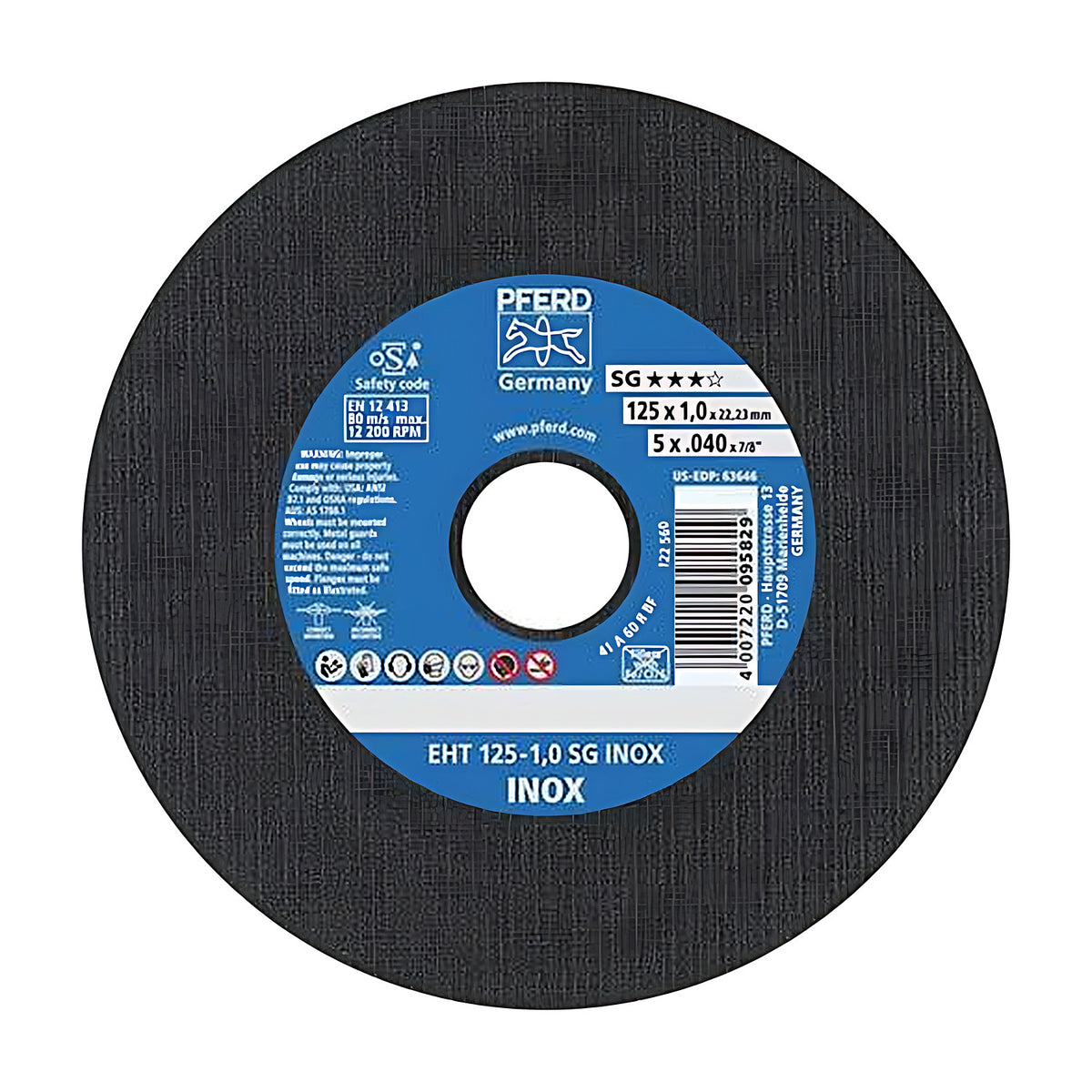

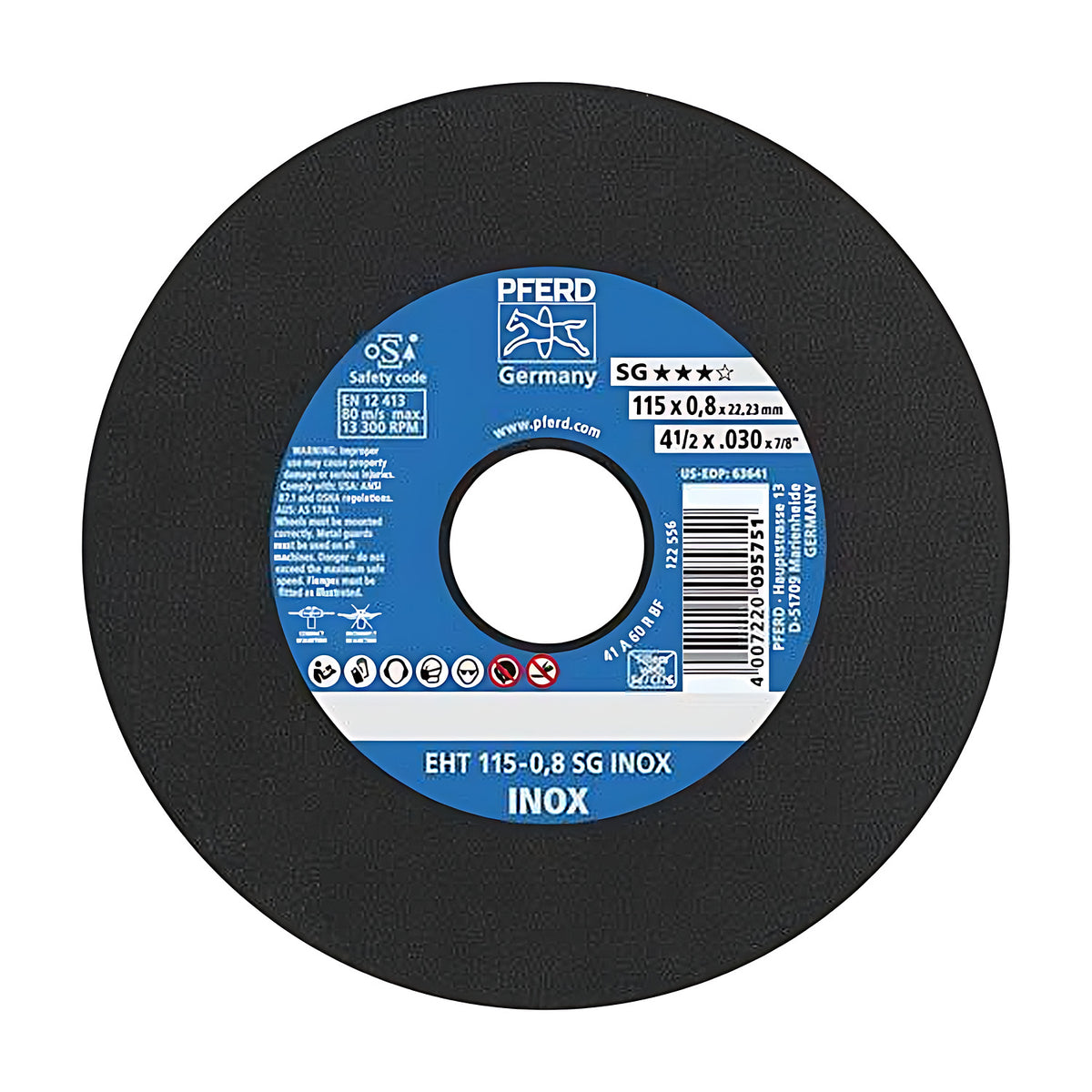

This page lists 4 Pferd SG Inox flat cut-off wheels, 115 and 125 mm in diameter and 0.8, 1.0 and 1.6 mm thick. The catalogue describes the range as a Performance Line SG cut-off wheel for stainless steel (INOX), with high cutting performance (manufacturer-stated).

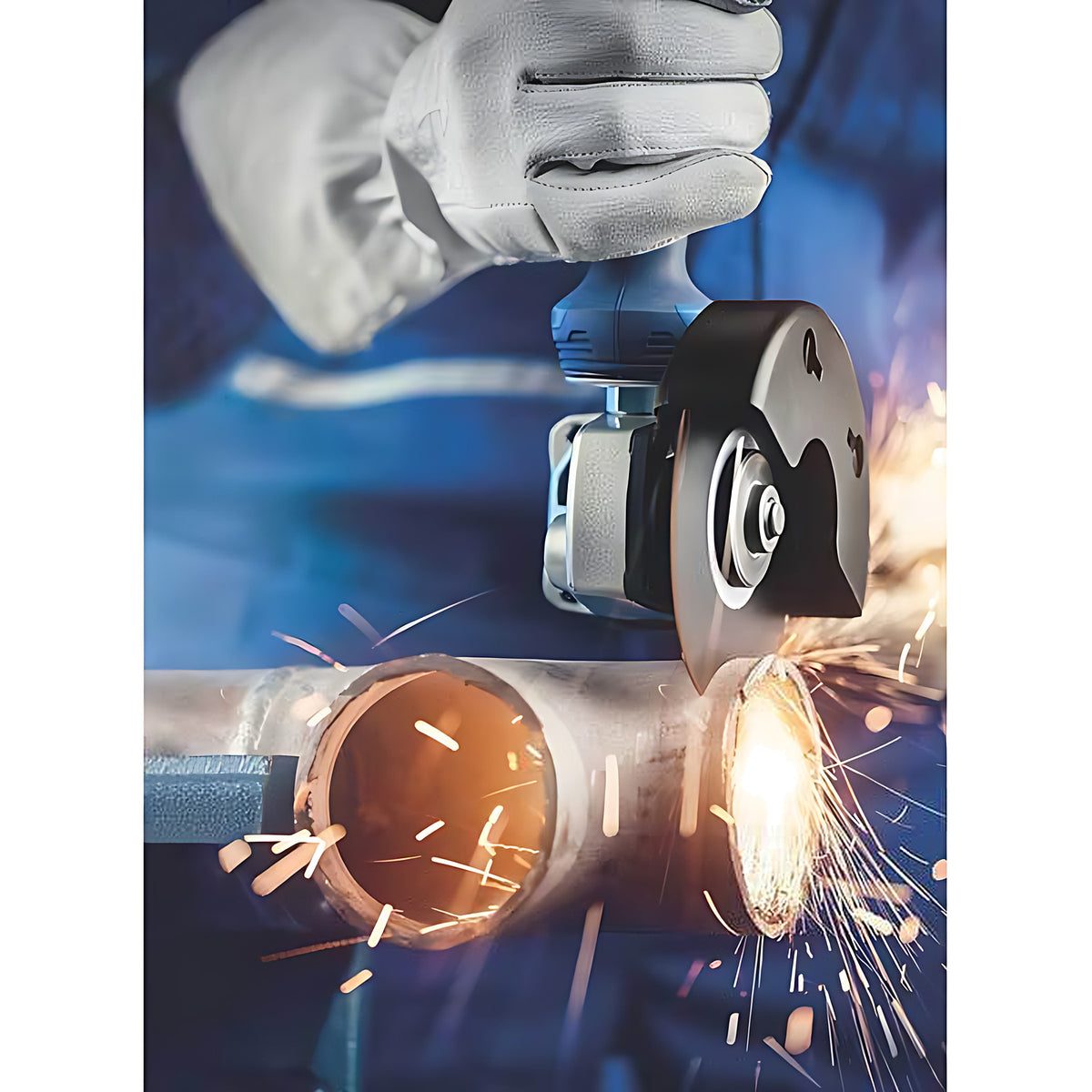

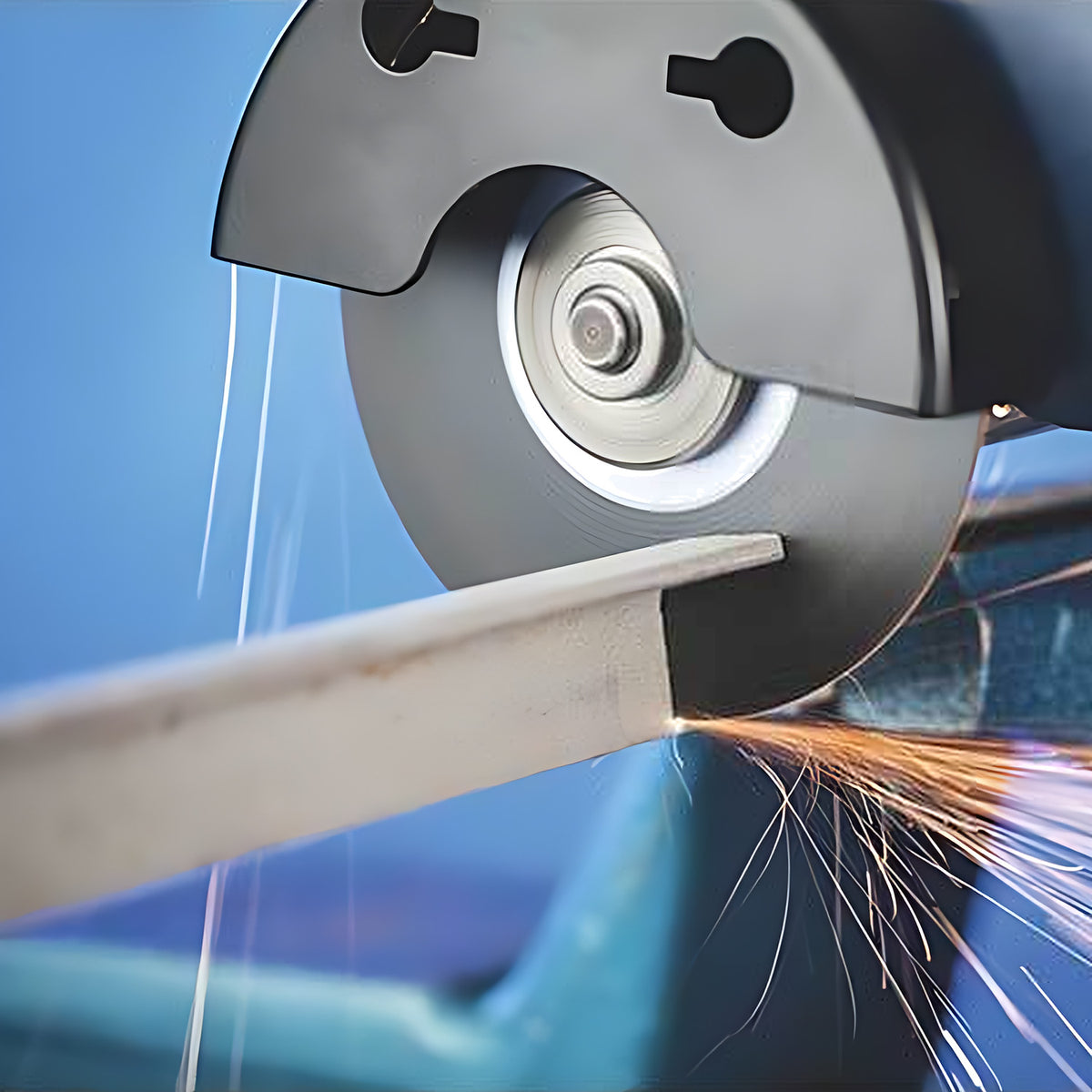

The catalogue lists these wheels for cutting sheet metal, profiles and solid material in stainless steel (INOX), and cutting out holes (manufacturer-stated).

Each item is a flat design EHT (shape 41) wheel and the catalogue groups this range under angle grinders, cutting (manufacturer-stated).

The catalogue describes its thin cut-off wheels as giving fast, thin cuts with minimised burr formation; its width guide counts wheels up to 1.6 mm at 50 to 125 mm diameter and up to 2.0 mm at 150 to 230 mm diameter as thin (manufacturer-stated).

The catalogue label key explains that suitability for stainless steel (INOX) means the wheel is manufactured without the addition of ferrous, chlorinated or sulphurous fillers (manufacturer-stated).

Where this product is used

• Cutting sheet metal, profiles and solid material in stainless steel (INOX), and cutting out holes (manufacturer-stated)
• Tool drive: angle grinders, cutting (manufacturer-stated)
• The label shows the material or materials each wheel is suitable for (manufacturer-stated)

Features

• Diameters 115 and 125 mm, thicknesses 0.8, 1.0 and 1.6 mm, 22.23 mm bore (manufacturer-stated)
• Maximum speed from 12,200 to 13,300 rpm depending on diameter (manufacturer-stated)
• Flat design EHT (shape 41) (manufacturer-stated)
• Cut-off wheel for stainless steel (INOX) with high cutting performance (manufacturer-stated)
• Thin wheels are described as giving fast, thin cuts with minimised burr formation (manufacturer-stated)

Common specifications

Safety markings and handling

• PFERD TOOLS is a founding member of the Organization for the Safety of Abrasives (oSa); the catalogue says its grinding tools carry the oSa mark and the EN 12413 standard number for bonded abrasives such as cut-off wheels (manufacturer-stated)
• Hand-held grinding tools with bond types B and BF, including cut-off wheels, must not be used after the expiry date marked on the label, in accordance with EN 12413; the date is stated as month and year (manufacturer-stated)
• Always observe the instructions on the grinding tool, the grinding machine and all accompanying user information; a tool that cannot be clearly identified should never be used (manufacturer-stated)
• The material information in the bottom section of the label shows which materials the wheel is suitable for (manufacturer-stated)

Key specifications

Each item number is a separate diameter and thickness combination; maximum speed depends on the diameter.

Selecting the right option

Choose the diameter to suit your angle grinder and its guard, and the thickness to suit the job. The catalogue width guide lists 0.8 mm at 50 to 125 mm diameter for precise sheet metal work; 1.0 mm at 50 to 125 mm diameter for a universal width with a focus on speed and comfort; 1.6 mm at 50 to 125 mm diameter for a universal width with a focus on tool life and comfort (manufacturer-stated). Check the Max. RPM listed for the item against the rated speed of your angle grinder before fitting it. The catalogue safety notes say to use a guard, wear eye protection, hearing protection, gloves and a dust mask, follow the safety instructions and not use a damaged tool (manufacturer-stated).
