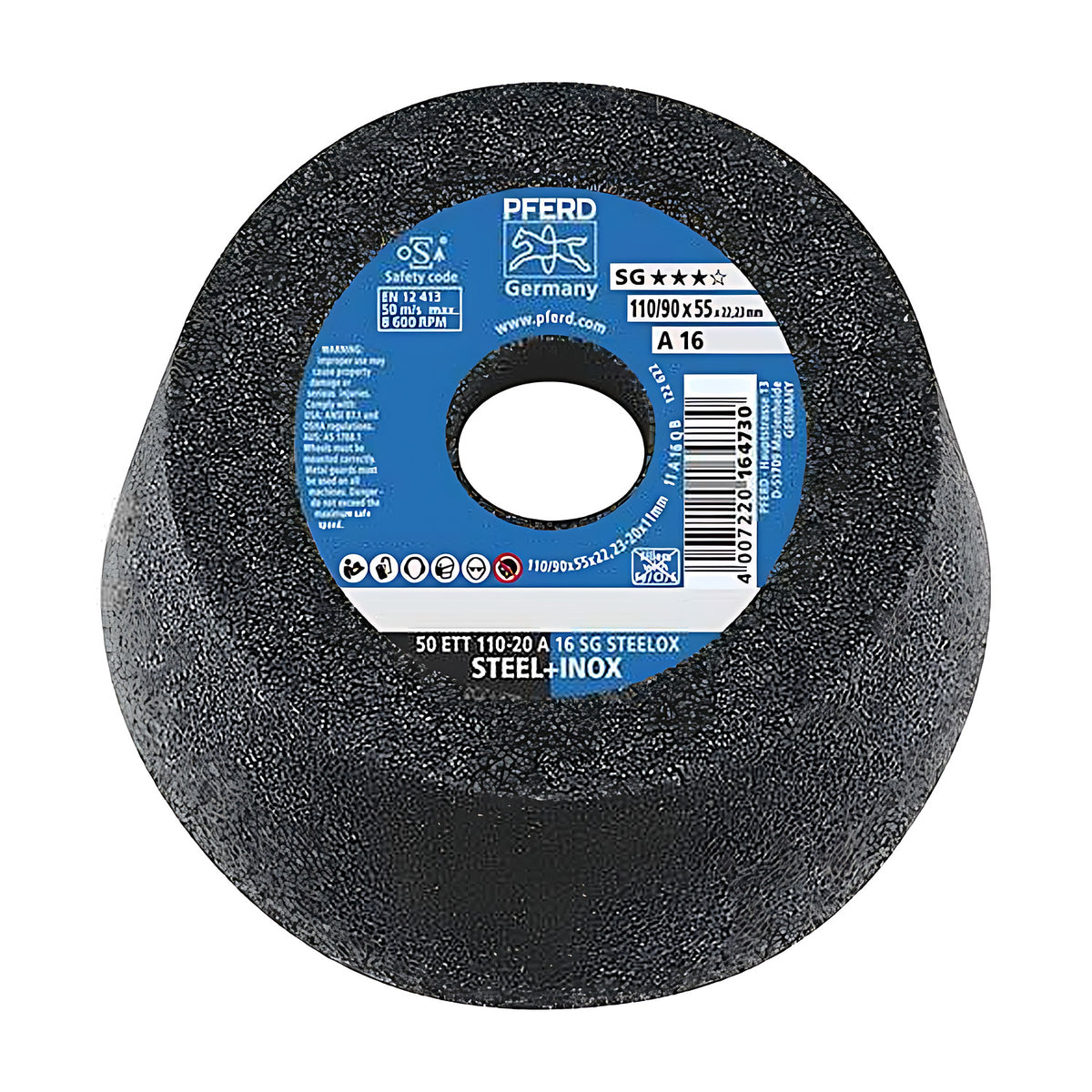

Pferd 63418222 SG STEELOX Conical Cup Wheel 110 mm, Grit 16, 22.23 mm bore

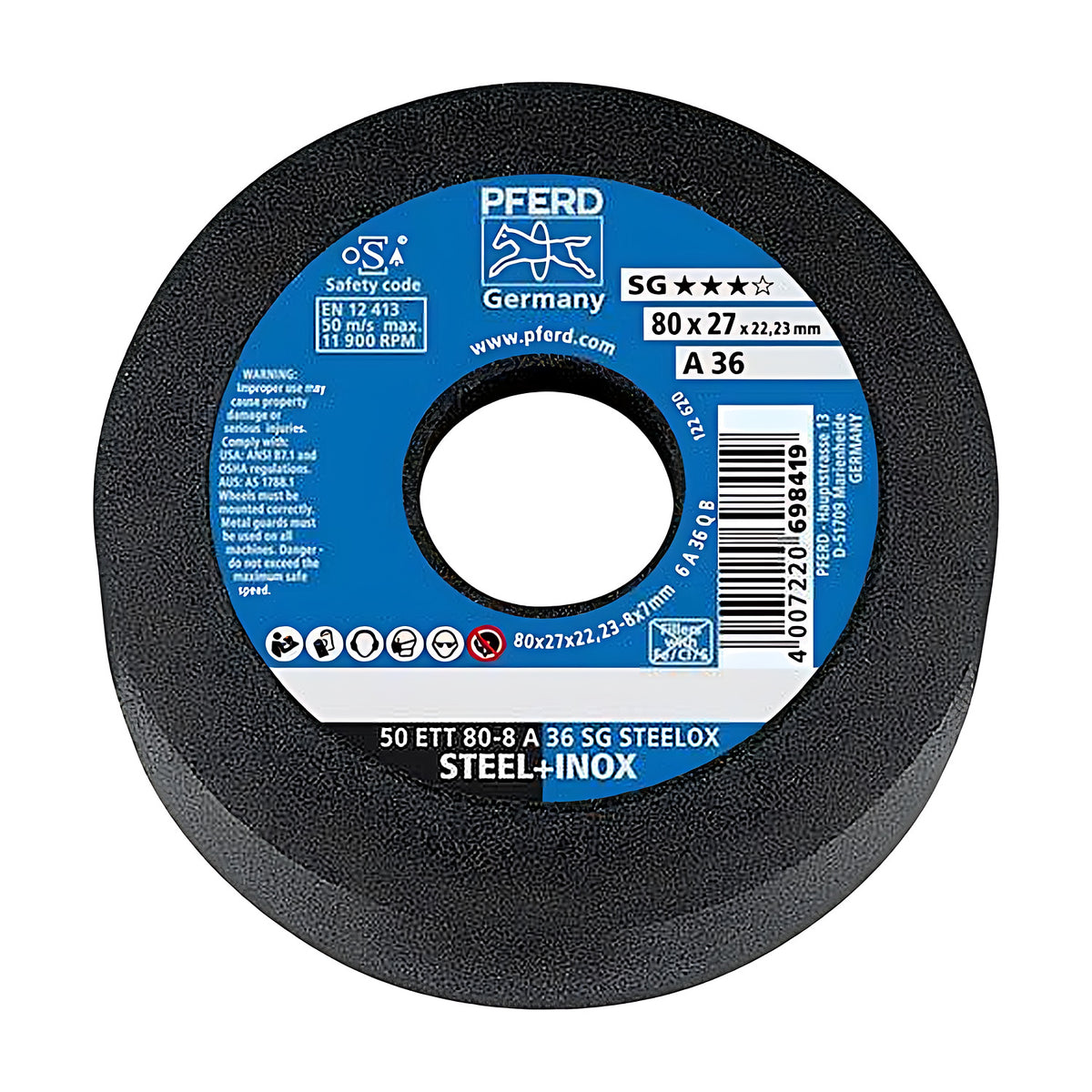

The Pferd SG STEELOX cup wheel is a bonded abrasive cup wheel for steel and stainless steel (INOX), for use on an angle grinder. This page lists four items: two conical cup wheels (type 11) at 110 mm and 125 mm, and two cylindrical cup wheels (type 6) at 80 mm in grits 36 and 80.

The catalogue places it in the Performance Line SG and describes it as a cup wheel for steel and stainless steel (INOX) with high grinding performance and good tool life (manufacturer-stated).

It is listed as suitable for chamfering, deburring, surface grinding and work on weld seams (manufacturer-stated).

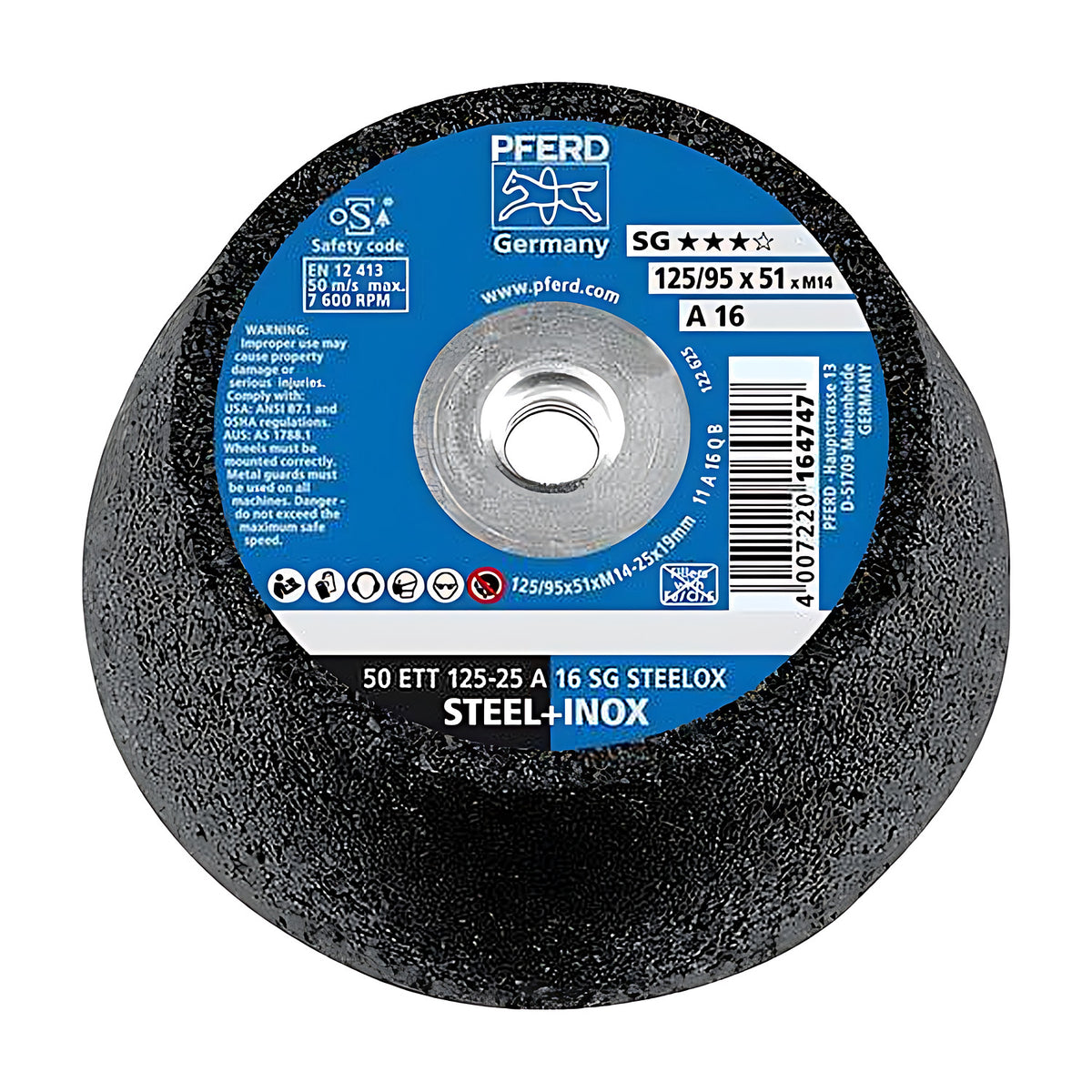

The fitting differs by item: the 110 mm conical wheel and both 80 mm cylindrical wheels have a 22.23 mm bore, while the 125 mm conical wheel has an M14 thread.

Where this product is used

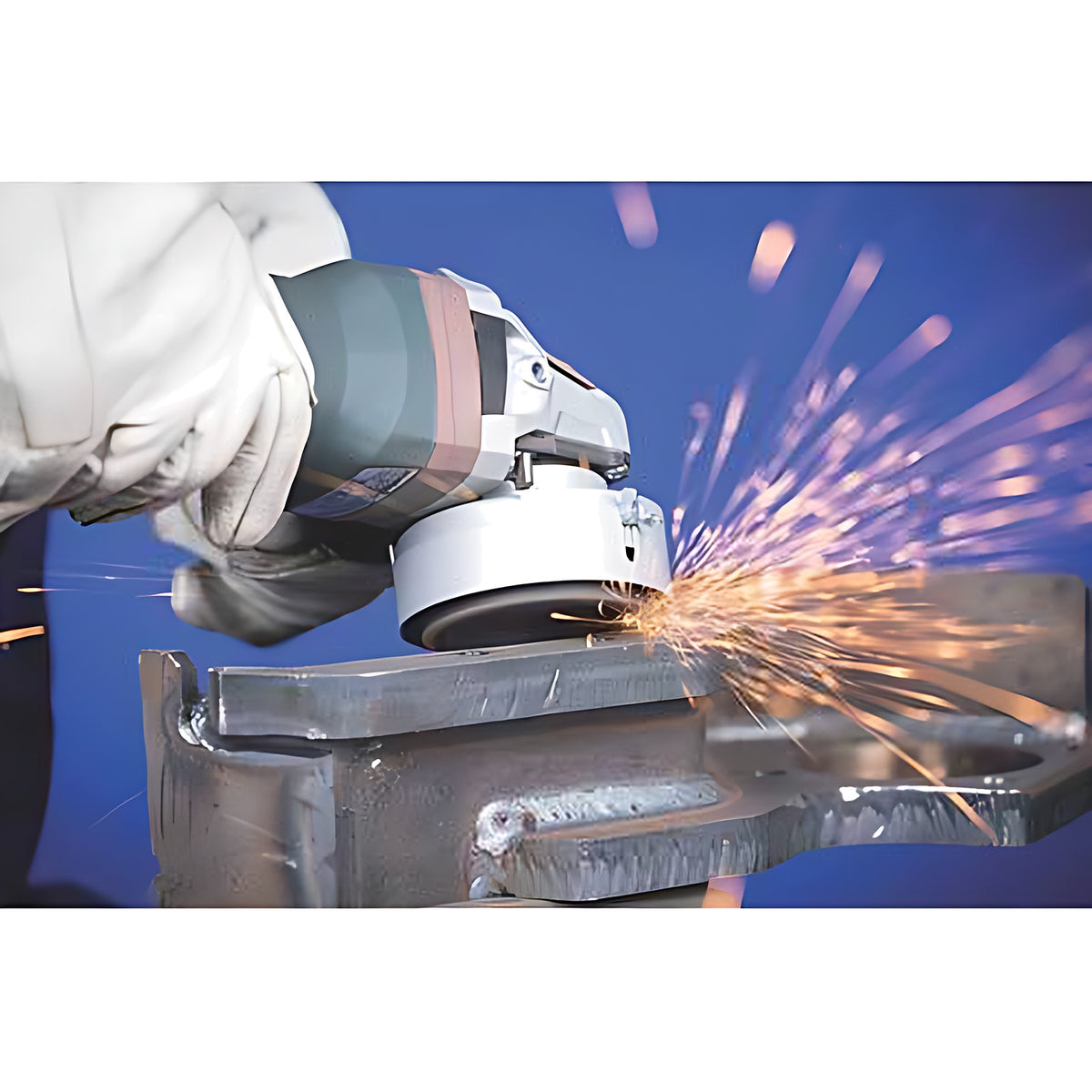

• Surface grinding and work on weld seams on steel and stainless steel (INOX), with the grit 16 wheels (manufacturer-stated)
• Chamfering on steel and stainless steel (INOX), with grit 24 in the catalogue selection table (manufacturer-stated)
• Deburring on steel and stainless steel (INOX), with grit 36 or 80 in the catalogue selection table (manufacturer-stated)

Features

• Abrasive code A, grits 16, 36 and 80 (manufacturer-stated)
• Conical cup wheels (ETT type 11) 110 mm and 125 mm; cylindrical cup wheels (ETT type 6) 80 mm (manufacturer-stated)
• Maximum speed 11,900 rpm (80 mm), 8,600 rpm (110 mm) and 7,600 rpm (125 mm) (manufacturer-stated)
• High grinding performance and good tool life (manufacturer-stated)

Common specifications

Key specifications

Each item number is a separate design, size and grit. The store title and options call this range flared conical, but items 63417122 and 63418702 are cylindrical cup wheels (type 6) in the catalogue.

Selecting the right option

Match the fitting (22.23 mm bore or M14 thread) to your angle grinder, and choose the grit for the job: the catalogue selection table gives A 16 for surface grinding and weld seams, A 24 for chamfering and A 36 or 80 for deburring. Never exceed the maximum speed printed for the item. The catalogue says tools with bonded abrasives (cup wheels) carry the EN 12413 number and the oSa mark, and that hand-held cup wheels in bond type B must not be used after the expiry date on the label, so check the label before use (manufacturer-stated).
