Mitutoyo QM-Height 350mm Height Gauge, Air
Out of stock
The Mitutoyo QM-Height is a high-precision ABSOLUTE digital height gauge for toolrooms and quality control. Both models here have built-in air suspension and come in two sizes: a 350mm (14") slider stroke that measures from 0 to 465mm, and a 600mm (24") slider stroke that measures from 0 to 715mm with the probe at the highest position.
The accuracy at 20°C is ±(2.4 + 2.1L/600) µm, where L is the measuring length in mm. Repeatability is up to 1.8µm using the 5mm ball probe. Air suspension has a pump that helps you reposition the gauge on a surface plate. Do not measure while the pump is running. Use a surface plate of JIS grade 1 or better. The tolerance screen shows GO and NG at a glance. Batteries last about 1200 hours without air suspension and about 90 hours with it.
Where this product is used
- High-accuracy height, step and width measuring on a surface plate
- Measuring inside and outside diameters and circle pitch
- Scanning for maximum and minimum heights
- Pass and fail checks against set tolerances
Features
- ABSOLUTE electromagnetic induction scale that keeps its origin after power-up
- Accuracy of ±(2.4 + 2.1L/600) µm at 20°C
- Resolution down to 0.001mm or .00005"
- Built-in air suspension for moving the gauge over a surface plate
- GO and NG tolerance judgement shown by LED lights and symbols
- Large LCD with back light and icon keys
- Digimatic and USB data output as standard
- Probe calibration block, 5mm stepped probe and 4 AA batteries supplied
- About 1200 hours of battery without air suspension and about 90 hours with it
Key specifications
| Specification | Detail |
|---|---|
| Brand | Mitutoyo |
| Series | QM-Height 518 |
| Type | ABSOLUTE digital height gauge with air suspension |
| Slider stroke | 350mm (14") or 600mm (24") |
| Measuring range | 0-465mm or 0-715mm with the probe at the highest position |
| Resolution | 0.001mm / 0.005mm, .00005" / .0001" / .0002" |
| Accuracy at 20°C | ±(2.4 + 2.1L/600) µm, L in mm |
| Repeatability | Up to 1.8µm with the 5mm ball probe |
| Perpendicularity | 7µm (350mm), 12µm (600mm) |
| Measuring force | 1.5 ± 0.5N |
| Mass | 26kg (350mm), 30kg (600mm) |
Supplied with
- QM-Height gauge
- Probe diameter calibration block
- Stepped probe, 5mm
- 4 AA batteries
- Not included: AC adapter (optional)
Choosing the right option
| Option | Part number | SKU |
|---|---|---|
| 0 to 465mm (350mm/14") | 518-245 | A0211412 |
| 0 to 715mm (600mm/24") | 518-247 | A0211413 |
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details

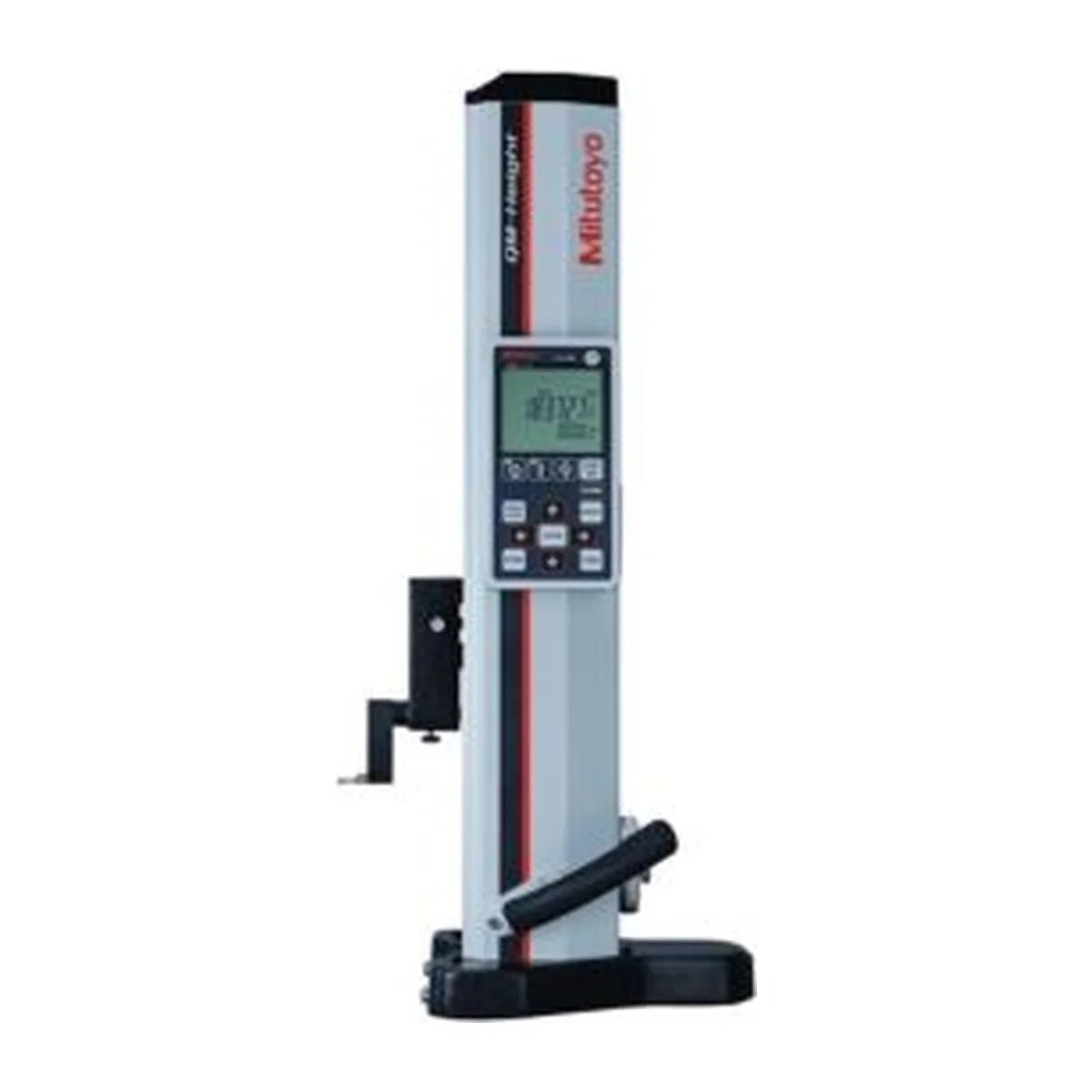

Mitutoyo QM-Height High-performance Height Gauge (Series 518): 0 to 465mm (350mm/14")
SKU: A0211412 | Model: 518-245
The 518-245 model has a 350mm (14") slider stroke and measures from 0 to 465mm with the probe at the highest position. Its perpendicularity is 7µm and it weighs 26kg. It has built-in air suspension, Digimatic and USB data output, and comes with 4 AA batteries, a probe calibration block and a 5mm stepped probe.
