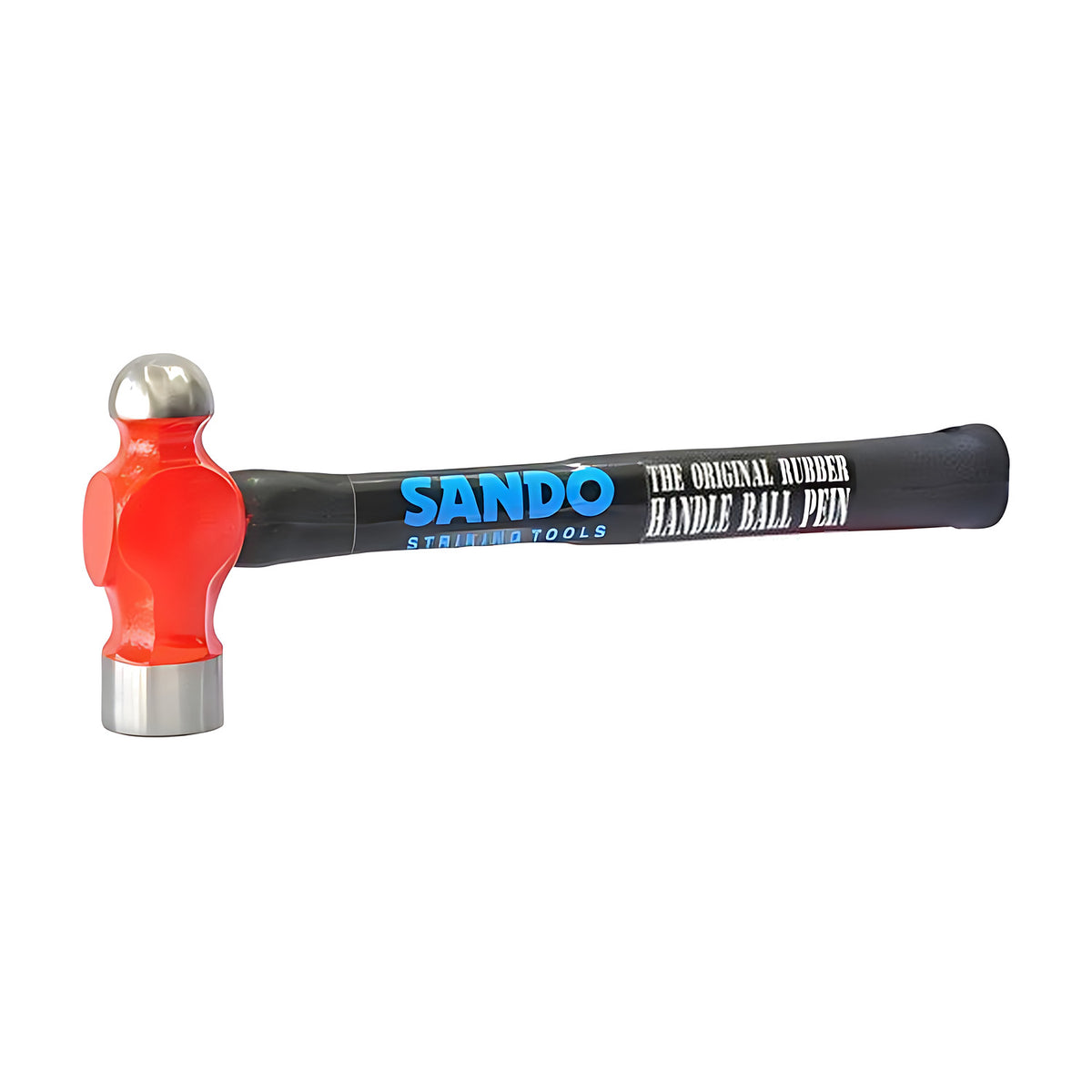

Sando SDSS700GRBP Hard Face Ball Pein Hammer, 0.7 kg, 356 mm Handle

Sando ball pein hammers use a British pattern head with a precision ground striking face and pein, built on the same unbreakable rubber-moulded handle as the Sando sledge range (manufacturer-stated). Sando describes the handle as a series of high tensile spring steel rods with very strong, abrasion-resistant rubber moulded around them under a high compression factor, and says the head is vulcanised to the rubber during moulding and secured to the rods by a positive locking plate (manufacturer-stated).

This listing has two variants on a 356 mm (14 in) handle with four steel rods: SDSS700GRBP at 0.7 kg (1.5 lb), which Sando marks as new, and SDBP/2-14 at 0.9 kg (2 lb) (manufacturer-stated).

Where this product is used

• Industries Sando lists for its ball pein hammers: steel fixing, light engineering, heavy engineering, precision engineering and automotive engineering (manufacturer-stated).
• Also listed by Sando: auto body repair, metal forming, peening of rivets and metal, and gasket making (manufacturer-stated).

Features

• British pattern head, precision ground for accurate striking (manufacturer-stated)
• Precision ground striking face and pein (manufacturer-stated)
• Head faces induction hardened to 50-58 HRC (manufacturer-stated)

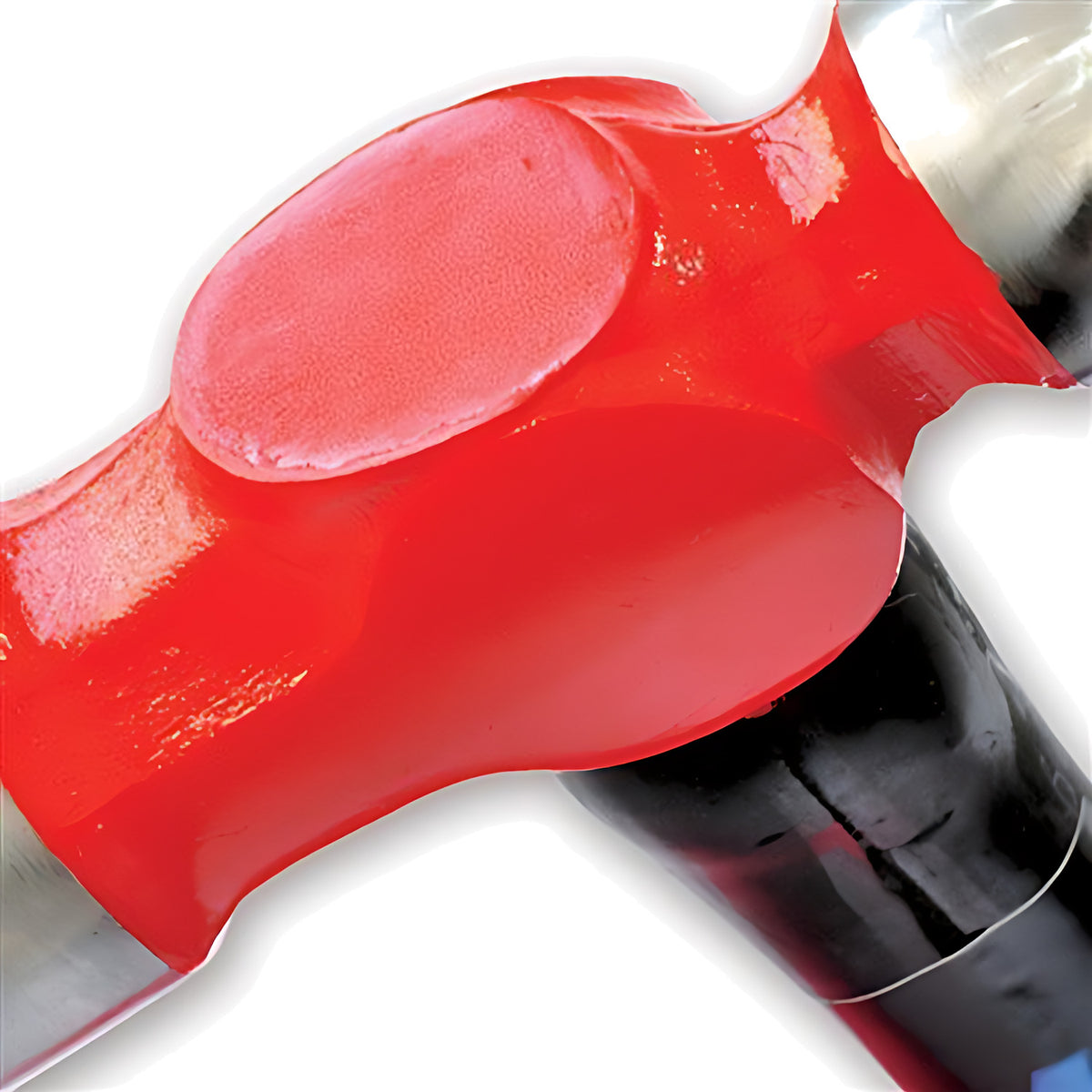

• Red head identifies a hard face (face hardened to 50-58 HRC) at a glance (manufacturer-stated)
• Handle core of high tensile steel rods moulded in abrasion-resistant rubber, so the handle is unbreakable (manufacturer-stated)
• Positive locking plate holds the head to the handle so the head will not separate (manufacturer-stated)
• Head conforms to ASME/ANSI, BS876 and ISO15601 specifications (manufacturer-stated)

Common specifications

Key specifications

Weights, handle lengths and rod counts are taken from the Sando product brochure (2022) part number table. The brochure notes that product specifications can change without notice, so confirm critical dimensions before ordering.

Selecting the right option

Both variants have the same 356 mm (14 in) handle, so the choice is head weight: 0.7 kg (1.5 lb) is the lighter head and 0.9 kg (2 lb) the heavier. For heavier work see the Sando club and sledge hammers linked below.

Related products

Other Sando hammers: Sando Hard Face Club Hammer With Unbreakable Handle, Sando Hard Face Sledge Hammer With Unbreakable Handle and Sando Sledge Hammer Soft Face / Normalised Steel.
